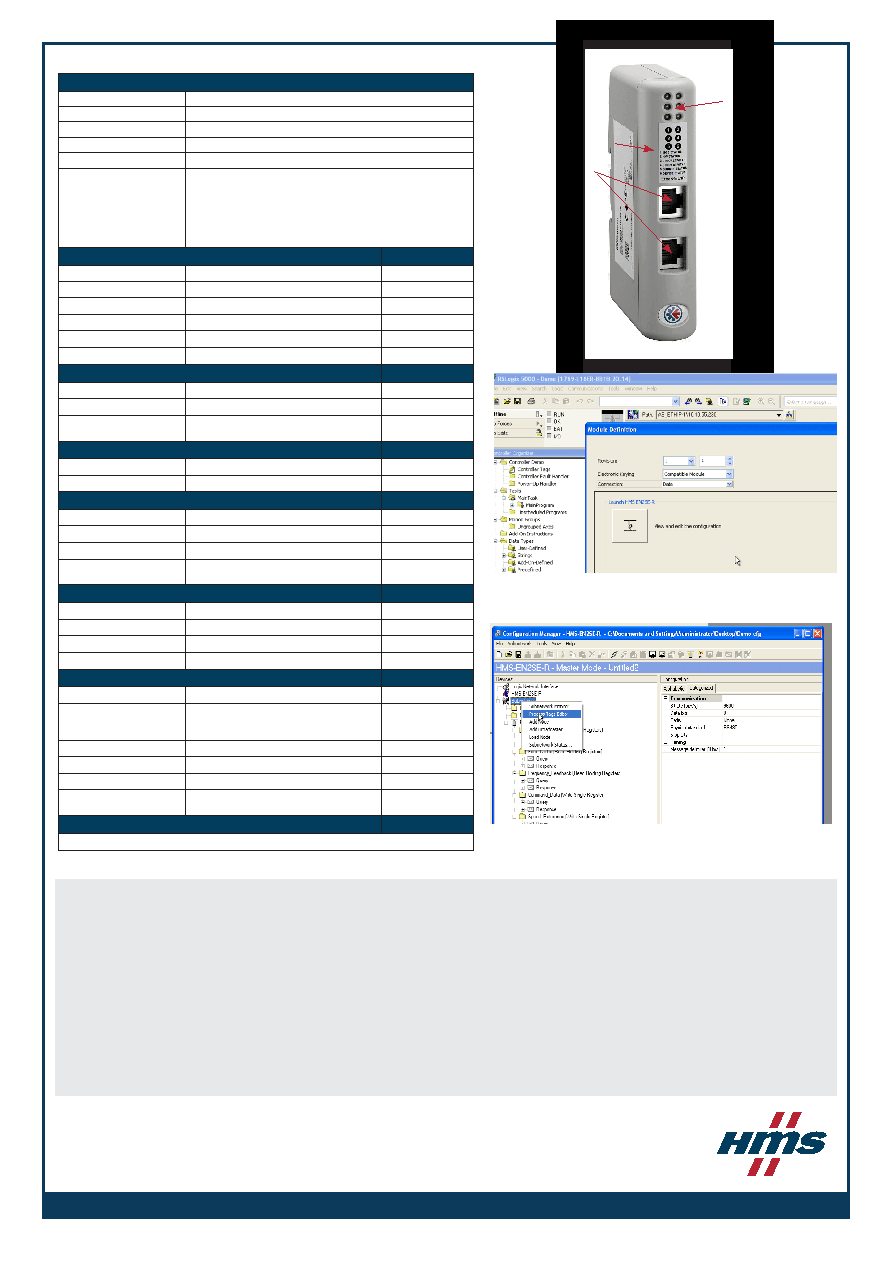

TECHNICAL SPECIFICATIONS

Power connector

2-pole Phoenix plug

DIN rail connector

with PE

Status LEDs

Network connectors

Configuration switches

(behind lid)

EtherNet/IP io Serial Linking Device

Protocol RS232/422/485, Modbus RTU and DF1

Max stations 31 (with RS485/422)

Baud rate 1,2-57,6 kbit/s

Physical standards One RS232/422/485 connector and two RJ45 connectors

I/O Data Max. 500 input bytes, 496 output bytes.

Modbus Commands 0x01 Read Coils, 0x02 Read Discrete Inputs, 0x03 Read Holding Registers,

0x04 Read Input Registers, 0x05 Write Single Coil, 0x06 Write Single Register,

0x07 Read Exception Status, 0x08 Diagnostics, 0x0B Get Comm Event Ctr, 0x0C

Get Comm Event Log, 0x0F Write Multiple Coils, 0x10 Write Multiple Registers, 0x11

Report Slave ID, 0x14 Read File Record, 0x15 Write File Record, 0x16 Mask Write

Register, 0x17 Read/Write Multiple Registers, 0x18 Read FIFO Queue

Customized commands can be created (in the Configuration Manager)

Technical Details

Standard

Weight 150 g, 0,33 lb

Dimensions (L•W•H) 120•75•27 mm, 4,72•2,95•1,06”

Protection class IP20, NEMA rating 1

Enclosure material PC ABS, UL 94

Installation position Any

Mounting DIN rail (35•7,5/15)

EN 50022

Certifications

UL File number: E203225

UL 508 ind. Cont. Eq.

Hazardous Locations Class 1, Division 2, Groups A, B, C and D, T4

ISA 12.12.01

CE 2014/30/EU

EN 61000-6-4

EN 61000-6-2

Electrical Characteristics

Power 24 VDC +/- 10 %

Current consumption Max 300 mA, Typical 100 mA

Hardware Characteristics

Reverse voltage protection Yes

Short circuit protection Yes

Galvanic isolation on subnetwork Yes

EN 60950-1

MTTF >550 000 h

Telcordia Issue 2, Method

1 Case 3 at 30 oC

Environmental Characteristics

Operating temp 0 to 55 oC, 32 to 131 oF

Storage temp -40 to 85 oC, -40 to 185 oF

Relative Humidity 0-95 % non condensing

Installation altitude Up to 2 000 m

Immunity and emission for industrial environment

Electrostatic discharge +/- 4 kV

EN 61000-4-2

Electro magnetic RF fields 10 V/m 80 MHz - 1 GHz

3 V/m 1,4 GHz - 2,0 GHz

1 V/m 2,0 GHz - 2,7 GHz

EN 61000-4-3

Fast Transients +/- 1 kV

EN 61000-4-4

Surge protection +/- 1 kV

EN 61000-4-5

RF conducted interference 10 V/rms

EN 61000-4-6

Emission (at 10 m) 40 dB 30 MHz - 230 MHz

47 dB 30 MHz - 1 GHz

CISPR 16-2-3

Single Pack Accessories

Installation sheet • Dsub with screw terminals for subnetwork

The configuration is integrated into Rockwell Studio5000. With a click

of the mouse, you start the configurator for the Linking Device.

By using the Process Tags Editor, you can save yourself a lot of work by

letting the software automatically create process tags.
