AD629

Rev. B | Page 4 of 16

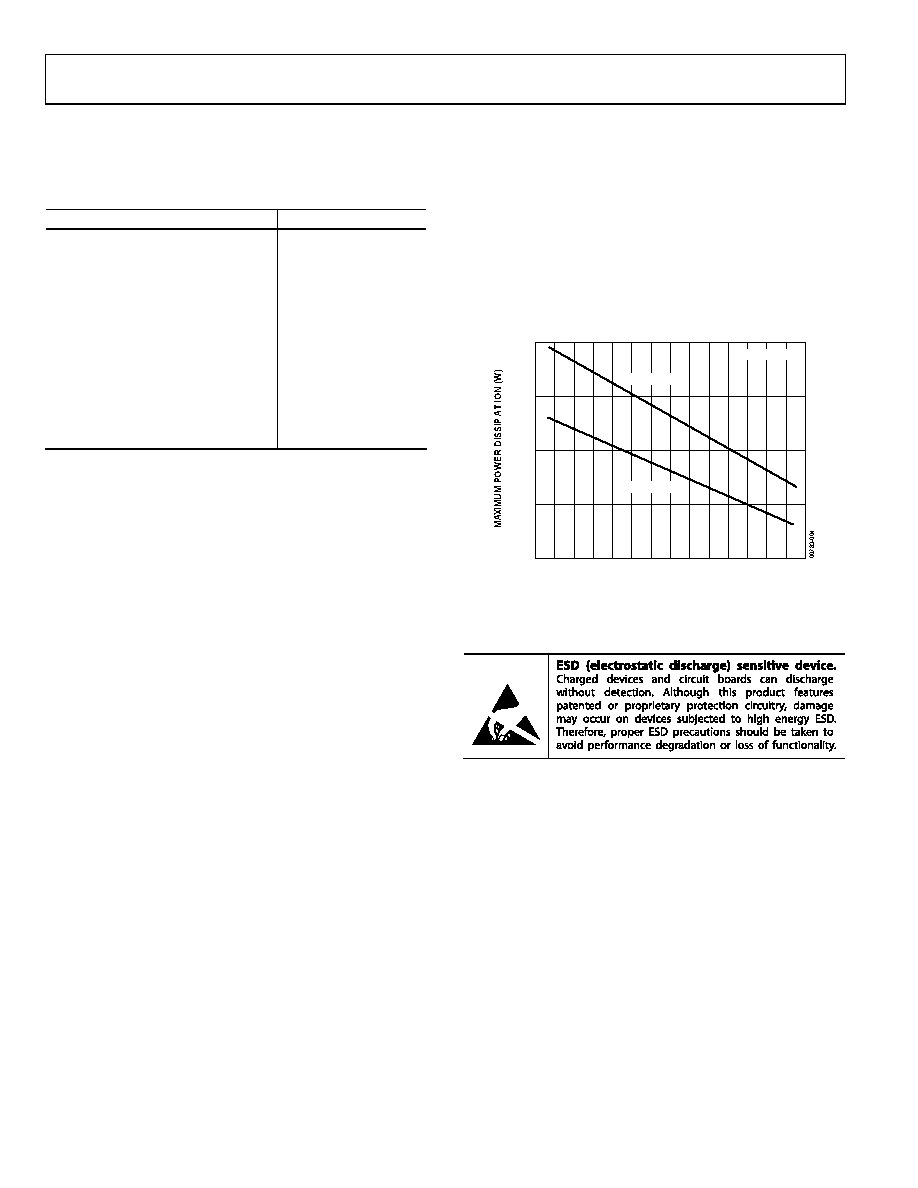

ABSOLUTE MAXIMUM RATINGS

Table 2.

Parameter

Rating

±18 V

Internal Power Dissipation1

8-Lead PDIP (N)

See Figure 4

8-Lead SOIC (R)

See Figure 4

Input Voltage Range, Continuous

±300 V

Common-Mode and Differential, 10 sec

±500 V

Output Short-Circuit Duration

Indefinite

Pin 1 and Pin 5

Maximum Junction Temperature

150°C

Operating Temperature Range

−55°C to +125°C

Storage Temperature Range

−65°C to +150°C

Lead Temperature (Soldering 60 sec)

300°C

Stresses above those listed under Absolute Maximum Ratings

may cause permanent damage to the device. This is a stress

rating only; functional operation of the device at these or any

other conditions above those indicated in the operational

section of this specification is not implied. Exposure to absolute

maximum rating conditions for extended periods may affect

device reliability.

AMBIENT TEMPERATURE (°C)

2.0

1.5

1.0

0.5

0

–50 –40 –30 –20 –10 0

10 20 30 40 50 60 70 80 90

8-LEAD SOIC

8-LEAD PDIP

Figure 4. Maximum Power Dissipation vs. Temperature for SOIC and PDIP

ESD CAUTION
