07/26/2016

216558 - HPL-ED2016 V24.0 EN

1 / 3

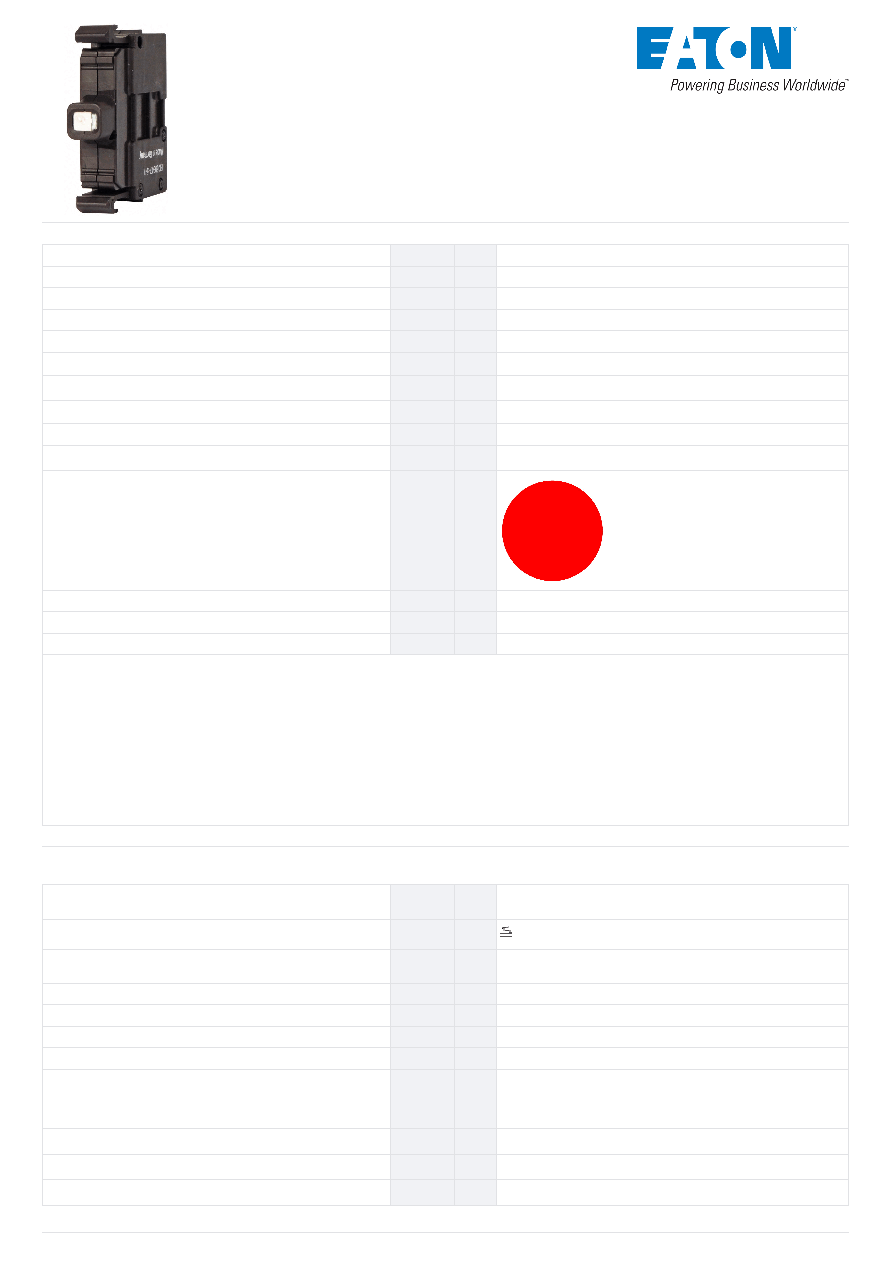

LED￿element,￿red,￿front￿mount,￿12-30VAC/DC

Part￿no.

M22-LED-R

Article￿no.

216558

Catalog￿No.

M22-LED-RQ

Delivery￿programme

Product range





RMQ-Titan (drilling dimensions 22.5 mm)

Basic function





LED elements

Single unit/Complete unit





Single unit

Fixing





Front fixing

Connection technique





Screw terminals

Rated operational voltage

Ue

V

12 - 30 V AC/DC, 50/60 Hz

Rated￿operational￿current

Ie

mA

8 - 15

Power consumption

Pmax.

W

0.26







at 24 V

Colour



















Red

Degree of Protection





IP20

Connection to SmartWire-DT





no

Notes

For indicator lights, illuminated pushbutton actuators, and illuminated selector switch actuators, the following applies:

M22...-R only in combination with M22-LED...-R

M22...-G only in combination with M22-LED...-G

M22...-W only in combination with M22-LED...-W

M22...-Y only in combination with M22-LED...-W

M22…-B in combination with M22-LED…-W or M22-LED…-B

Technical￿data

General

Standards





IEC/EN 60947

VDE 0660

Operating torque (screw terminals)



Nm

0.8

Climatic proofing





Damp heat, constant, to IEC 60068-2-78

Damp heat, cyclic, to IEC 60068-2-30

Ambient temperature







Open



°C

-25 - +70

Storage



°C

- 40 - + 80

Mounting position





As required

Mechanical shock resistance



g

30

Shock duration 11 ms

Sinusoidal

according to IEC 60068-2-27

Terminal capacities



mm2



Solid



mm2

0.75 - 2.5

Stranded



mm2

0.5 - 2.5
