CC1010
SWRS047
Page 6 of 152

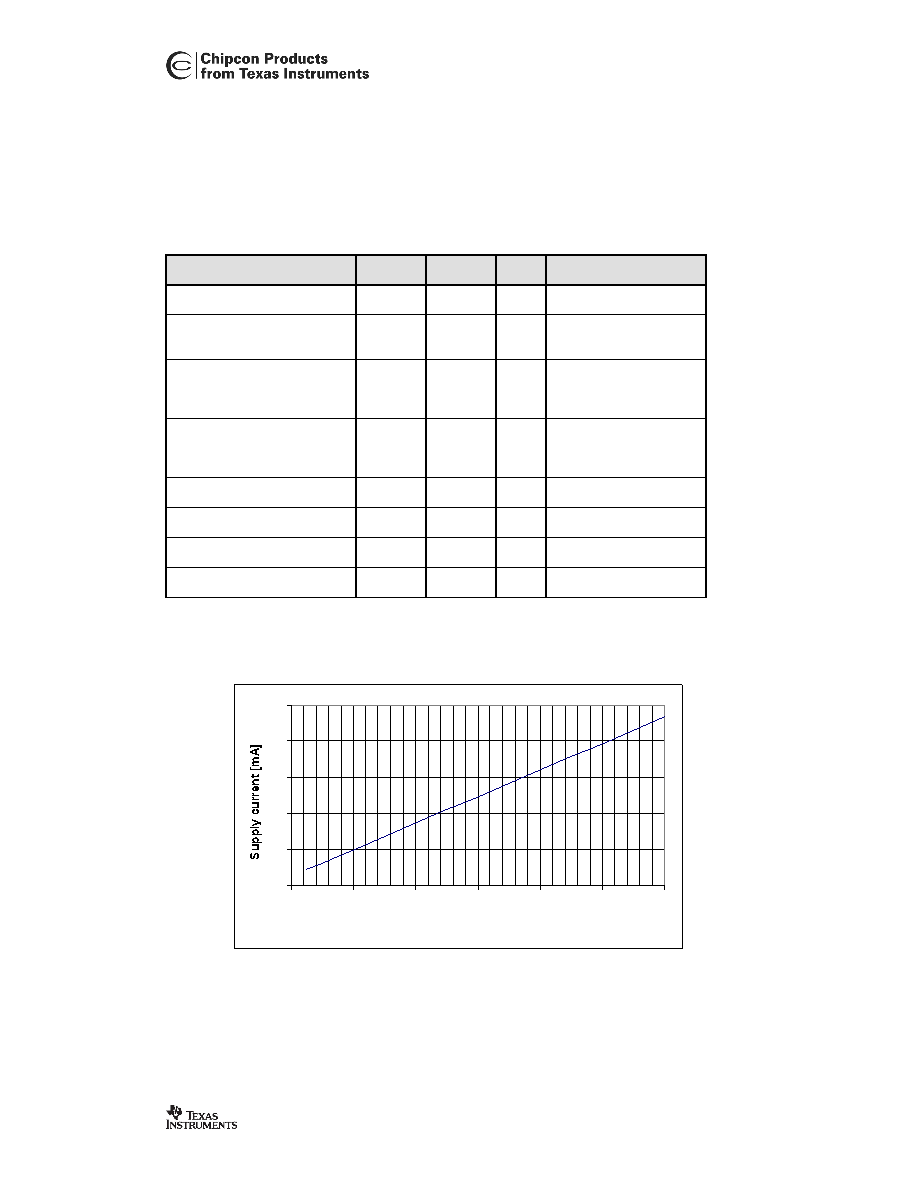

4. DC Characteristics
The DC Characteristics of
CC1010 are listed in Table 3 below.
Tc = 25
°C, VDD = 3.3 V if nothing else stated
Digital Inputs/Outputs
Min
Max
Unit
Condition
Logic "0" input voltage
0
0.3*VDD
V
Logic "1" input voltage
0.7*VDD
VDD
V
Logic "0" output voltage
0
0.4
V
Output current -2.0 mA,
ports P0.3-P0.0, P1.7-
P1.0, P2.7-P2.4, P2.2-
P2.0
Logic "1" output voltage
2.5
VDD
V
Output current 2.0mA,
ports P0.3-P0.0, P1.7-
P1.0, P2.7-P2.4, P2.2-
P2.0
Logic "0" output voltage
0
0.4
V
Output current -8.0 mA,
port P2.3
Logic "1" output voltage
2.5
VDD
V
Output current 8.0mA,
port P2.3
Logic "0" input current
NA
-1
µA
Input signal equals GND
Logic "1" input current
NA
1
µA
Input signal equals VDD
Table 3. DC Characteristics
0
5
10
15
20
25
04
8
12
16
20
24
Frequency [MHz]
Figure 1. Typical CPU core supply current vs. clock frequency
