Low Profile Wideband Rail Antenna

Rail Antenna

Low Profile Wideband Rail Antenna

Rail Antenna

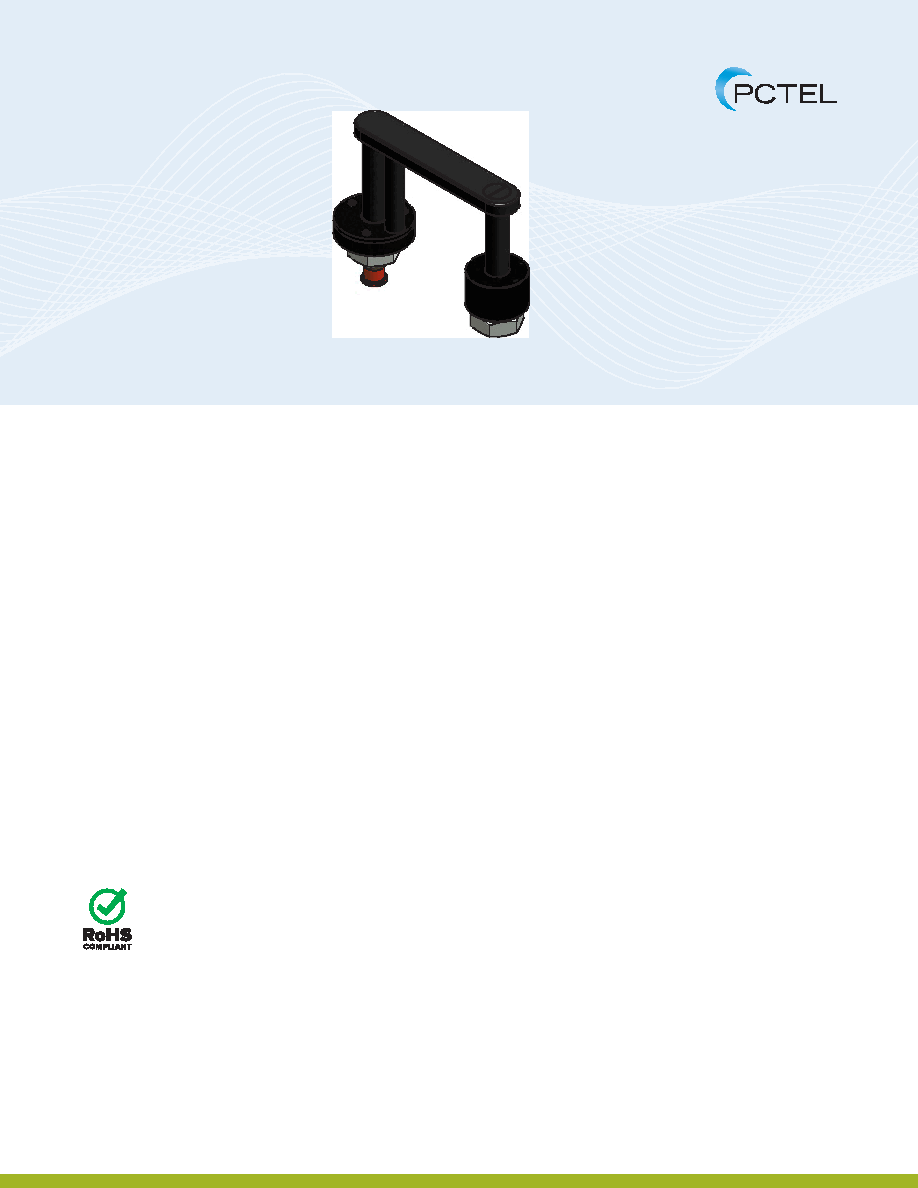

The rugged PCTEL® PCT-RSA directional antennas are designed to be roof mounted on

locomotive, crew car, or other railroad vehicles exposed to severe vibration and harsh

environmental conditions.

Features

• Versatile – may be mounted on locomotive, crew car, or other rugged vehicles

• Rugged – hard coat anodized fully welded aluminum construction

• Low profile – approximately 4.4 inches tall

• Field tunable – optimizes performance in various mounting conditions

• Easy of installation – Two-hole stud mounting

• AAR compliant design

Applications

• Roof mounting on locomotives, crew cars and other railroad vehicles

Certifications

2

SPECIFICATIONS

> pctel.com/antenna-products

ISO-VIEW

SCALE 1 : 2

A

A

B

B

1

1

2

2

3

3

4

4

SEE

COMPONENT

PRINTS

SEE COMPONENT

PRINTS

IP

MATERIAL:

CHECKED

DRAWN

FINISH:

11/15/2016

DATE

PCT-RSA-220

PCTEL, INC.

471 BRIGHTON DRIVE

BLOOMINGDALE, IL 60108

PH. 630-372-6800

FAX. 630-372-8077

B

SCALE

SHEET

1 OF 1

DRAWING NO.

DESCRIPTION

1:1

11/15/2016

SIZE

FOR TOLERANCES NOT SPECIFIED USE:

UNLESS OTHERWISE SPECIFIED

DIMENSIONS ARE IN MILLIMETERS

CE

[X.X mm

.3 mm]

ANGULAR

 1

DATE

[X mm

3 mm]

[ X.XX mm

.13 mm]

VHF220 MHZ PCT-RSA ANTENNA

THE INFORMATION AND/OR DRAWINGS CONTAINED IN THIS DOCUMENT IS

CONFIDENTIAL AND PROPRIETARY TO PCTEL, INC. AND MAY NOT BE USED,

REPRODUCED, IN WHOLE OR IN PART, OR MODIFIED IN ANY WAY WITHOUT

THE EXPRESS WRITTEN PERMISSION OF AN AUTHORIZED

REPRESENTATIVE OF PCTEL, INC.

SUPPLIER PRINT ACCEPTANCE:

[ ] Accept drawing/specification:

No changes needed:

[ ] This part is RoHS compliant

[ ] This part is REACH compliant

[ ] Accept drawing/specification.

Notes/Mark-ups added

[ ] Cannot accept drawing/spec.

Notes/Mark-ups added

Supplier Projected Outgoing Quality:

SIGMA LEVEL :_________or PPM:_______

Signature__________________Date:_______

THIRD ANGLE PROJECTION

PCTEL PROPRIETARY DATA

NOTES: UNLESS OTHERWISE SPECIFIED

1. A (REF) DIMENSION IS FOR INFORMATION PURPOSES

ONLY AND NO TOLERANCE IS IMPLIED.

REVISION HISTORY

REV

DESCRIPTION

DATE

APPROVED

1

VHF 220 MHZ PCT-RSA ANTENNA

2/12/2016

CE

(

21.01)

(

22.40)

(171.38)

(195.40)

(

64.00)

(

49.80)

ANTENNA BASE

TAIL DIELECTRIC

HEXNUT, THIN,

1-14 UNS 2B, SET SCREW

ADAPTER, N

STRAIGHT BULKHEAD

JACK TO JACK

CAP, PROTECTIVE,

CONNECTOR, TYPE N

PRODUCT LABEL
