Push-In Wire Connector

Specifications

Housing Material

: Polyamide 66 (PA66)

Current

: 30A, 24A

Voltage

: 600V, 450V

Working Temp

: 110°C

Wire Range

: 1 ~ 2.5mm2, #12-#22 AWG, Sol Cu

Stripping Length

: 11mm (0.43 Inch)

Connector Type

: Terminal

Insulator Colour

: Red

Termination Method

: Crimp

Important Notice : This data sheet and its contents (the “Information”) belong to the members of the Premier Farnell group of companies (the “Group”) or are licensed to it. No licence is granted

for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change

without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any

error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any

assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the

Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group’s liability for death or personal injury resulting from its negligence.

Multicomp is the registered trademark of the Group. © Premier Farnell plc 2012.

Description

Part Number

Connector, Push-In Wire, 2Way, Red

PC252X-R

Part Number Table

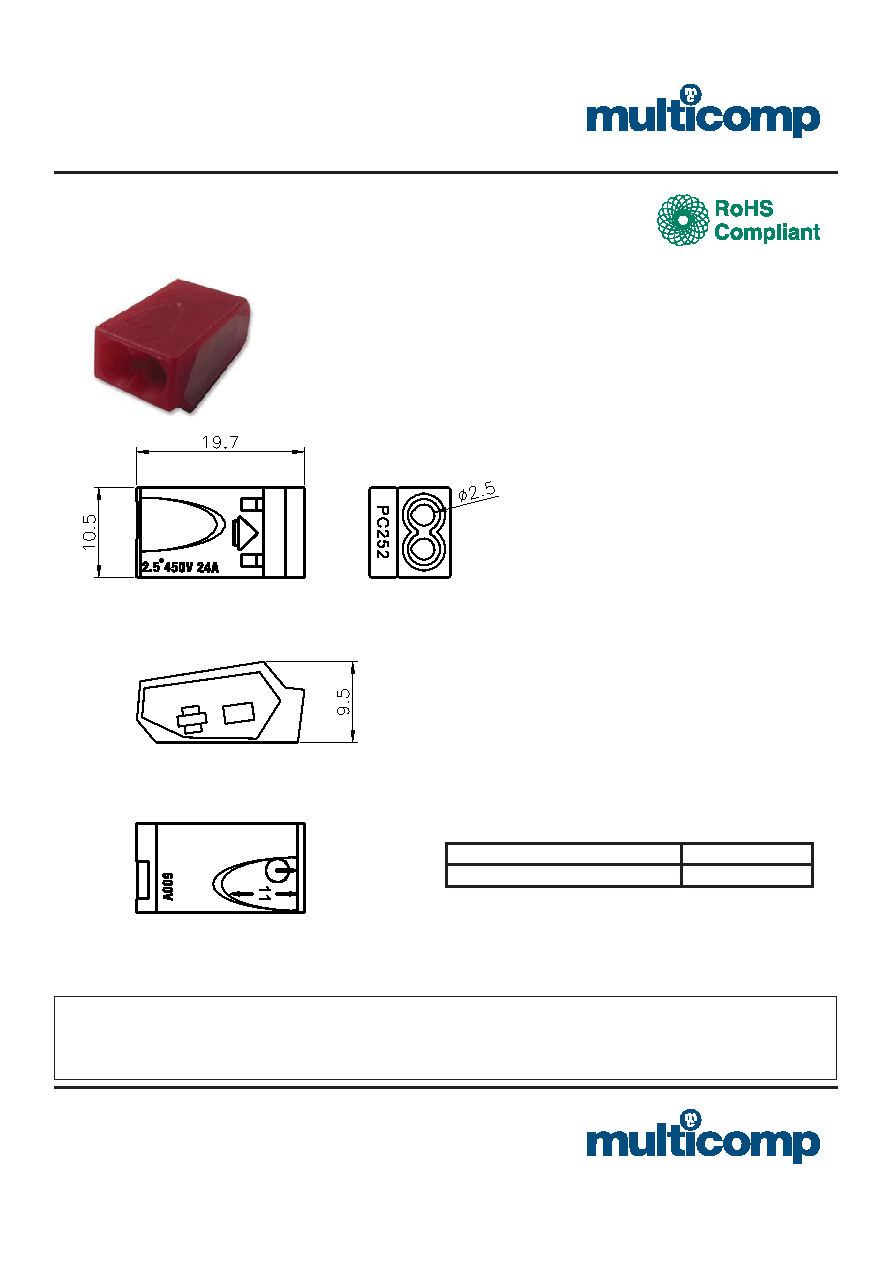

Dimensions : Millimetres

Unless Otherwise Stated: 0. = ±0.1mm

00. = ±0.2mm

000. = ±0.3mm
