Standard and Miniature Single Assembly

5-WAY® Binding Posts

5-WAY® Binding Posts have positive-stop captive

thumbnuts that allow space to make connections

yet reduce the likelihood of accidentally contacting

current carrying parts. They are available in red,

white, blue, yellow, black and green. BP31 fluted

nut types have insulating parts of Lexan® polycar-

bonate resin which has a higher DC insulation re-

sistance at all operating temperatures and signifi-

cantly lower capacitance which provides greater

resistance to high frequency leakage effects. All

others have nylon plastic per MIL-P20693A, Type

IV. Current carrying parts are gold, nickel or tin

plated brass for improved conductivity and corro-

sion resistance. Metal parts are recessed for user

and instrument protection and none touch the

mounting panel. All are available in single packs or

100-quantity bulk packs. They are Underwriters

Laboratories recognized components.

Standard Hex Nut and Fluted Nut Types - Rated

for 30 A, 1000 V working.

Miniature Fluted Nut Types - Rated for 15A,

1000 V working.

Standard

Standard

Miniature

Color

Plating on

Hex Nut

Fluted Nut

Fluted Nut

Plastic

Brass

Type**

Type**

Type**

Parts

Parts

BP30R

BP31R

BP21R

Red

Gold

BP30WT

BP31WT

BP21WT

White

Gold

BP30BL

BP31BL

BP21BL

Blue

Gold

BP30Y

BP31Y

BP21Y

Yellow

Gold

BP30B

BP31B

BP21B

Black

Gold

BP30GN

BP31DG

BP21GN

Green

Gold

** Type numbers given are for binding posts with gold plated brass parts. For nickel plated brass parts add

suffix N, for tin plated brass parts add suffix T; for example, BP30GNN (nickel) or BP30GNT (tin). Order

single pack quantities by adding suffix “-1 PKG”, for example BP21R-1 PKG; order bulk pack quantities

by adding suffix “-B PKG”, for example BP21R-B PKG.

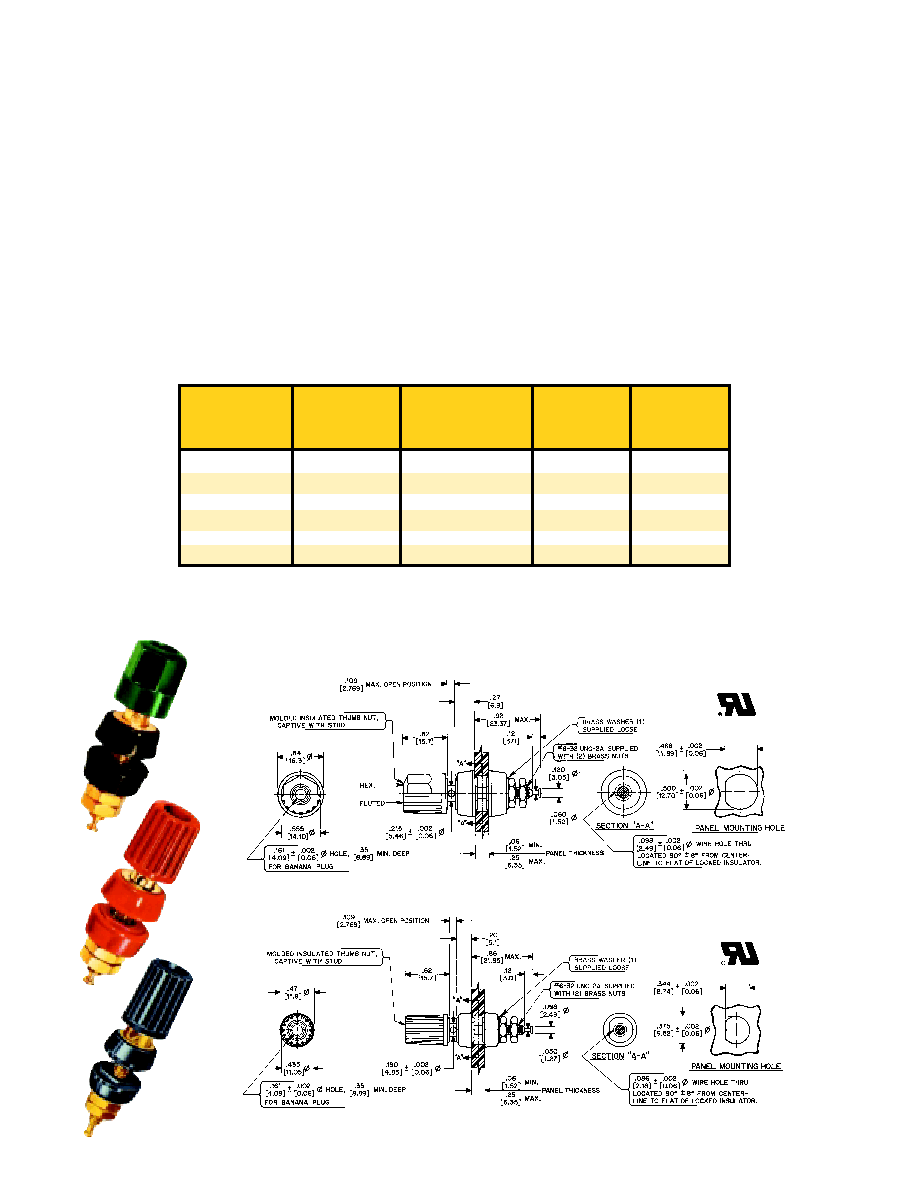

TYPES BP30 and BP31 DIMENSIONS

TYPE BP21 DIMENSIONS

*Lexan is a General Electric Trademark

BP30GN

BP31R

BP21B
