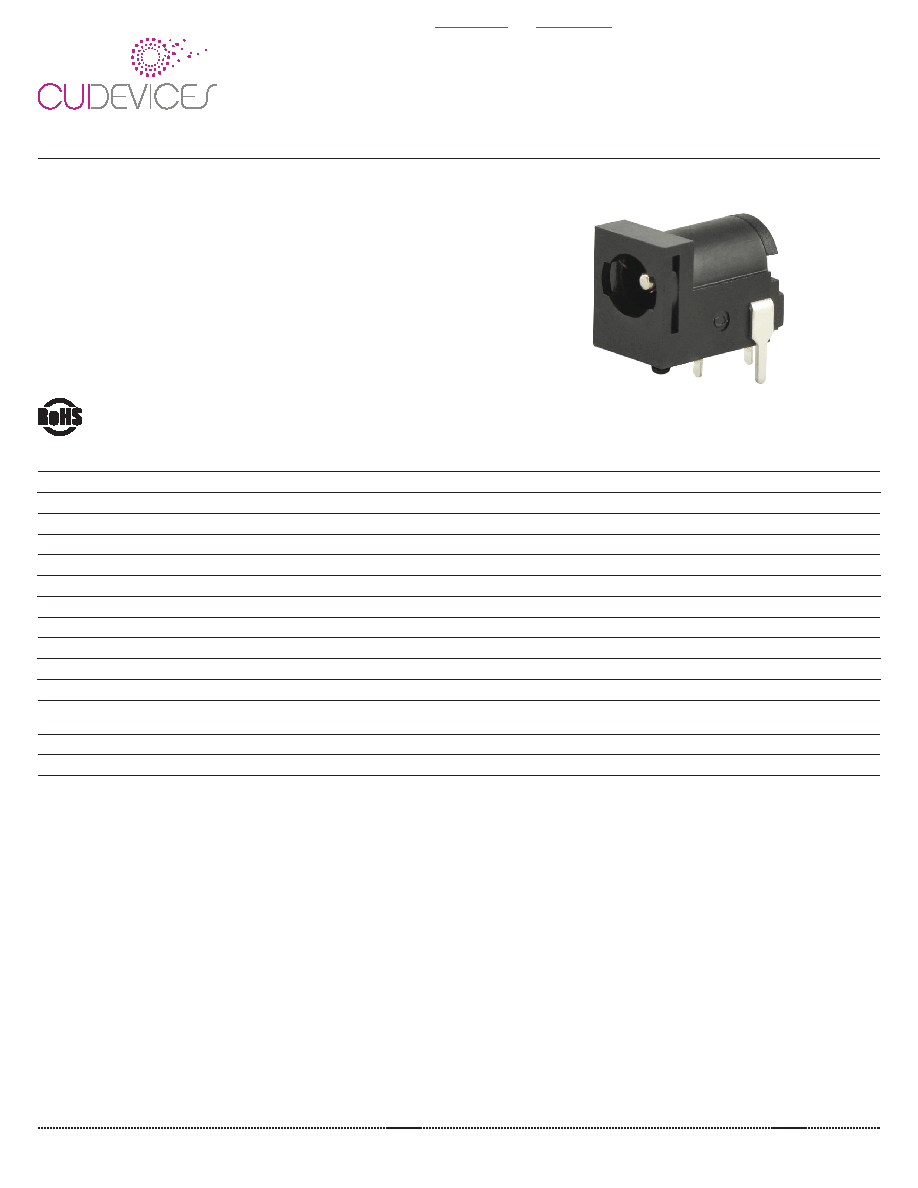

MODEL: PJ-059AH | DESCRIPTION: DC POWER JACK

cuidevices.com

FEATURES

• 2.0 mm center pin

• 5.0 A rating

• right-angle orientation

• through hole

• locking type

• tapered pins

SPECIFICATIONS

parameter

conditions/description

min

typ

max

units

rated input voltage

24

Vdc

rated input current

5.0

A

contact resistance

30

mΩ

insulation resistance

at 500 Vdc

100

MΩ

voltage withstand

for 1 minute

500

Vac

insertion/withdrawal force

0.3

3

kg

operating temperature

-25

85

°C

life

5,000

cycles

flammability rating

UL94V-0

RoHS

yes

SOLDERABILITY

parameter

conditions/description

min

typ

max

units

wave soldering

dipped in solder pot for 5 ±0.5 seconds

255

260

265

°C
