PLL502-02

Low Phase Noise VCXO (24MHz to 50MHz)

47745 Fremont Blvd., Fremont, California 94538 Tel (510) 492-0990 Fax (510) 492-0991 www.phaselink.com Rev 12/14/05 Page 4

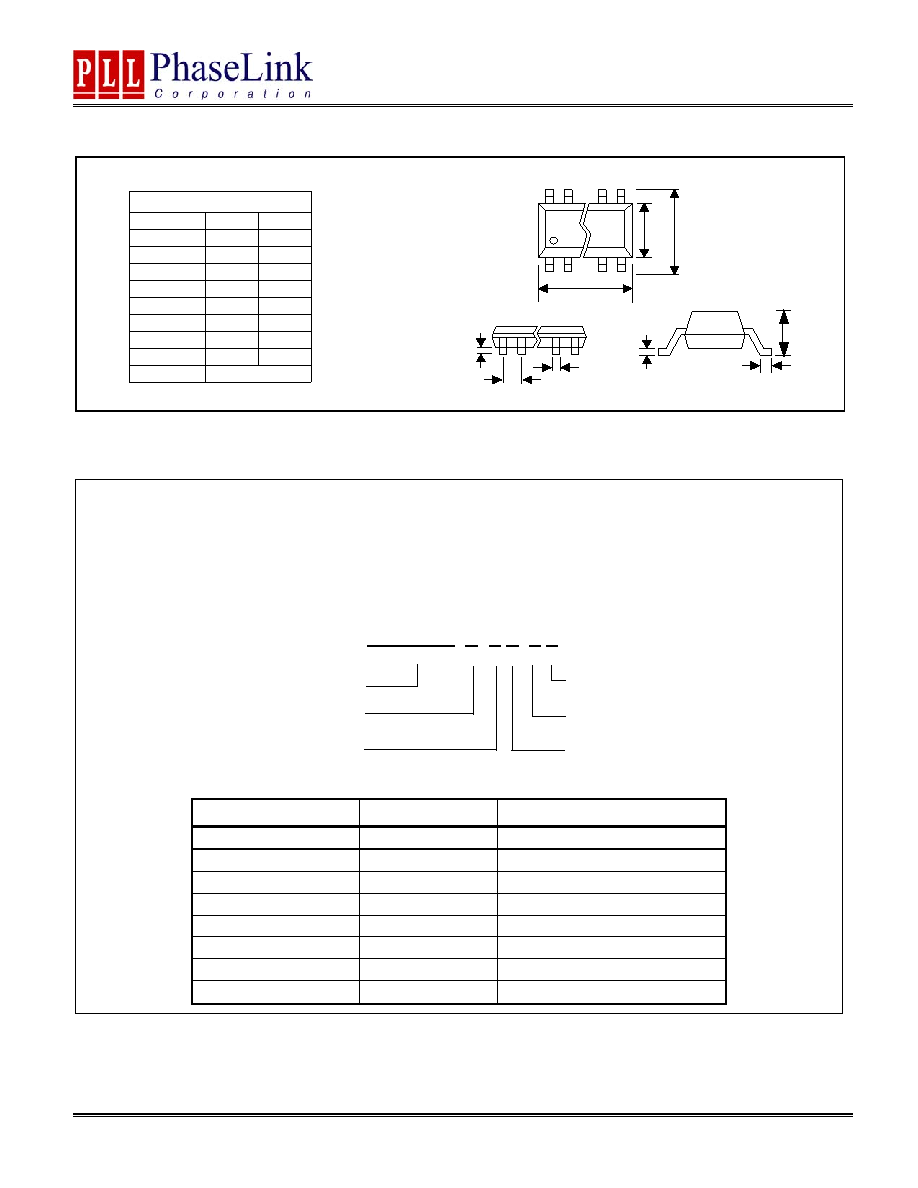

PACKAGE INFORMATION

C

L

A

EH

D

A1

e

B

8 PIN SOIC (in mm)

Symbol

Min.

Max.

A

1.47

1.73

A1

0.10

0.25

B

0.33

0.51

C

0.19

0.25

D

4.80

4.95

E

3.80

4.00

H

5.80

6.20

L

0.38

1.27

e

1.27 BSC

ORDERING INFORMATION

PhaseLink Corporation, reserves the right to make changes in its products or specifications, or both at any time without notice. The information fur-

nished by Phaselink is believed to be accurate and reliable. However, PhaseLink makes no guarantee or warranty concerning the accuracy of said

information and shall not be responsible for any loss or damage of whatever nature resulting from the use of, or reliance upon this product.

LIFE SUPPORT POLICY: PhaseLink’s products are not authorized for use as critical components in life support devices or systems without the ex-

press written approval of the President of PhaseLink Corporation.

For part ordering, please contact our Sales Department:

47745 Fremont Blvd., Fremont, CA 94538, USA

Tel: (510) 492-0990 Fax: (510) 492-0991

PART NUMBER

The order number for this device is a combination of the following:

Device number, Package type and Operating temperature range

PLL502-02 H S C X X

Order Number

Marking

Package Option

PLL502-02SC

P502-02SC

SOIC - Tube

PLL502-02SC-R

P502-02SC

SOIC - Tape and Reel

PLL502-02SCL

P502-02SCL

SOIC – Tube, GREEN

PLL502-02SCL-R

P502-02SCL

SOIC - Tape and Reel, GREEN

PLL502-02HSC

P502-02HSC

SOIC - Tube

PLL502-02HSC-R

P502-02HSC

SOIC - Tape and Reel

PLL502-02HSCL

P502-02HSCL

SOIC – Tube, GREEN

PLL502-02HSCL-R

P502-02HSCL

SOIC - Tape and Reel, GREEN

Optional High Drive

PART NUMBER

TEMPERATURE

C=COMMERCIAL,

I=INDUSTRIAL

PACKAGE TYPE

S=SOIC

NONE=NORMAL PACKAGE

L=GREEN PACKAGE

NONE= TUBE

R=TAPE AND REEL
