PLL520-05/-06/-07/-08/-09

Low Phase Noise VCXO with multipliers (for 100-200MHz Fund Xtal)

47745 Fremont Blvd., Fremont, California 94538 Tel (510) 492-0990 Fax (510) 492-0991 www.phaselink.com Rev 09/20/04 Page 1

FEATURES

• 100MHz to 200MHz Fundamental Mode Crystal.

• Output range: 100 – 200MHz (no multiplication),

200 – 400MHz (2x multiplier), 400 – 800MHz (4x

multiplier), or 800MHz – 1GHz (PLL520-09

TSSOP only, 8x multiplier).

• High yield design supports up to 2pF stray

capacitance at 200MHz.

• CMOS (Standard drive PLL520-07 or Selectable

Drive PLL520-06), PECL (Enable low PLL520-08

or Enable high PLL520-05) or LVDS output

(PLL520-09).

• Integrated variable capacitors.

• Supports 3.3V-Power Supply.

• Available in 16-Pin (TSSOP or 3x3mm QFN)

Note: PLL520-06 only available in 3x3mm.

Note: PLL520-07 only available in TSSOP.

DESCRIPTION

The PLL520-05/-06/-07/-08/-09 is a family of VCXO

ICs specifically designed to pull high frequency

fundamental crystals. Their design was optimized to

tolerate higher limits of interelectrode capacitance

and bonding capacitance to improve yield. They

achieve very low current into the crystal resulting in

better overall stability. Their internal varicaps allow

an on chip frequency pulling, controlled by the

VCON input.

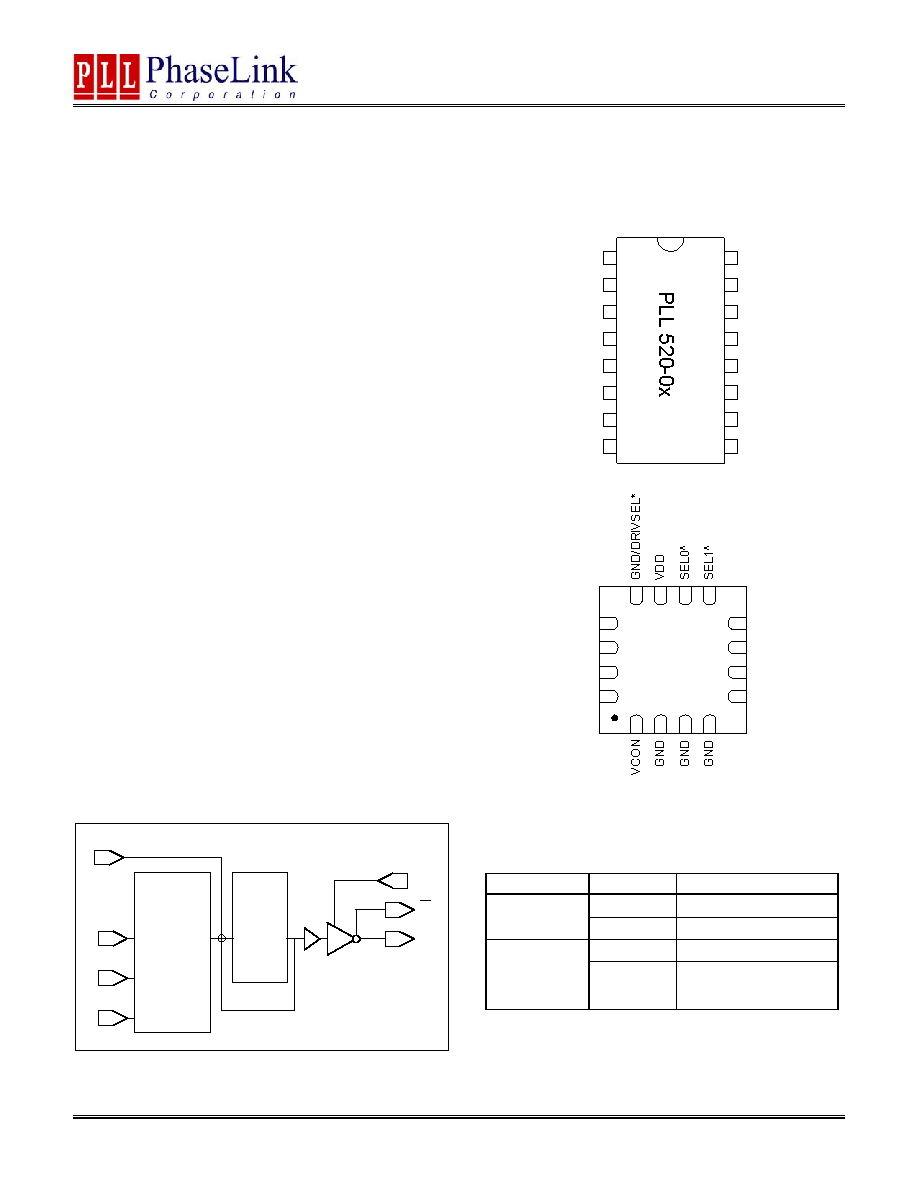

BLOCK DIAGRAM

PIN CONFIGURATION

(Top View)

^: Internal pull-up

*: PLL520-06 pin 12 is output drive select (DRIVSEL)

(0 for High Drive CMOS, 1 for Standard Drive CMOS)

OUTPUT ENABLE LOGICAL LEVELS

Part #

OE

State

0 (Default)

Output enabled

PLL520-08

1

Tri-state

0

Tri-state

PLL520-05

PLL520-06

PLL520-07

PLL520-09

1 (Default)

Output enabled

OE input: Logical states defined by PECL levels for PLL520-08

Logical states defined by CMOS levels for PLL520-05/-06/-

07/-09

XIN

XOUT

OE

Q

VCON

Q

PLL by-pass

SEL

PLL

(Phase

Locked

Loop)

Oscillator

Amplifier

w/

integrated

varicaps

1

2

3

4

5

6

7

8

VDD

9

10

11

12

13

14

15

16

XIN

XOUT

SEL3^

SEL2^

OE

VCON

GND

SEL0^

SEL1^

GND

CLKC

VDD

CLKT

GND

GND

P520-0x

GND

VDD

CLKT

CLKC

XOUT

XIN

SEL2^

OE

4

16

15

14

13

12

11

10

9

8

7

6

5

12

3
