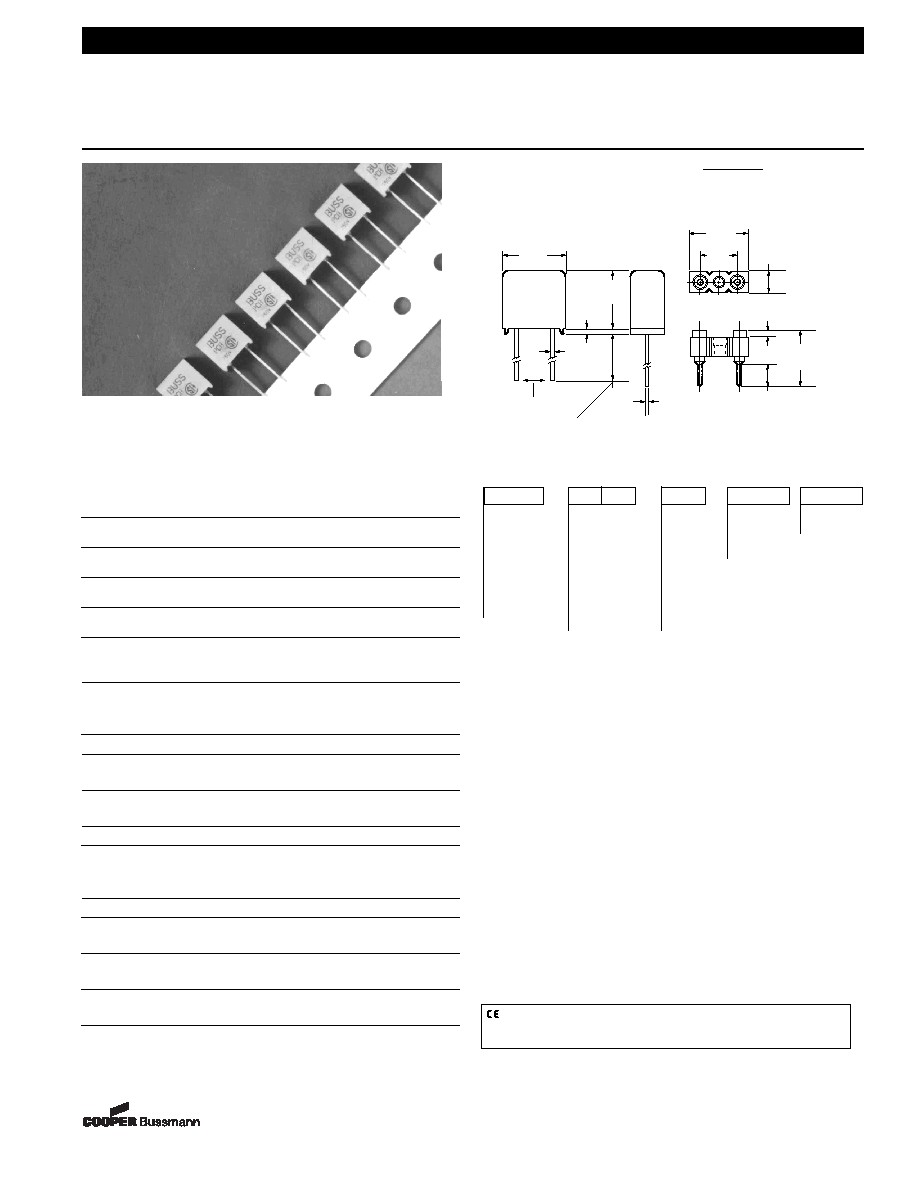

CATALOG SYMBOL: PCB, PCC, PCF, PCH, PCD, PCE,

PCG & PCI

PC-TRON SUBMINIATURE FUSES

Printed Circuit Board Fuses

PC-Tron®

PC-Tron® Subminiature Fuses

Series

Form No. PC-Tron Series

Page 1 of 2

BIF Doc #2034

Bussmann®

12-28-98

SB98107

Rev. A

BUSS

PC

250V

.350"

(8.89mm)

.015"

(0.38mm)

.20"

(5.08mm)

.200"

(5.08mm)

.300"

(7.62mm)

.095"

(2.41mm)

.030"

(2.41mm)

.12"

± .010"

(3.05mm

± 0.25mm)

.290"

(7.37mm)

.025"

(0.64mm)

.750" Full — .100" Short

(19.1mm)

(2.54mm)

.020"

(0.51mm)

.320"

(8.89mm)

Dimensional Data: All tolerances

Electrical Ratings

Catalog

AC

DC

Symbol

Amps

VAC

Interrupting

VDC

Interrupting

PCB, PCC,

0.5 - 2.5

250

50A at 250V

450

300 - 5900A

PCF & PCH

10kA at 125V

PCB, PCC,

2.6 - 3.0

250

50A at 250V

350

300 - 4400A

PCF & PCH

10kA at 125V

PCD, PCE,

5.0

125

10kA at 125V

250

300 - 4200A

PCG & PCI

The radial lead package of the PC-Tron® is ideal for auto inser-

tion using standard industry equipment. The 0.2” lead spacing

aids ease of design. Standard wave soldering techniques will

not affect the electrical performance of this unique fuse. Due

to its molded construction, the device is unaffected by the

board washing process. These features greatly reduce the

product installation cost while increasing reliability.

The PC-Tron® is available in a wide variety of options offering

flexibility to the design engineer. Available in standard pack

(5-in), bulk (100-in), and tape and reel. In addition, the

PC-Tron® may be ordered with short (approximately 0.10”)

or long (0.75”) lead length. The tape and reel comes standard

at 0.75”.

The short lead length may be used with the optional socket.

The auto insertable socket allows field replacement of the

PC-Tron® subminiature fuse.

Time-Current Characteristics

Carry 100% of rating for 4 hrs. minimum. Open at 200% of

rating in 10 sec. maximum.

(Non-Time-Delay. . .extremely low let-through)

Agency Approvals

PCB, PCC, PCD, PDE, PCF, PCG, PCH, and PCI — U.L.

Recognized; File E19180, Guide JDYX2.

PCB, PCC, PCD, PCF, PCG, PCH, PCI, and PDE — CSA

Certified; File 42731, Class 1421-01.

Dimensions and Material

Body:

0.350” x 0.350” x 0.184”; High temperature plastic.

Leads: 0.020” x 0.015” x 0.100” (short) 0.750” (full)

(tape & reel) (Tin-plated copper).

Mounting Socket

Available as option. (Specify catalog number BK/PCS (100-in)

and short fuse lead length — PCC or PCE)

Cold Resistance Data

(10% Rated Current) Nominal Value

1/2A — 1.4

½ 3/4A — .72½

1A — .43

½ 1-1/2A — .24½

2A — .15

½

2-1/2A — .10

½ 3A — .072½ 5A — .023½

Packaging & Ordering Information:

Standard Fuse

Socket

Packaging

Catalog

Ampere

Packaging

Catalog

Code

Symbol

Rating

Code

Symbol

Blank—Std.

B - Full lead legth.

(1/2, 3/4,

Bulk Pack

Pack (5-in)

(250V) (1/2-3A) 1, 1-1/2,

(100-in)

BK/ Bulk

C - Short lead legth. 2, 2-1/2,

(100-in)

(250V) (1/2-3A) 3, and 5)

TR/ Tape

D - Full lead legth.

(5A avail-

& Reel

(125V) (5A)

able only

(500-in)

E - Short lead legth.* as PCD, PCE

(125V) (5A)

or PCG)

*Note—Short lead length not available in tape-and-reel packaging.

Note—Hi-Rel solderability applications should specify solder-dipped leads by

adding -SD suffix to part number.

BK/

PCS

PC

Standard Fuse (PCB, PCD)

Socket (PCS)

CE logo denotes compliance with European Union Low Voltage Directive

(50-1000 VAC, 75-1500 VDC). Refer to BIF document #8002 or contact

Bussmann Application Engineering at 314-527-1270 for more information.

± .005•

•

± .13 mm
