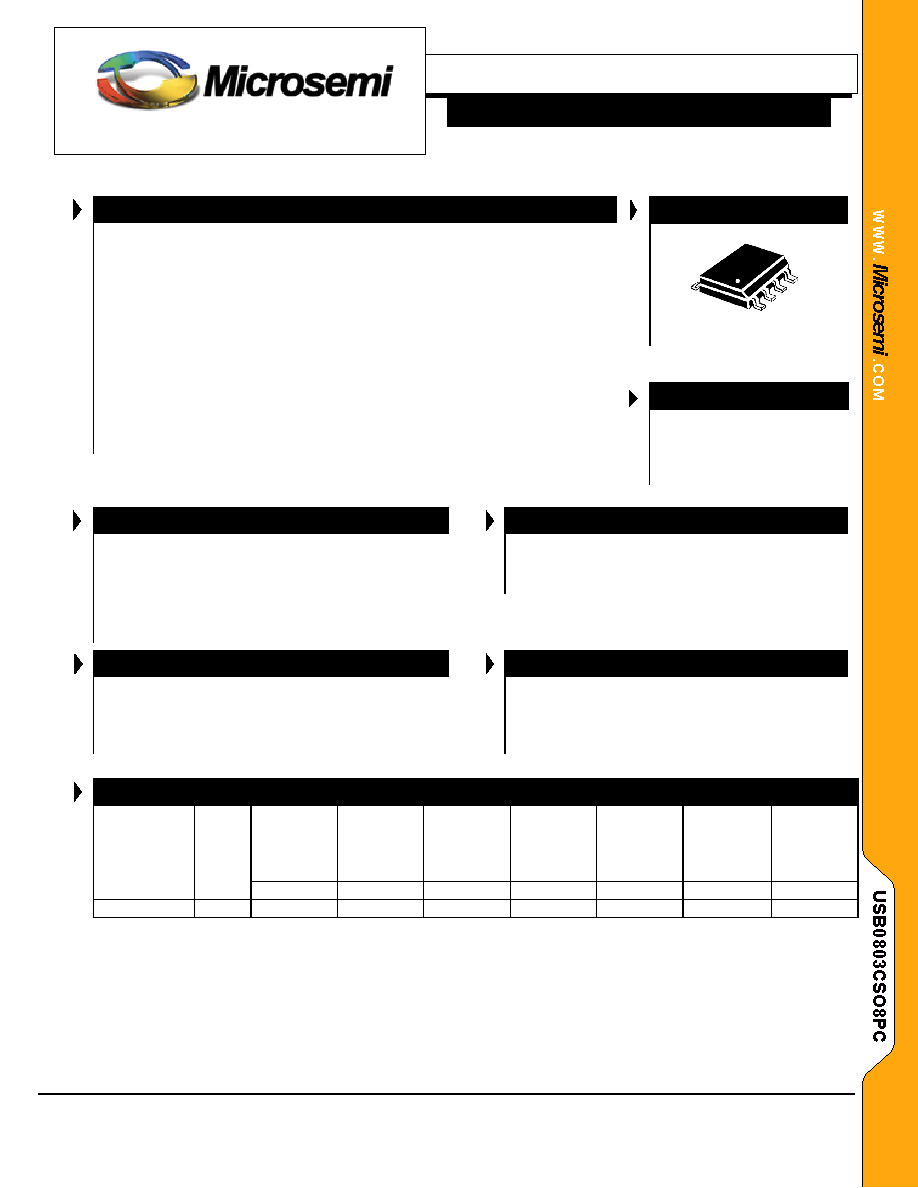

USB0803CSO8PC

Bidirectional TVSarray ™

PRODUCT PREVIEW

SCO TTSD A L E DI VI SI ON

DESCRIPTION

This TRANSIENT VOLTAGE SUPPRESSOR (TVS) array is packaged in an SO-8

configuration giving protection to 2 Bidirectional data or interface lines. It is designed

for use in applications where protection is required at the board level from voltage

transients caused by electrostatic discharge (ESD) as defined in IEC 61000-4-2,

electrical fast transients (EFT) per IEC 61000-4-4 and effects of secondary lightning.

These TVS arrays have a peak power rating of 500 watts for an 8/20

µsec pulse.

This array is suitable for protection of sensitive circuitry consisting of TTL, CMOS

DRAM’s, SRAM’s, HCMOS, HSIC microprocessors, UNIVERSAL SERIAL BUS

(USB) and I/O transceivers. The USB08XXC product provides board level protection

from static electricity and other induced voltage surges that can damage or upset

sensitive circuitry.

IMPORTANT: For the most current data, consult MICROSEMI’s website: http://www.microsemi.com

ELECTRICAL CHARACTERISTICS PER LINE @ 25°C Unless otherwise specified

STAND OFF

VOLTAGE

VOLTS

BREAKDOWN

VOLTAGE

@1 mA

VOLTS

CLAMPING

VOLTAGE

@ 1 Amp

(Figure 2)

VOLTS

CLAMPING

VOLTAGE

@ 5 Amp

(Figure 2)

VOLTS

STANDBY

CURRENT

µA

CAPACITANCE

(f=1 MHz)

C

@0V

pF

TEMPERATURE

COEFFICIENT

mV/°C

PART

NUMBER

DEVICE

MARKING

MAX

MIN

MAX

MAX

MAX

MAX

MAX

USB0803CSO8PC

3C

3.3

4

8

11

200

5

-5

voltage should be equal to or greater than the continuous peak operating voltage of the circuit to be protected.

TVSarray

APPLICATIONS

• EIA-RS485 data rate:

5 Mbs

• 10 Base T Ethernet

• USB date rate: 900 Mbs

FEA T U R E S

•

Protects up to 2 bidirectional lines

•

Surge protection per IEC 61000-4-2, IEC 61000-4-4

•

Provides electrically isolated protection

•

UL 94V-0 Flamability Classification

•

LOW CAPACITANCE 5 pF per line pair

•

LOW LEAKAGE

M AXI M U M R A TI N G S

• Operating Temperature: -55°C to +150°C

• Storage Temperature: -55°C to +150°C

• Peak Pulse Power: 500 watts (8/20 µs, Figure 1)

• Pulse Repetition Rate: < .01%

M E CH AN I C AL

• Molded SO-8 Surface Mount

• Weight 0.066 grams (approximate)

• Marking: Logo, device marking code, date code

• Pin #1 defined by dot on top of package

PA CK AG I N G

• Tape & Reel per EIA Standard 481

• 13 inch reel; 2,500 pieces (OPTIONAL)

• Carrier tubes; 95 pcs (STANDARD)
