ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

30332 Esperanza, Rancho Santa Margarita, California 92688

HIGH CURRENT SHIELDED INDUCTOR

HIGH CURRENT SHIELDED INDUCTOR

HIGH CURRENT SHIELDED INDUCTOR

ASPI-7318

|||||||||||||||

7.3 x 6.8 x 1.8mm

STANDARD SPECIFICATIONS:

TECHNICAL INFORMATION:

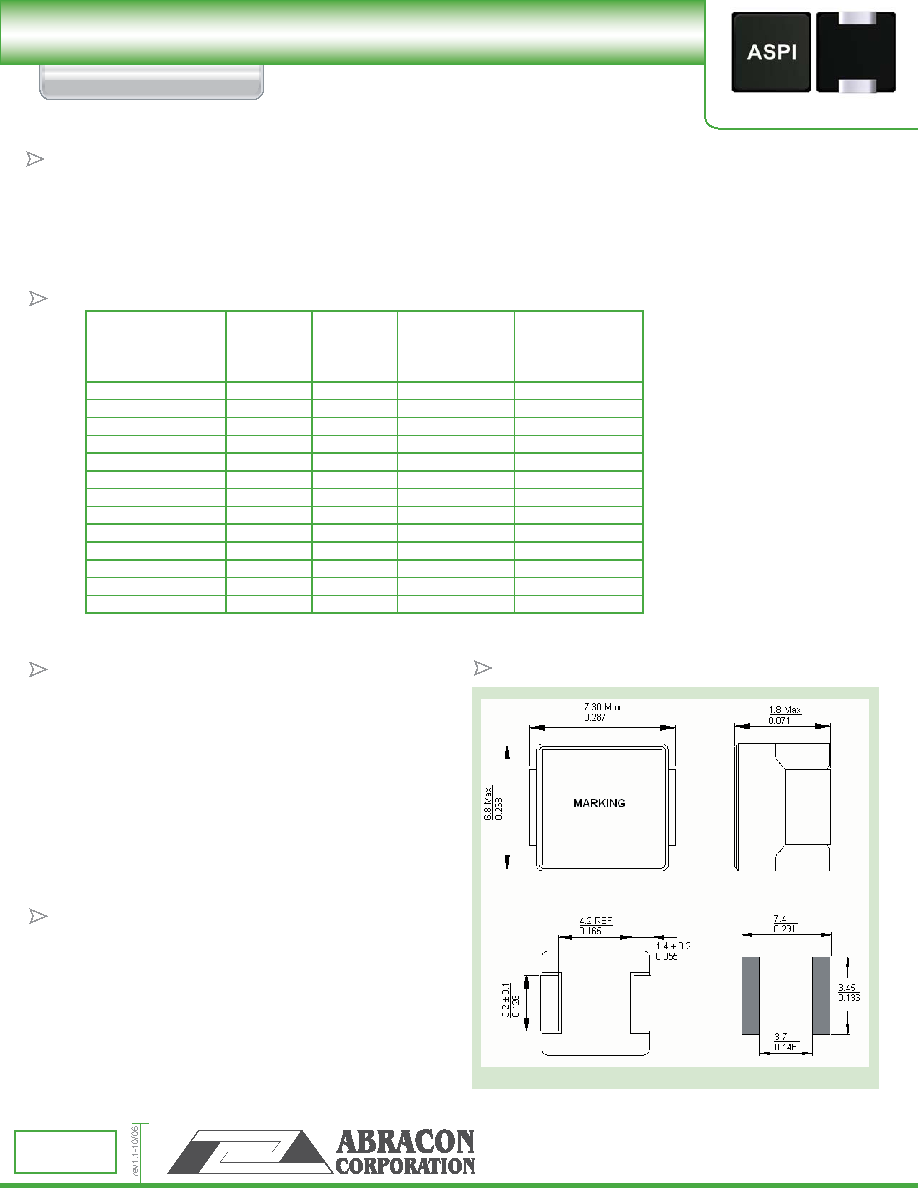

OUTLINE DRAWING:

REMARKS:

FEATURES & APPLICATIONS:

• 100% lead (Pb) free.

• Lowest DCR/uH, in this package size.

• Frequency range up to 5.0MHZ.

• Handles high transient current spikes without saturation

• Ultra low buzz noise, due to composite construction.

• Power supply for VTR

• OA equipment

• LCD television set

• Notebook PC

• Portable communication

• Equipments

• DC/DC converters, etc.

LDCR

HEAT RATING

SATURATION

(µH)

(mΩ)

CURRENT

CURRENT DC

±20%

Max

DC AMPS

AMPS4 TYPICAL

TYPICAL

ASPI-7318- R10

0.10

3.5

18

40

ASPI-7318- R15

0.15

5.2

15

38

ASPI-7318- R22

0.22

5.7

14

26

ASPI-7318- R33

0.33

7.0

12

18

ASPI-7318- R47

0.47

9.3

11

18

ASPI-7318- R68

0.68

13.9

9

17

ASPI-7318- R82

0.82

15.9

8

17

ASPI-7318- 1R0

1.0

18.3

7

14

ASPI-7318- 1R5

1.5

34.0

4

11.5

ASPI-7318- 2R2

2.2

46.0

3.75

13

ASPI-7318- 2R5

2.5

52.4

3.5

10.4

ASPI-7318- 3R3

3.3

60.1

3.25

10

ASPI-7318- 4R7

4.7

78.0

3

8

Part Number

• Operating Temperature Range -55°C to +125°C

• DC current (A) that will cause an approximate

∆T of 40°C

• DC current (A) that will cause Lo to drop approximately 20%.

• The part temperature (ambient + temp rise) should not

exceed 125°C under worst case operating conditions.

Circuit design, component placement, PWB trace size and

thickness, airflow and other cooling provisions all affect the

part temperature. Part temperature should be verified in

the end application.

• Label packing box and reel: RoHS Compliance

inductance value, in µH
