ECM 2512 SMD Chip Inductor

ECM Electronics Limited, Penmaen House, Ashington, West Sussex, RH20 3JR, UK

Tel: +44(0)1903 892810: Fax: +44(0)1903 892738. Email: ecm@ecmelectronics.co.uk

Although we have attempted to accurately reflect the products we market. ECM reserve the right without prior notice to

discontinue any product or make design changes we believe necessary.

Issue 1

ECM63T Series

COMPONENT OUTLINE

Standard EIA 2512 package

Wire-wound Construction

High ‘Q’, High SRF

Fully Encapsulated

Up to 1.0mH +/-10%

Typical Reel Size 1500pcs

The ECM63T range of surface mount inductor offers uniquely high self-resonant frequencies and ‘Q’

values. The ferrite chip core is totally enclosed within the LCP body of the component offering

excellent reliability and low EMI radiation. Inductance range 220nH ~ 1mH.

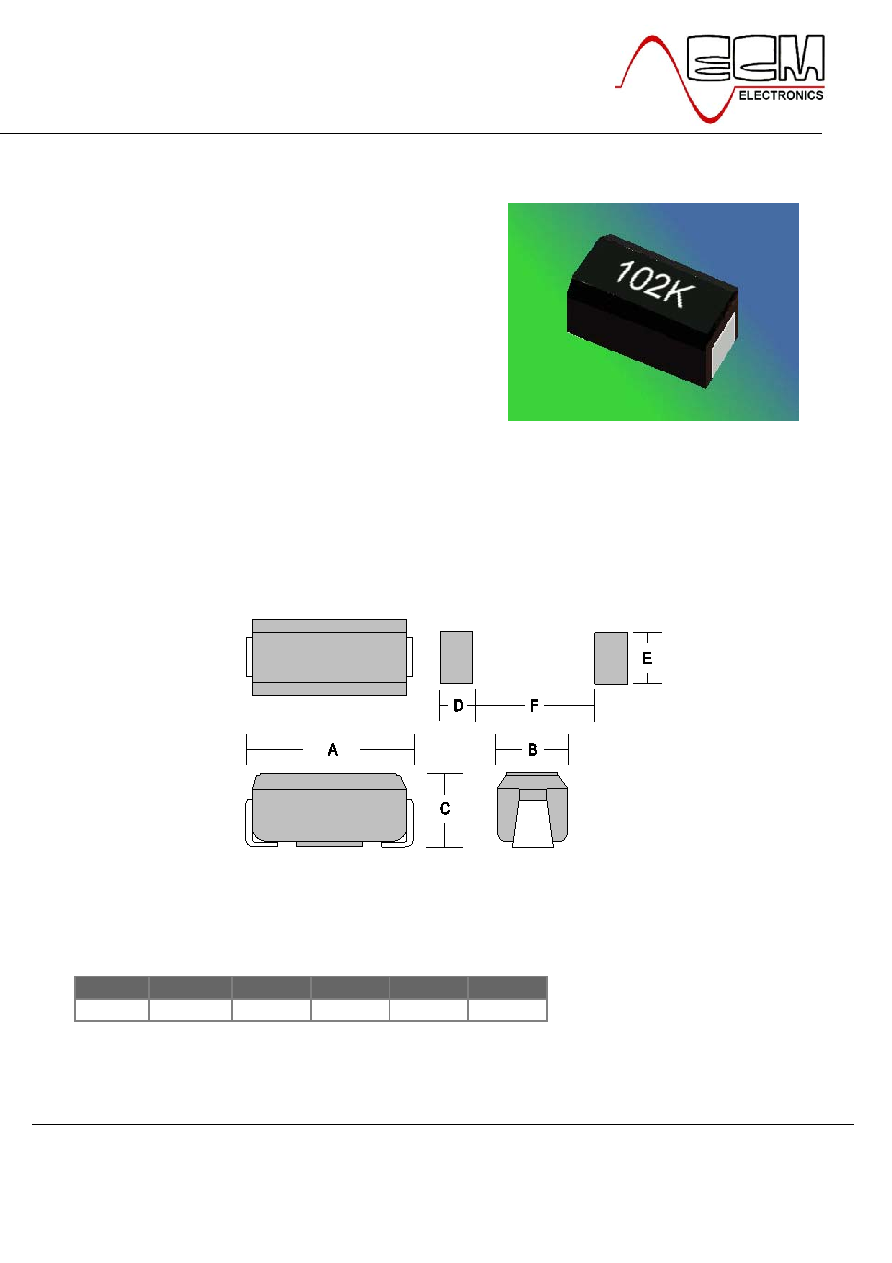

DIMENSIONS (mm)

A

B

C

D

E

F

6.30

3.20

3.20

1.80

2.50

5.00
