ECM 1210 SMD Chip Inductor

ECM Electronics Limited, Penmaen House, Ashington, West Sussex, RH20 3JR, UK

Tel: +44(0)1903 892810: Fax: +44(0)1903 892738. Email: ecm@ecmelectronics.co.uk

Although we have attempted to accurately reflect the products we market. ECM reserve the right without prior notice to

discontinue any product or make design changes we believe necessary.

Issue 1

ECM32T Series

4R7

COMPONENT OUTLINE

§ Standard EIA 1210 package

§ Wire-wound Construction

§ Ferrite Core

§ Fully Encapsulated

§ Low Cost

§ Typical Reel Size 2000pcs

The ECM25T range of chip coils offer uniquely high quality of operation, with excellent mechanical and

electrical characteristics including solvent resistance conforming to MIL202E specifications. The ferrite

core is totally enclosed within the epoxy body of the component. This popular EIA 1210 package offers

excellent workability as well as reliability making it popular with many of the worlds leading design

authorities.

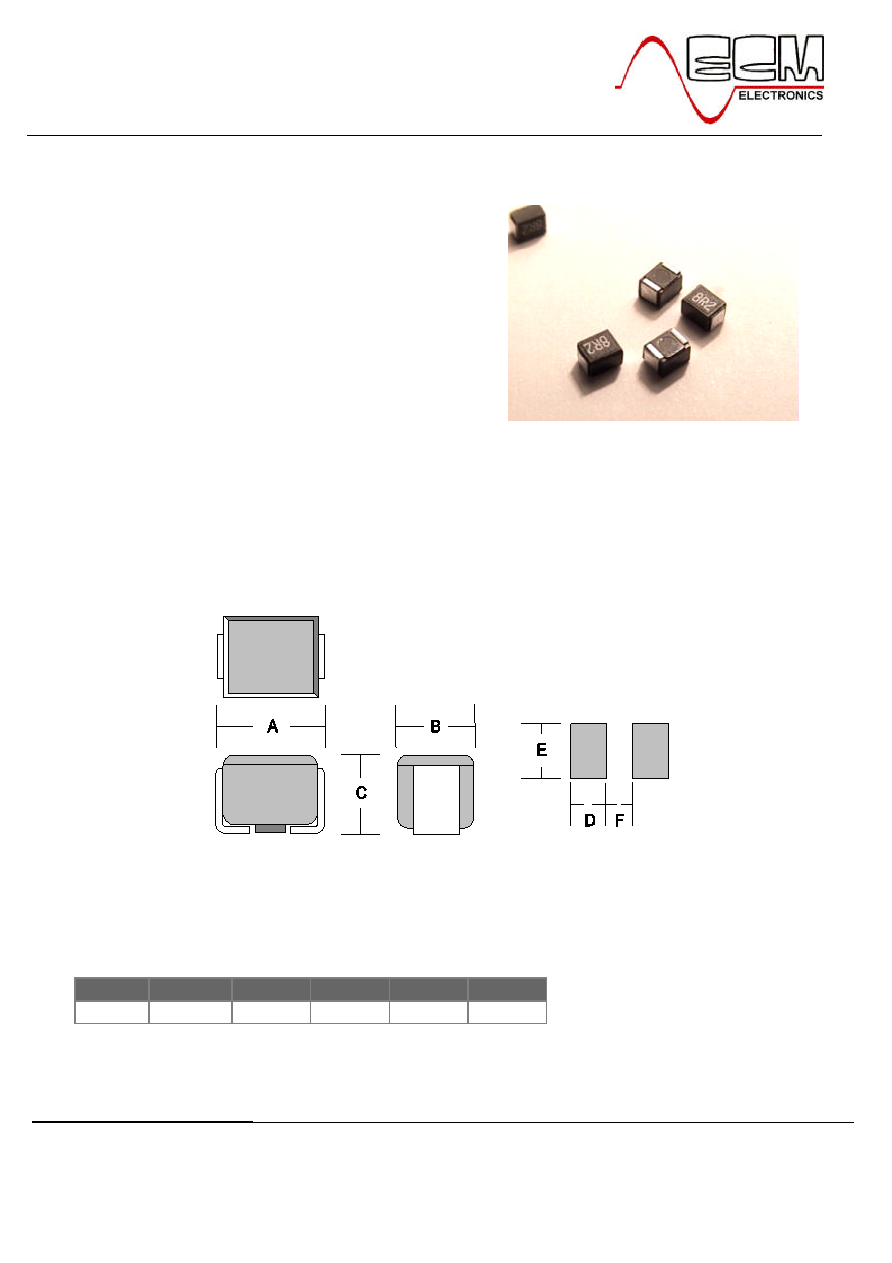

DIMENSIONS (mm)

A

B

C

D

E

F

3.20

2.50

2.20

1.40

2.20

1.50
