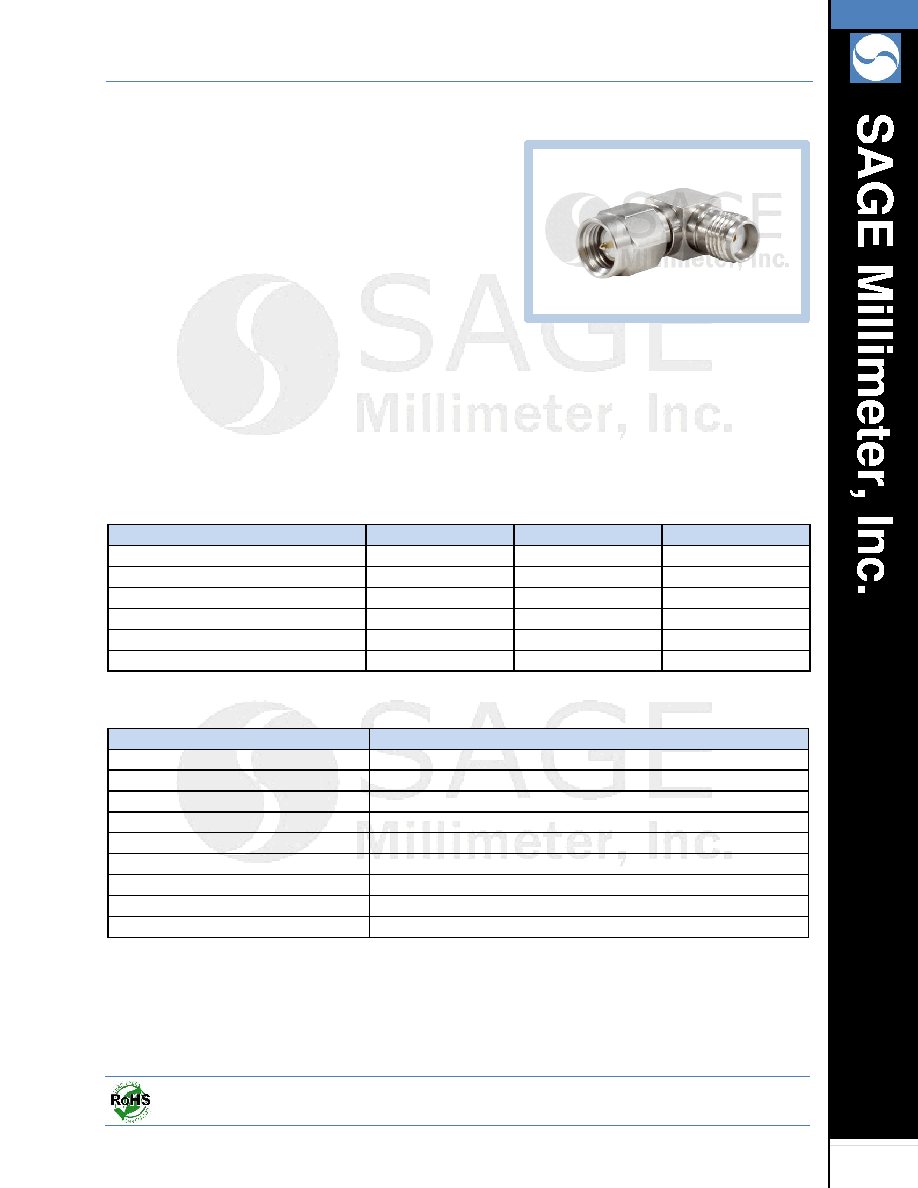

SMA (F) to SMA (M) Coaxial Adapter, Right Angle

Copyright © 2019 by SAGE Millimeter, Inc.

Description:

Model SCT-SFSM-U8-R is a SMA female to SMA male

coaxial adapter with a right angle (90°) that covers the

frequency range of DC to 26.5 GHz. This coaxial adapter

offers efficient transitioning between the coaxial

connectors with a high return loss and typical insertion loss

of 0.3 dB. The impedance of the adapter is 50 ohms. Other

configurations are available under different model numbers.

Features:

• Instrumentation Grade

• High Return Loss

• Low Insertion Loss

Applications:

• Test Lab

• Sub-assemblies

Electrical Specifications:

Parameter

Minimum

Typical

Maximum

Frequency

DC

26.5 GHz

Insertion Loss

0.3 dB

Return Loss

25 dB

Impedance

50 Ω

Specification Temperature

+25 °C

Operating Temperature

-40 °C

+85 °C

Mechanical Specifications:

Item

Specification

Connector 1 Type

SMA Female

Connector 2 Type

SMA Male

Body Material

Stainless Steel

Body Finish

Passivated

Contact Material

Brass

Insulator Material

PTFE

Adapter Body Style

Right Angle

Weight

0.2 Oz

Outline

CT-SFSM-R-SR1
