AD8646
Rev. 0 | Page 8 of 12
80
–60
–40
0
–20
40
20
60
180
–135
–90
0
–45
90
45
135
1
10
100
1k
10k
100k
FREQUENCY (kHz)
VSY = 2.7V
RL = 1kΩ
CL = 10pF
TA = 25°C

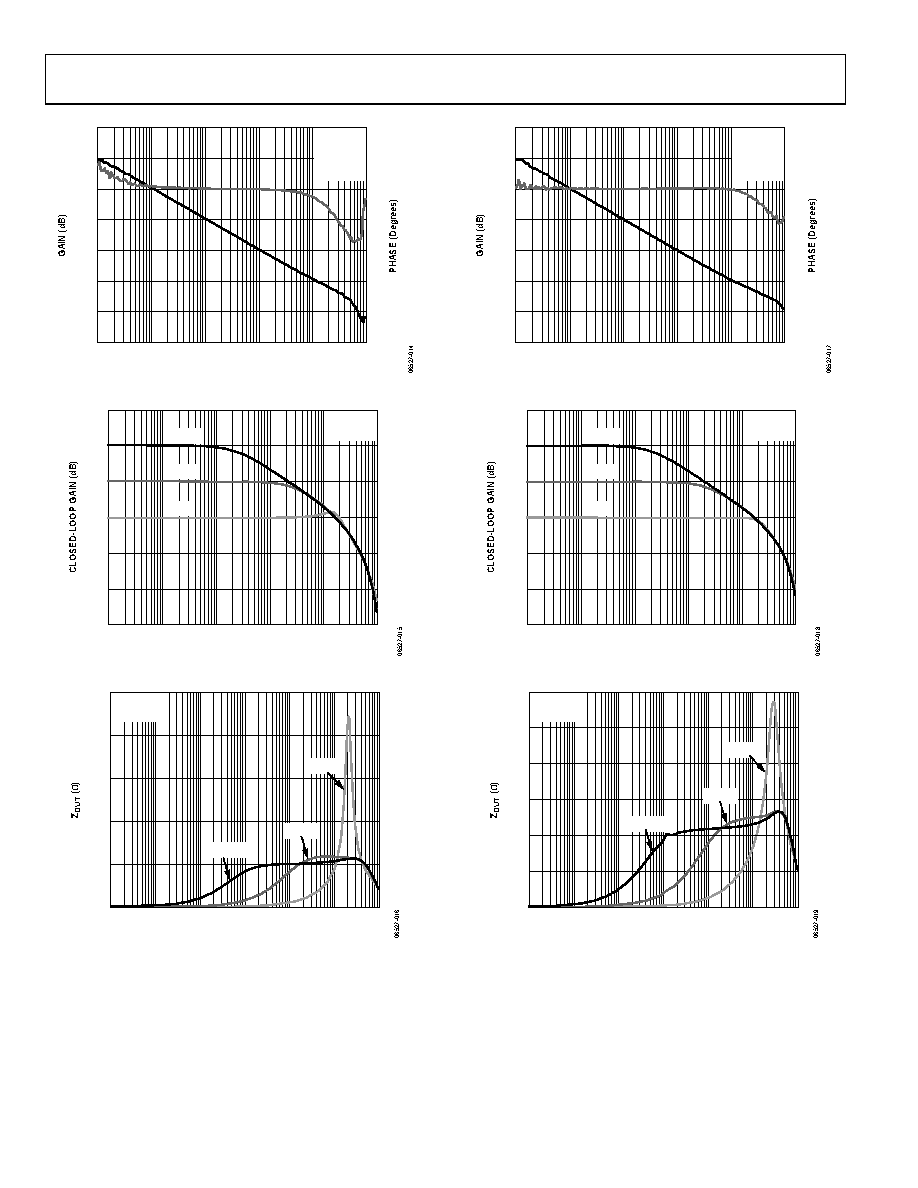

Figure 14. Open-Loop Gain and Phase vs. Frequency
60
–60
–40
0
–20
40
20
1k
10k
100k
1M
10M
100M
FREQUENCY (Hz)
VSY = 2.7V
TA = 25°C
AV = 100
AV = 10
AV = 1
Figure 15. Closed-Loop Gain vs. Frequency
250
0
50
150
100
200
1
10
100
1k
10k
1M
100k
FREQUENCY (kHz)
VSY = 2.7V
TA = 25°C
AV = 1
AV = 10
AV = 100
Figure 16. ZOUT vs. Frequency
80
–60
–40
0
–20
40
20
60
180
–135
–90
0
–45
90
45
135
1
10
100
1k
10k
100k
FREQUENCY (kHz)
VSY = 5V
RL = 1kΩ
CL = 10pF
TA = 25°C
Figure 17. Open-Loop Gain and Phase vs. Frequency
60
–60
–40
0
–20
40
20
1k
10k
100k
1M
10M
100M
FREQUENCY (Hz)
VSY = 5V
TA = 25°C
AV = 100
AV = 10
AV = 1
Figure 18. Closed-Loop Gain vs. Frequency
120
0
20
80
60
40
100
1
10
100
1k
10k
1M
100k
FREQUENCY (kHz)
VSY = 5V
TA = 25°C
AV = 1
AV = 10
AV = 100
Figure 19. ZOUT vs. Frequency
