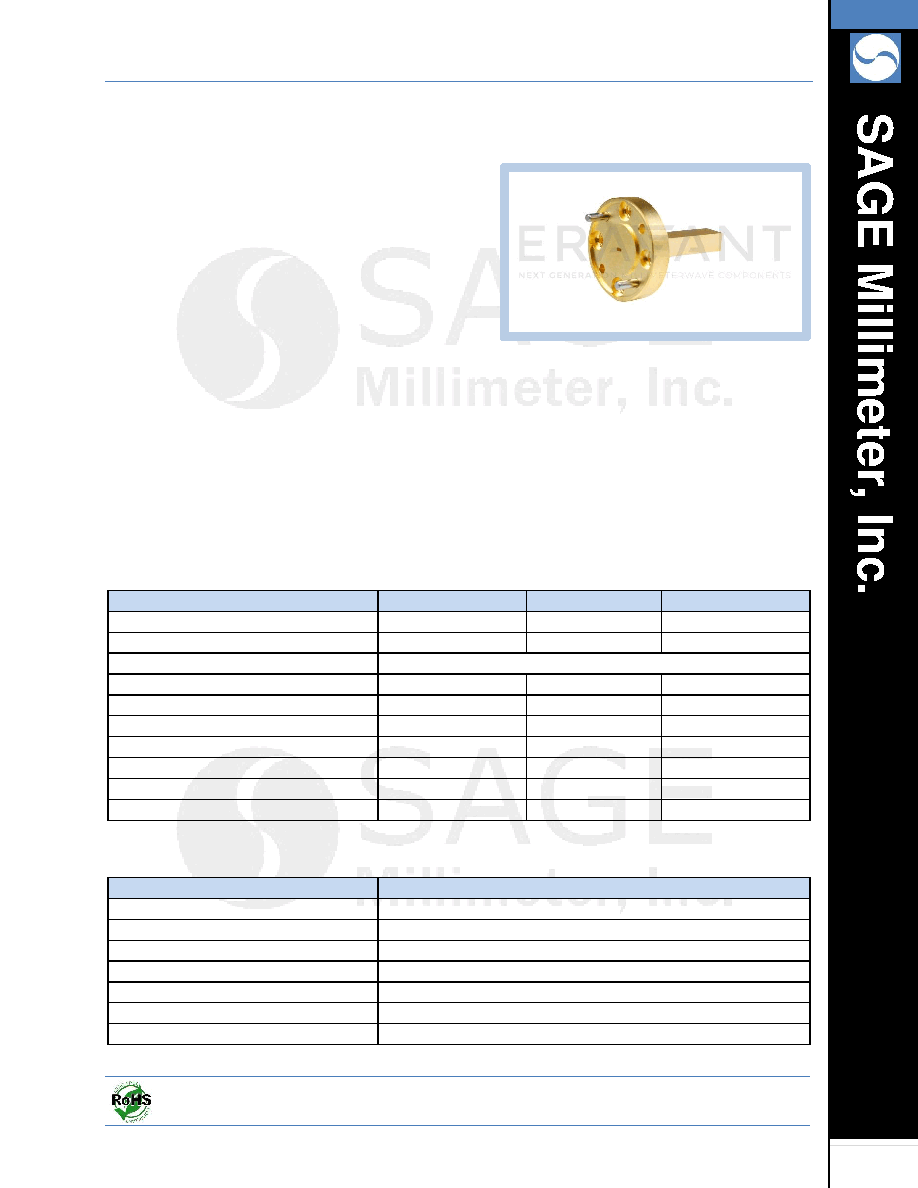

WR-05 Probe Antenna

Copyright © 2023 by Eravant

Description:

Model SAP-05-R2 is a G-band probe antenna that

operates from 140 GHz to 220 GHz. The antenna offers

6.5 dBi nominal gain and 115 degrees typical half power

beamwidth on the E-plane and 55 degrees typical half

power beamwidth on the H-plane. The antenna

supports linear polarized waveforms. The input of this

antenna is a WR-05 waveguide with a UG-387/U-M anti-

cocking flange.

Features:

• Rectangular Waveguide Interface

• Precisely Machined and Gold Plated

• Linear Polarization

• High Return Loss

Applications:

• 5G Systems

• Antenna Ranges

• Antenna Gain Measurements

• System Setups

Electrical Specifications:

Parameter

Minimum

Typical

Maximum

Frequency

140 GHz

220 GHz

Gain

6.5 dBi

Polarization

Linear

3 dB Beamwidth, E-Plane

115°

3 dB Beamwidth, H-Plane

55°

Sidelobes, E-Plane

-10 dB

Sidelobes, H-Plane

-14 dB

Return Loss

10 dB

Specification Temperature

+25 °C

Operating Temperature

-40 °C

+85 °C

Mechanical Specifications:

Item

Specification

Antenna Port

WR-05 Waveguide

Flange Type

UG-387/U-M Anti-Cocking Flange

Material

Brass

Finish

Gold Plated

Weight

0.4 Oz

Size

1.00” (L) x 0.75 (Ø)

Outline

AP-RG-A
