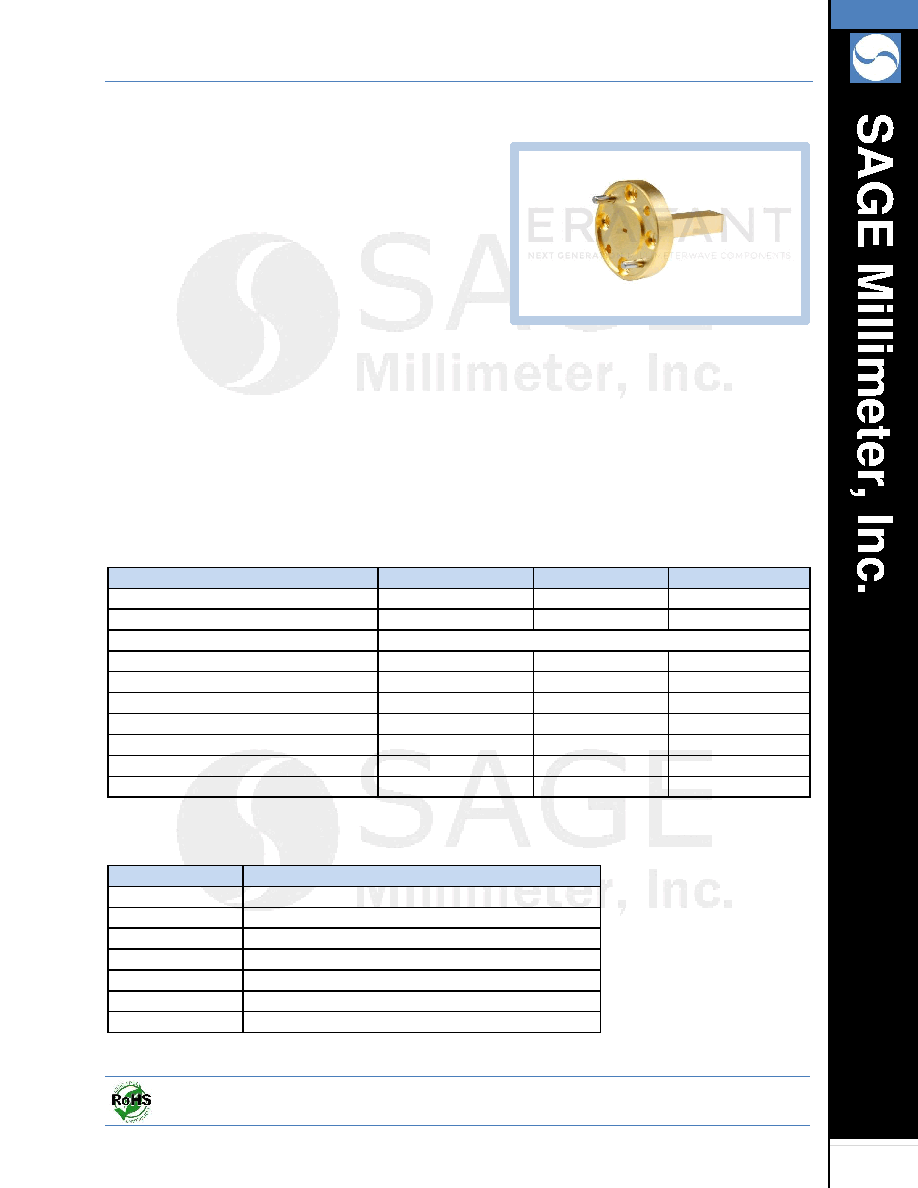

WR-06 Probe Antenna

Copyright © 2022 by Eravant

Description:

Model SAP-06-R2 is a D-band probe antenna that

operates from 110 GHz to 170 GHz. The antenna offers

6.5 dBi nominal gain and 115 degrees typical half power

beamwidth on the E-plane and 60 degrees typical half

power beamwidth on the H-plane. The antenna supports

linear polarized waveforms. The input of this antenna is a

WR-06 waveguide with UG387/U-M anti-cocking flange.

Features:

• Rectangular Waveguide Interface

• Precisely Machined and Gold Plated

• Linear Polarization

• High Return Loss

Applications:

• Antenna Ranges

• Antenna Gain Measurements

• System Setups

Electrical Specifications:

Parameter

Minimum

Typical

Maximum

Frequency

110 GHz

170 GHz

Gain

6.5 dBi

Polarization

Linear

3 dB Beamwidth, E-Plane

115°

3 dB Beamwidth, H-Plane

60°

Side Lobes, E-Plane

-10 dB

Side Lobes, H-Plane

-14 dB

Return Loss

9 dB

Specification Temperature

+25°C

Operating Temperature

-40°C

+85°C

Mechanical Specifications:

Item

Specification

Antenna Port

WR-06 Waveguide

Flange Type

UG-387/U-M Anti-Cocking Flange

Size

1.00” (L) x 0.75 (Ø)

Material

Brass

Finish

Gold Plated

Weight

0.4 Oz

Outline

AP-RD-A
