P4C1048L

LOW POWER 512K x 8

CMOS STATIC RAM

locations are specified on address pins A

0 to A18. Read-

ing is accomplished by device selection (

CE low) and

output enabling (

OE) while write enable (WE) remains

HIGH. By presenting the address under these condi-

tions, the data in the addressed memory location is pre-

sented on the data input/output pins. The input/output

pins stay in the HIGH Z state when either

CE is HIGH or

WE is LOW.

The P4C1048L is packaged in a 32-pin 445 mil plastic

SOP, 32-pin TSOP II, or 600 mil plastic or ceramic side-

brazed DIP.

The P4C1048L is a 4 Megabit low power CMOS static

RAM organized as 512K x 8. The CMOS memory re-

quires no clocks or refreshing, and has equal access

and cycle times. Inputs are fully TTL-compatible. The

RAM operates from a single 5V±10% tolerance power

supply.

Access times as fast as 45 ns are availale. CMOS is

utilized to reduce power consumption to a low level.

The P4C1048L device provides asynchronous opera-

tion with matching access and cycle times. Memory

Common Data I/O

Three-State Outputs

Fully TTL Compatible Inputs and Outputs

Advanced CMOS Technology

Automatic Power Down

Packages

—32-Pin 600 mil Plastic and Ceramic DIP

—32-Pin 445 mil SOP

—32-Pin TSOP II

V

CC Current

— Operating: 35mA

— CMOS Standby: 100µA

Access Times

—45/55/70/100 ns

Single 5 Volts ±10% Power Supply

Easy Memory Expansion Using

CE

CE and OE

OE

Inputs

DESCRIPTION

FEATURES

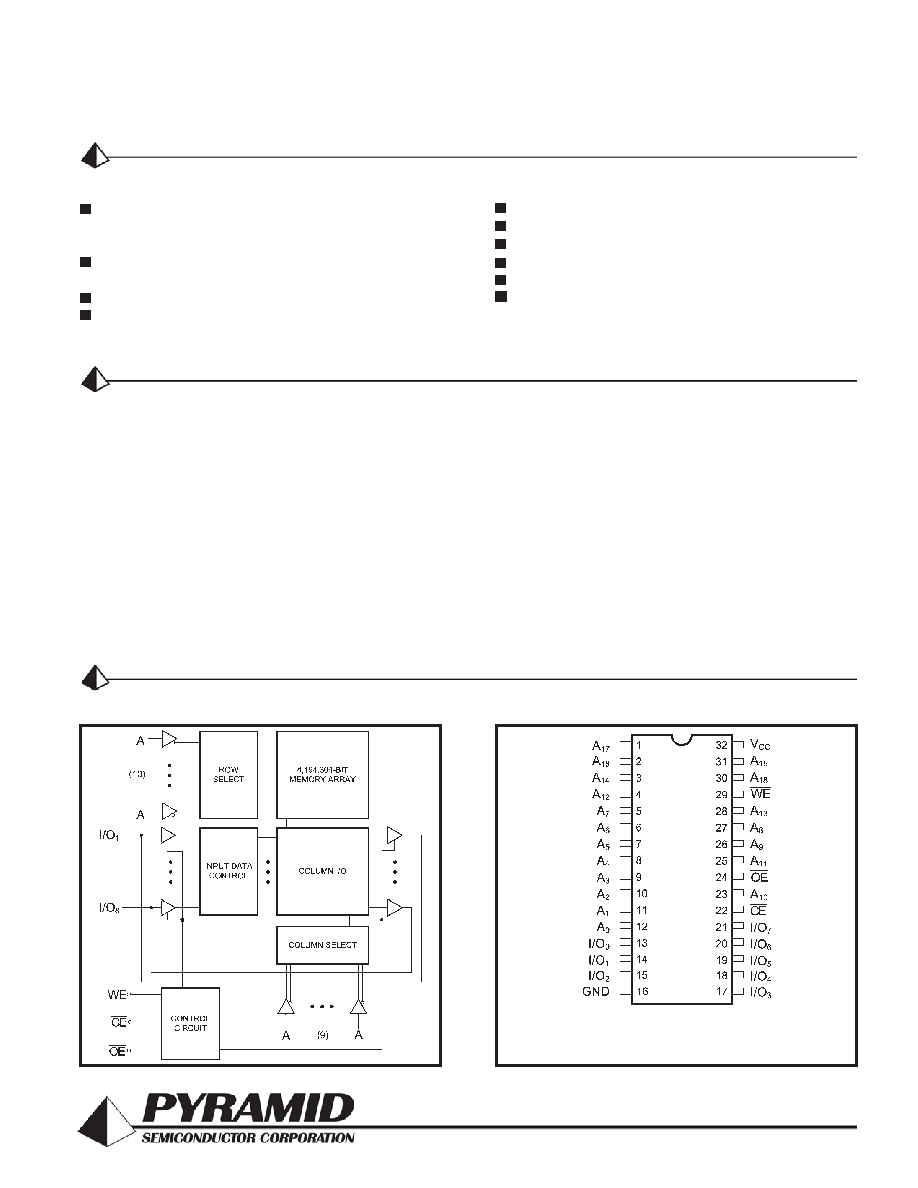

FUNCTIONAL BLOCK DIAGRAM

PIN CONFIGURATION

DIP (P600, C10),

SOP (S12), TSOP II (T4)

TOP VIEW
