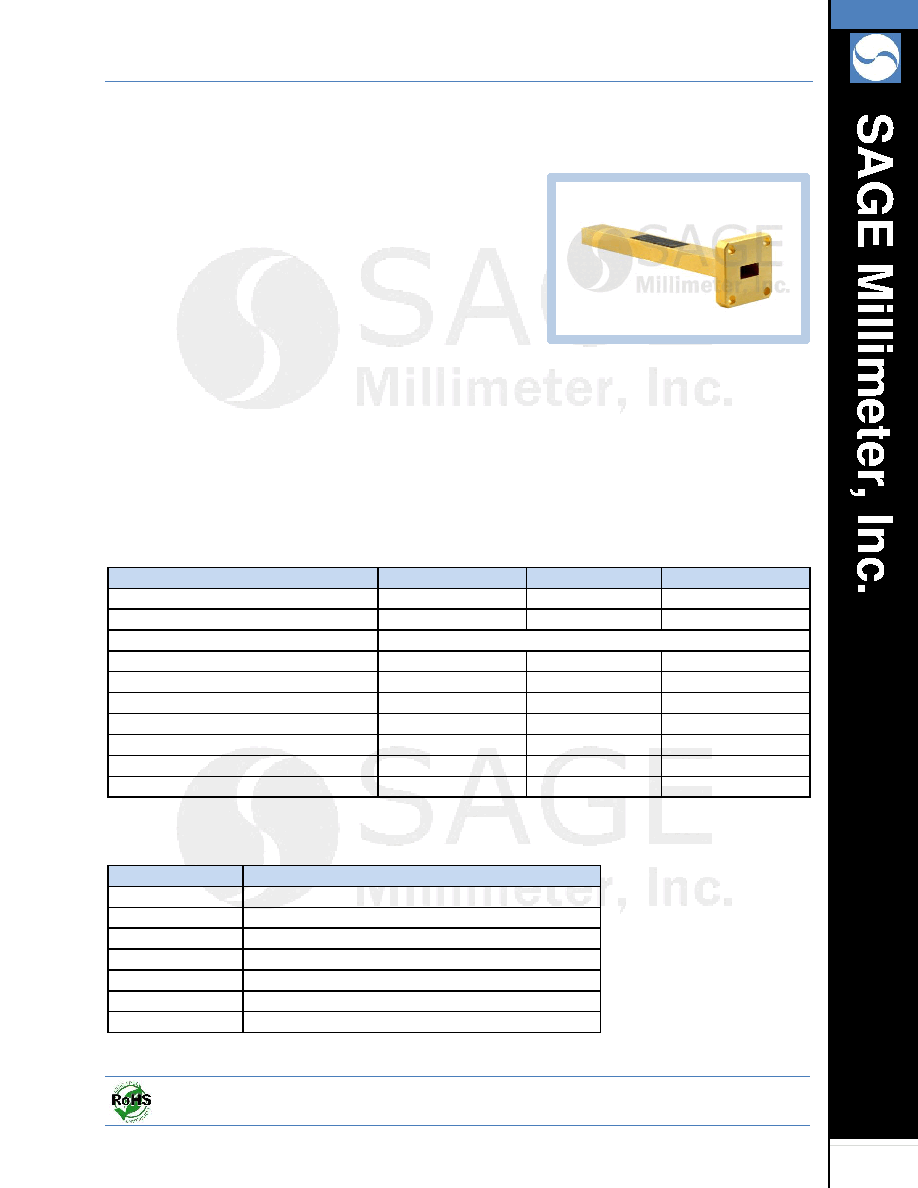

WR-34 Probe Antenna

Copyright © 2023 by Eravant

Description:

Model SAP-34-R2 is a WR-34 probe antenna that operates

from 22 GHz to 33 GHz. The antenna offers 6.5 dBi nominal

gain and 115 degrees typical half power beamwidth on the E-

plane and 60 degrees typical half power beamwidth on the H-

plane. The antenna supports linear polarized waveforms. The

input of this antenna is a WR-34 waveguide with UG-1530/U

flange.

Features:

• Rectangular Waveguide Interface

• Precisely Machined and Gold Plated

• Linear Polarization

• High Return Loss

Applications:

• 5G Systems

• Antenna Ranges

• Antenna Gain Measurements

• System Setups

Electrical Specifications:

Parameter

Minimum

Typical

Maximum

Frequency

22 GHz

33 GHz

Gain

6.5 dBi

Polarization

Linear

3 dB Beamwidth, E-Plane

115°

3 dB Beamwidth, H-Plane

60°

Sidelobes, E-Plane

-10 dB

Sidelobes, H-Plane

-14 dB

Return Loss

10 dB

Specification Temperature

+25 °C

Operating Temperature

-40 °C

+85 °C

Mechanical Specifications:

Item

Specification

Antenna Port

WR-34 Waveguide

Flange Type

UG-1530/U Flange

Material

Brass

Finish

Gold Plated

Weight

1 Oz

Size

3.40” (L) x 0.875 (W) x 0.875 (H)

Outline

AP-R3
