S3JB datasheet(1/2 Pages) TSC

部件名	S3JB

功能描述	3.0 AMPS. Surface Mount Rectifiers

PDF	2 Pages

Scroll/Zoom	100%

制造商	TSC [Taiwan Semiconductor Company, Ltd]

网页	http://www.taiwansemi.com

标志

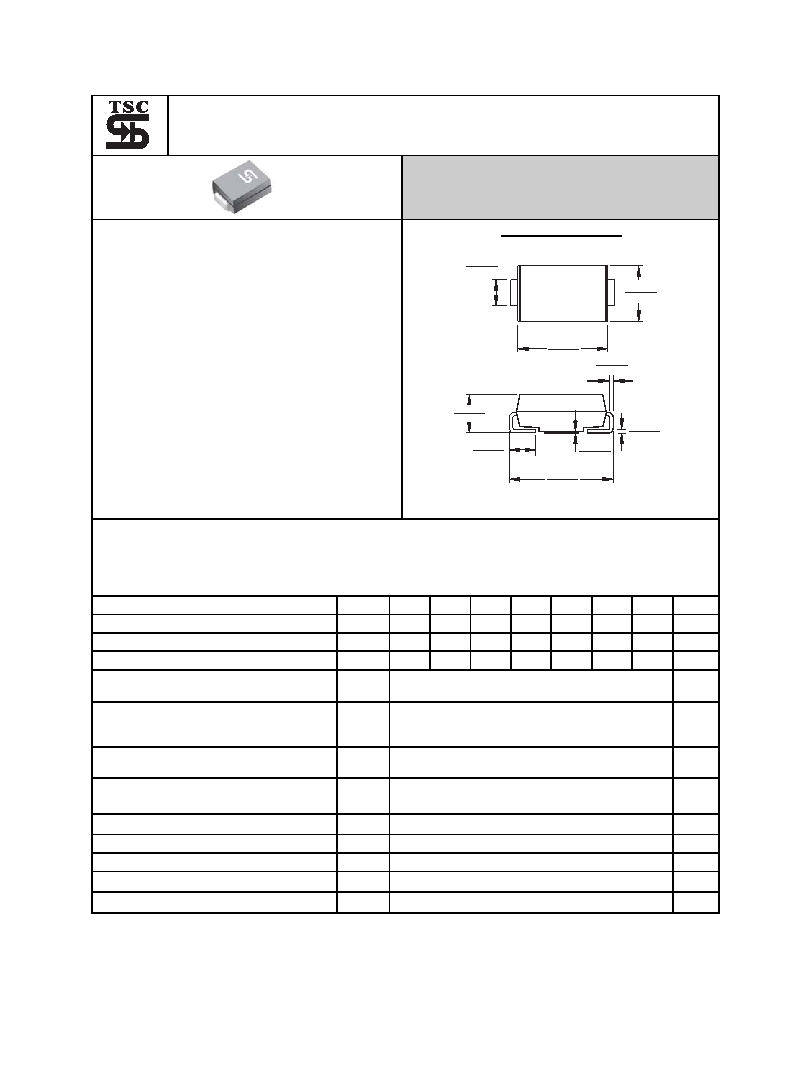

1 / 2 page

- 498 -

.082(2.08)

.076(1.93)

.012(.31)

.006(.15)

.012(.31)

.006(.15)

.008(.20)

.004(.10)

.056(1.41)

.035(0.90)

.147(3.73)

.137(3.48)

.187(4.75)

.167(4.25)

.103(2.61)

.078(1.99)

.208(5.28)

.200(5.08)

S3AB THRU S3MB

3.0 AMPS. Surface Mount Rectifiers

Voltage Range

50 to 1000 Volts

Current

3.0 Amperes

Features

For surface mounted application

Glass passivated junction chip.

Low forward voltage drop

High current capability

Easy pick and place

High surge current capability

Plastic material used carries Underwriters

Laboratory Classification 94V-O

High temperature soldering:

260

oC / 10 seconds at terminals

Mechanical Data

Case: Molded plastic

Terminals: Solder plated

Polarity: Indicated by cathode band

Packaging: 16mm tape per EIA STD RS-481

Weight: 0.093 gram

SMB/DO-214AA

Dimensions in inches and (millimeters)

Maximum Ratings and Electrical Characteristics

Rating at 25

℃ambient temperature unless otherwise specified.

Single phase, half wave, 60 Hz, resistive or inductive load.

For capacitive load, derate current by 20%

Type Number

Symbol S3AB S3BB S3DB S3GB S3JB S3KB S3MB Units

Maximum Recurrent Peak Reverse Voltage

VRRM

50

100

200

400

600

800 1000

V

Maximum RMS Voltage

VRMS

35

70

140

280

420

560

700

V

Maximum DC Blocking Voltage

VDC

50

100

200

400

600

800 1000

V

Maximum Average Forward Rectified Current

@TL =75

℃

I(AV)

3.0

A

Peak Forward Surge Current, 8.3 ms Single

Half Sine-wave Superimposed on Rated

Load (JEDEC method )

IFSM

100

A

Maximum Instantaneous Forward Voltage

@ 3.0A

VF

1.15

V

Maximum DC Reverse Current @ TA =25

℃

at Rated DC Blocking Voltage @ TA=125

℃

IR

10.0

250

uA

Typical Thermal Resistance (Note 3)

R

θJL

10

℃/W

Maximum Reverse Recovery Time ( Note 1 )

Trr

2.5

uS

Typical Junction Capacitance ( Note 2 )

Cj

40

pF

Operating Temperature Range

TJ

-55 to +150

℃

Storage Temperature Range

TSTG

-55 to +150

℃

Notes: 1. Reverse Recovery Test Conditions: IF=0.5A, IR=1.0A, IRR=0.25A

2. Measured at 1 MHz and Applied VR=4.0 Volts

3. Measured on P.C. Board with 0.4 x 0.4” (10 x 10mm) Copper Pad Areas.
