Ceramic Wirewound RF Inductor (AEC-Q200)

AISC-Q0603 Series

1.80 x 1.12 x 1.02 mm

RoHS/RoHS II Compliant

MSL Level = 1

Request Samples

Check Inventory

REVISION Initial Release :

11/21/2023

5101 Hidden Creek Ln, Spicewood TX 78669

Phone: 512-371-6159 Fax: 512-351-8858

For terms and conditions of sales, please visit:

www.abracon.com

Test Conditions:

Inductance, Q, SRF: HP4286/E4982A

DCR: Micro-Ohm meter (Gom-801G)/E4982A

IDC: Applied the current to coils, the temperature of coil increases ΔT15℃(Ta=25℃).

Operating Temperature: -40°C to +125°C

Components Storage Temperature: -40°C to +125°C

Tape and Reel packaging Temperature: 15~28°C; < 80% RH

AISC-Q0603 is AEC-Q200 Qualified

AISC-Q0603 Series is RoHS Compliant and Pb free

AISC-Q0603 -

-

Inductance Code

Refer to the electrical

specifications table

A

B

C

D

E

F

G

H

I

J

1.80 max 1.12 max 1.02 max 0.38 max

0.76

0.33

0.86

1.02

0.64

0.64

Dimensions: mm

Packaging

T: Tape & Reel 4,000 units

Blank: Bulk

Tolerance Code

G: ±2%

J: ±5%

K: ±10%

Part Number Identification

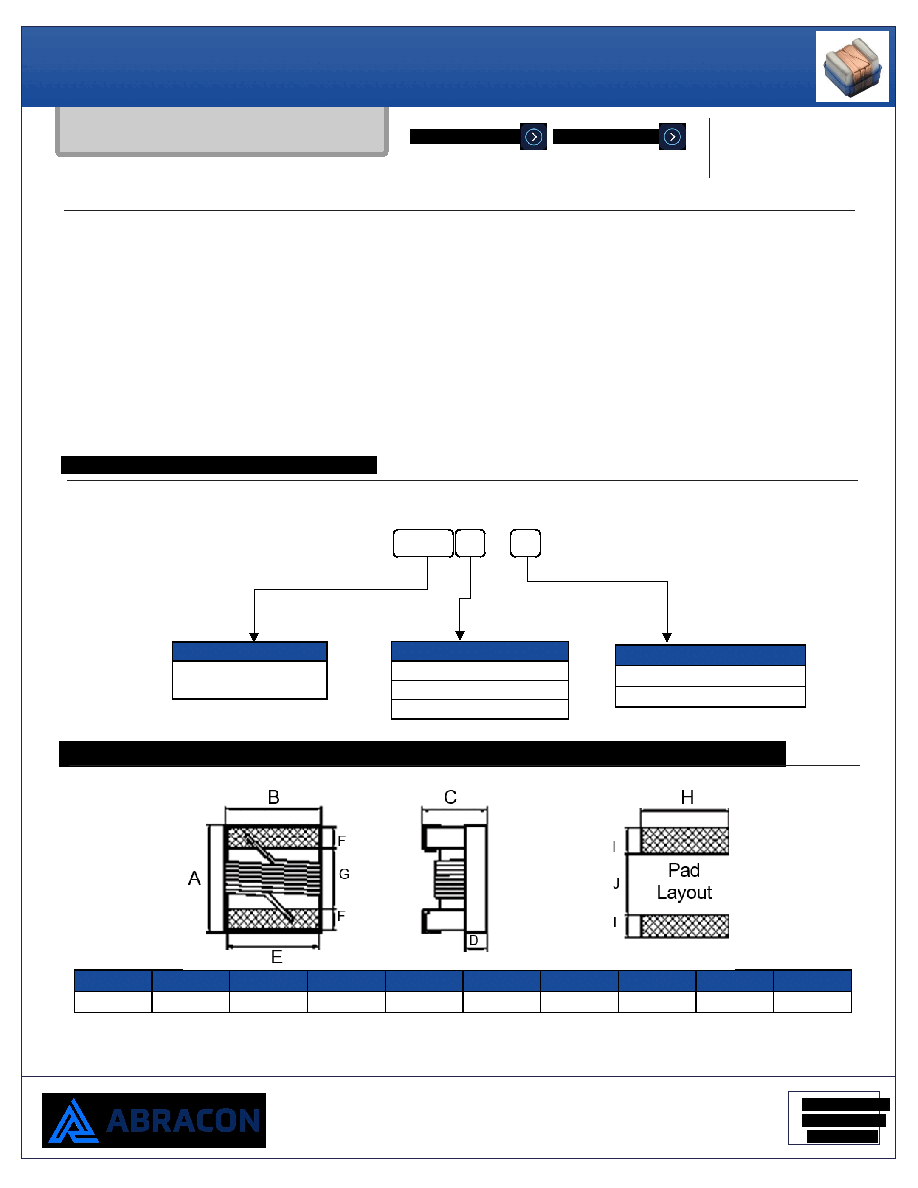

Mechanical Dimensions

Electrical Specifications (Cont’d)
