Agilent 2.5 mm x 7.6 mm Rectangular

LED Lamps

Data Sheet

Description

The HLMP-R100, -0301, -0401,

-0504 are solid state lamps

encapsulated in a radial lead

rectangular epoxy package. They

utilize a tinted, diffused epoxy to

provide high on-off contrast and a

flat high intensity emitting

surface. Borderless package

design allows creation of

uninterrupted light emitting

areas.

The HLMP-R100 uses a double

heterojunction (DH) absorbing

substrate (AS) aluminum gallium

arsenide (AlGaAs) red LED chip

in a light red epoxy package. This

combination produces

outstanding light output over a

wide range of drive currents.

The HLMP-0301 has a high

efficiency red GaAsP on GaP LED

chip in a light red epoxy package.

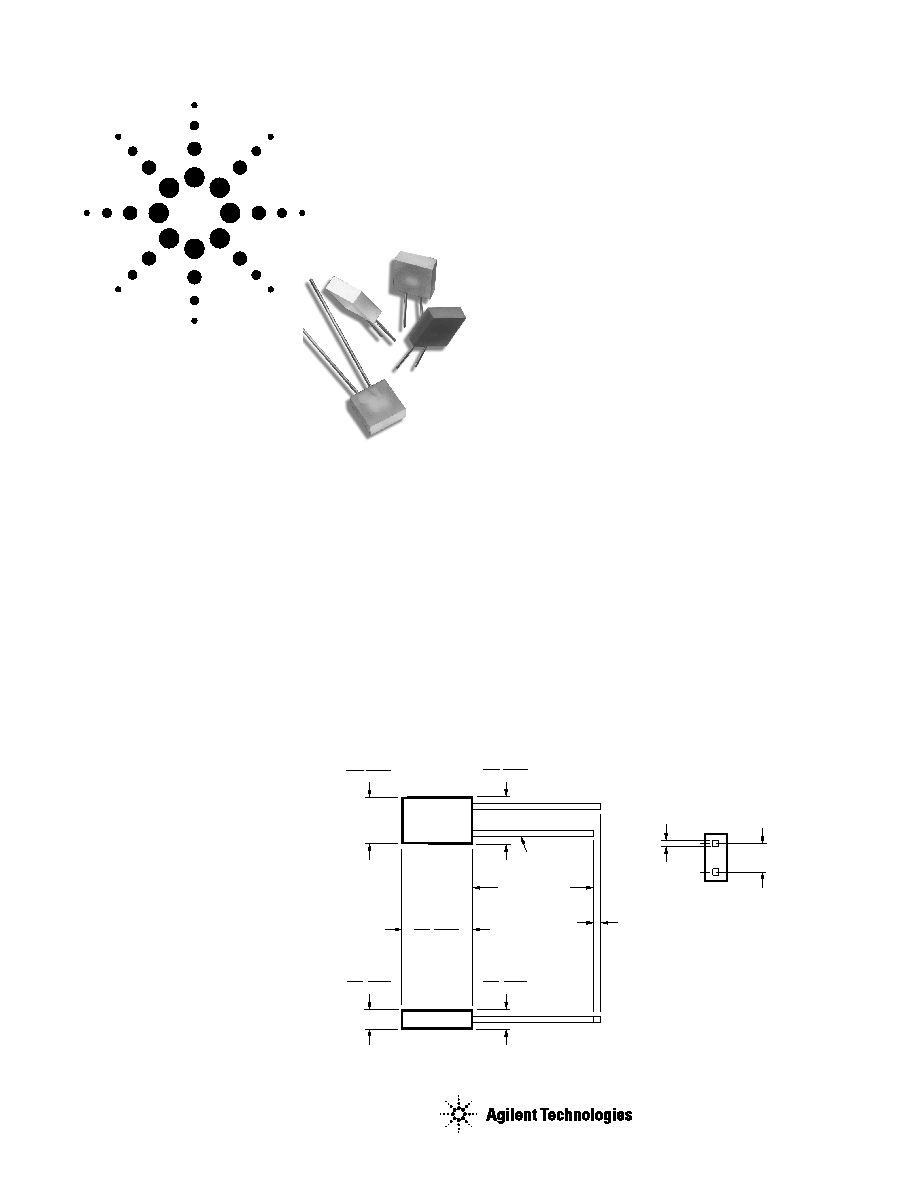

Package Dimensions

HLMP-R100, HLMP-0301, HLMP-0401, HLMP-0504

Features

• Rectangular light emitting surface

• Flat high sterance emitting surface

• Stackable on 2.54 mm (0.100 inch)

centers

• Ideal as flush mounted panel

indicators

• Ideal for backlighting legends

• Long life: solid state reliability

• Choice of 4 bright colors

– DH AS AlGaAs Red

– High Efficiency Red

– Yellow

– High Performance Green

• IC compatible/low current

requirements

The HLMP-0401 provides a yellow

GaAsP on GaP LED chip in a

yellow epoxy package.

The HLMP-0504 provides a green

GaP LED chip in a green epoxy

package.

2.54 (0.100)

2.29 (0.090)

2.54 (0.100)

2.16 (0.085)

8.00 (0.315)

7.37 (0.290)

29.21 (1.15) MIN.

CATHODE LEAD

BOTTOM VIEW

SIDE VIEW

1.27 (0.50)

NOMINAL

NOTES:

1. ALL DIMENSIONS ARE IN

MILLIMETERS (INCHES).

2. AN EPOXY MENISCUS MAY EXTEND

ABOUT 1 mm (0.040") DOWN THE LEADS.

3. THERE IS A MXIMUM 1

° TAPER FROM

BASE TO THE TOP OF LAMP.

2.54 (0.100)

NOMINAL

0.46 (0.018)

SQ. NOMINAL

7.62 (0.300)

7.11 (0.280)

7.62 (0.300)

6.99 (0.275)
