FEATURES

Measures temperature with most RTD probes

Supports 2, 3 and 4-wire RTDs

Displays measurement for Farenheit, Celsius, Kelvin

Rankine and ohms

Easy configurability to meet application

PRODUCT SPECIFICATIONS:

Following specification is based on use of 4 wire RTD probe; accuracy does not

include contribution from RT

AM2-RT1 RTD TEMPERATURE MODULE

Used with RTD

Probe Type

Meaurement Range

and Accuracy

Resolution*

Pt100 (385 & 392)

-200 to 550 °C: ±0.15 °C

0.01 °C or °F

Ni 120

-80 to 260 °C: ±0.1 °C

0.1 °C or °F

Cu 10

-70 to 150 °C: ±0.6 °C

0.1 °C or °F

Ohms

±0.01% reading ±0.02 ohms 0.004 ohms

AM2-RT2 RTD TEMPERATURE MODULE

Pt1000

-200 to 550 °C: ±0.15 °C

0.01 °C or °F

Ohms

±0.01% reading ±0.02 ohm 0.004 ohms

* Select from 1, 0.1, 0.01 and 0.001 degrees or ohms. Resolution for a given probe is dependent on

the output of the probe. Maximum resolution is 1 part in 100,000 of full scale ohms Select from

1, 0.1, 0.01 and 0.001 degrees or output for the probe.

Temperature Error:

Better than ±0.0005% of reading per degree Fahrenheit from a reference

temperature of 70 F ±3 °F

Input Receptacle:

TA4F type RTD connector

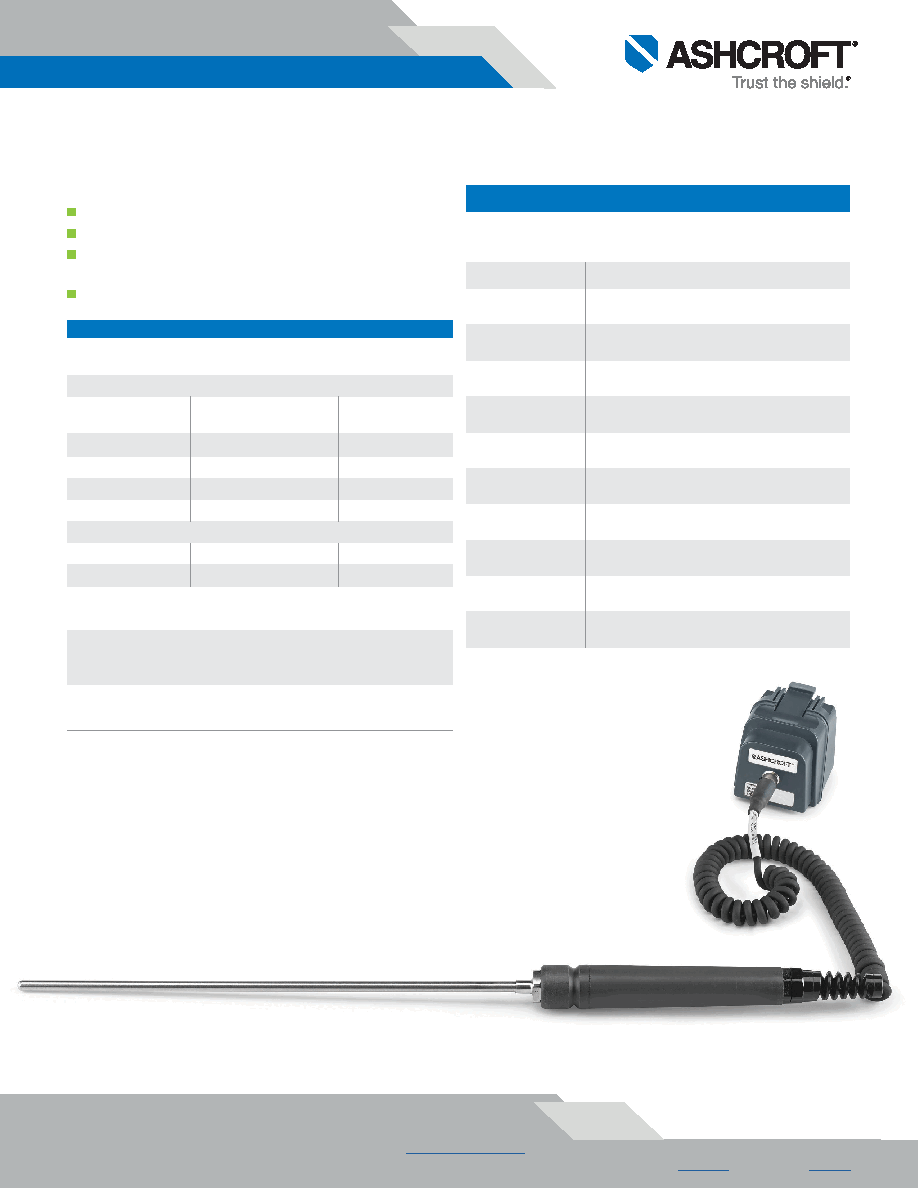

AM2-RT1, AM2-RT2 RTD Temperature Modules

HOW TO ORDER RTD PROBES

Probes are all 4 wire RTDs with 304 Stainless steel sheath and a TA4F

electrical connector for compatibility with AM2-RT1 interface modules. They

are provided in DIN Class A accuracy.

Part No.

Description

840X010-01

Pt100 (385), 0.125 diameter, 12 inch length, handle

and 5 foot coiled cable

840X010-02

Pt100 (385), 0.25 diameter, 12 inch length, handle

and 5 foot coiled cable

840X010-05

Pt100 (385), 0.125 diameter, 6 inch length, handle

and 5 foot coiled cable

840X010-06

Pt100 (385), 0.25 diameter, 6 inch length, handle

and 5 foot coiled cable

840X010-11

Pt100 (385), 0.125 diameter, 8 inch length, handle

and 5 foot coiled cable

840X010-03

Pt100 (385), 0.125 diameter, 12 inch length, 10 foot

straight extension lead with plug (no handle)

840X010-04

Pt100 (385), 0.25 diameter, 12 inch length, 10 foot

straight extension lead with plug (no handle)

840X010-07

Pt100 (385), 0.125 diameter, 6 inch length, 10 foot

straight extension lead with plug (no handle)

840X010-08

Pt100 (385), 0.25 diameter, 6 inch length, 10 foot

straight extension lead with plug (no handle)

828X136-01

TA4F mating connector for use with HM2-RT1

module and user supplied RTD probe
