ATE-2 Handheld Calibrator

Data Sheet

All specifications are subject to change without notice. All sales subject to standard terms and conditions.

Ashcroft®, Quick-Select™ and Trust the Shield® are trademarks of Ashcroft Inc. The following non-Ashcroft trademarks

are the property of their respective owners: 17-4 PH®, VCR®. For more information, see Ashcroft Brands & Trademarks

©2023 Ashcroft Inc. ate-2_calibrator_ds_RevG_01-31-23

ashcroft.com

| 1.800.328.8258 | Contact Us

FEATURES

Low pressure modules ranges from 0.25 in. H

2O

(IWC) to 200 in. H

2O (IWC), accuracy ±0.1% to

±0.06% of span, variable capacitance sensor, for use

with clean dry gas media

Medium/high pressure modules 5 to 10,000 psi,

accuracy ±0.1% to ±0.025% of span, 316 Stainless

steel isolated sensor, for use with media compatible

with 316 Stainless steel

Gauge, absolute, differential and compound

ranges available

Temperature compensated 20 °F to 120 °F

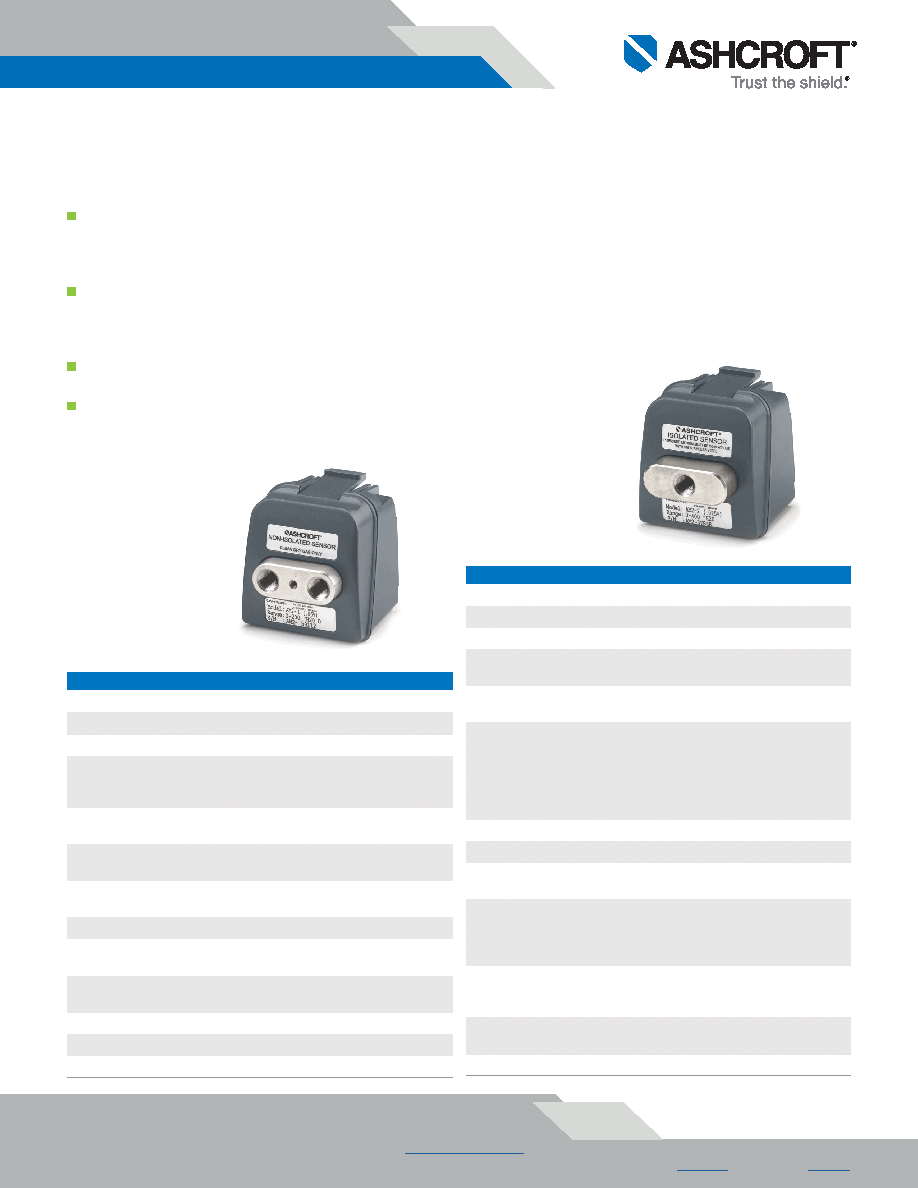

AM2-1

Pressure Module

AM2-2

Pressure Module

AM2-1, AM2-2 Pressure Modules

PRODUCT SPECIFICATIONS:

AM2-1 Low Pressure Modules:

Pressure Types:

Differential and compound

Available Ranges:

Refer to range table

Available Accuracies:

±0.06% of span (0/1-0/200 in. H20)

±0.07% of span (0/0.25-0/0.5 in. H20)

±0.1% of span

Compensated

Temperature Range:

20 °F to 120 °F (-7 °C to 49 °C)

Temperature Effect:

±0.004% of span per °F over compensated range

from reference temperature range of 70 °F (±3 °F)

Repeatability:

±0.01% of span (range 0/1 in. H20 or higher)

±0.02% of span (range below 1.0 in. H20)

Sensitivity:

±0.002% of span (typical)

Under / Overpressure

Capability:

-15 to 50 psi

Maximum Static (line)

Pressure:

100 psi

Process Connection:

1

⁄8 NPT Female (STD.)

Media Compatibility:

Clean, dry, non-conductive, non-corrosive gas

Agency Approvals:

FCC (CFR47), UL61010-1, Not RoHS compliant

PRODUCT SPECIFICATIONS:

AM2-2 Medium High Pressure Modules:

Pressure Types:

Gauge, absolute, compound and vacuum

Available Ranges:

Refer to range table

Available Accuracies:

±0.025%, ±0.05% or ±0.1% of span (10,000 psi

only offered in psig and ±0.1% accuracy)

Compensated

Temperature Range:

20 °F to 120 °F (-7 °C to 49 °C)

Temperature Effect:

Standard: ±0.004% of span per °F over

compensated range from reference temperature

range of 70 °F (±3 °F)

Optional: Enhanced Accuracy Option. No additional

error due to ambient temperature from

20 °F to 120 °F

Sensitivity:

±0.002% of span (typical), ±0.001 of span (max)

Repeatability:

±0.01% of span

Overpressure

Compatibility:

200% for ranges to ≤ 1,000 psi

150% for ranges > 1,000 psi

Process Connection:

1

⁄8 NPT Female (STD.) Optional pressure connec-

tions, 1⁄8 NPT Female NPT with flush-out port,

welded VCR® compatible fitting with standard

finish (5,000 psi max)

Media Compatibility:

Any medium compatible with 316 Stainless steel

isolation; 10,000 psi range only available with

17-4 PH® / 316 Stainless steel

Optional:

Clean to ASME B40-100 Level IV,

(Not marked for oxygen service)

Agency Approvals:

CE/UKCA, FCC (CFR47), UL61010-1
