DESCRIPTION

The SQXO2SM oscillator consists of a CMOS-compatible

hybrid circuit, hermetically sealed in a standard 24-pin

ceramic leadless chip carrier. Precision tuning of the

oscillator allows for very tight calibration tolerance and

eliminates the need for a trimming capacitor, a major source

of long-term frequency drift. The specifications and

characteristics of the SQXO2SM vary with frequency. The

characteristics of the 32.768 kHz model are presented in

this data sheet.

FEATURES

Low power consumption

Low aging

TTL and CMOS compatible

Full military testing available

Various voltage options available

High shock resistance

Standard 24-pin ceramic LCC

APPLICATIONS

Industrial, Computer & Communications

General purpose clock oscillator

Data Logger

Remote sensor

Liquid level sensing

Medical test and diagnostics

Military

Portable field communication

Military high speed modem

Flight recorder

SQXO2SM OSCILLATOR

10 kHz to 2 MHz*

Surface Mount Low Power Crystal Oscillator

™

SQXO2SM

32.768kHz

*Consult factory for other frequencies.

DIM

inches

mm

A0.410 MAX.

10.16 MAX.

B0.080 MAX.

2.03 MAX.

C0.300 MAX.

7.62 MAX.

D0.050 TYP.

1.27 TYP.

E0.085 TYP.

2.16 TYP.

F0.050 TYP.

1.27 TYP.

G0.025 TYP.

0.64 TYP.

PIN CONNECTIONS

Pin

Connection

23,24

Ground

5,6

13,14

Output

All Others NC

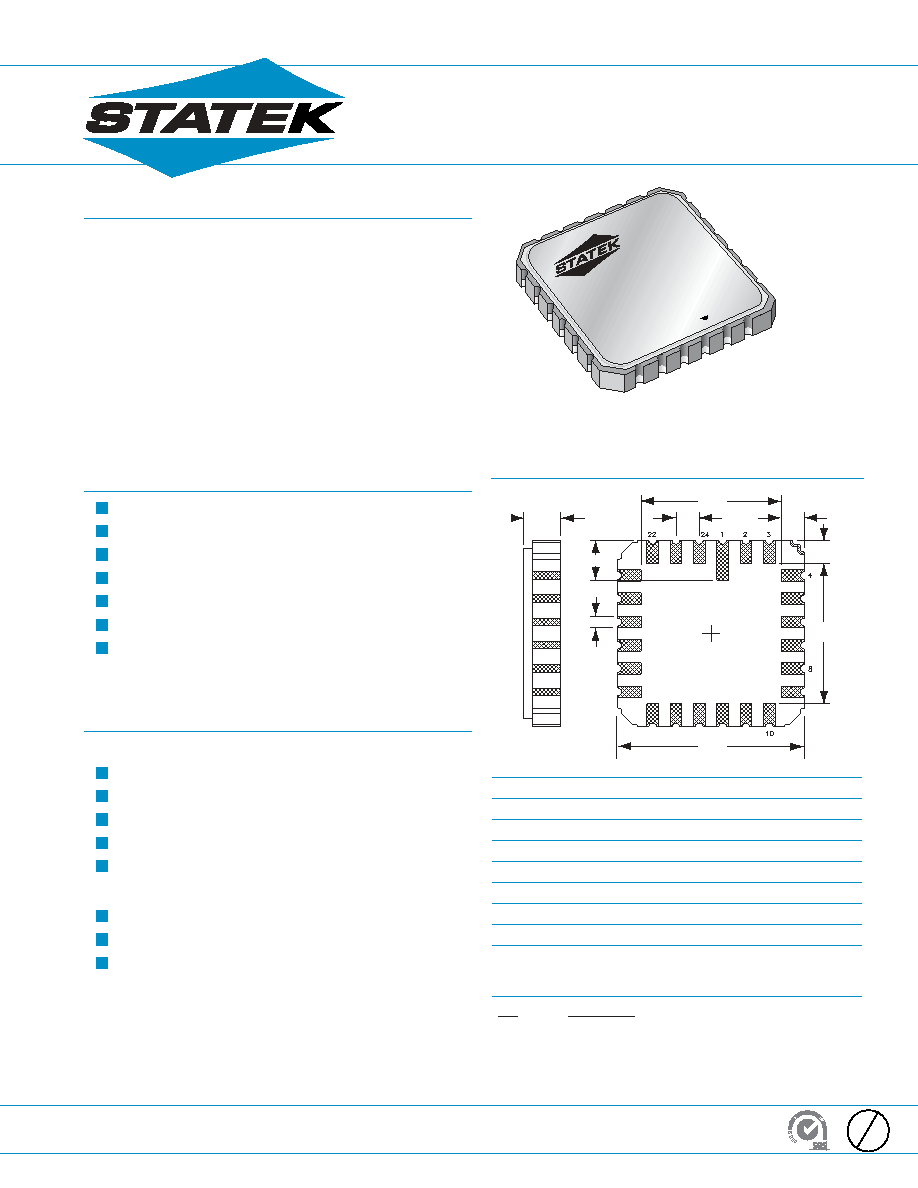

PACKAGE DIMENSIONS

B

D

D

C

A

C

E

G

F

16
