SDT400-R/H/S/TR

Rev 2.01 (07/29/2013)

001612

SDT400-R

DC Input

80V

Photo-Transistor Optocoupler

Parameter

Symbol

Min.

Typ.

Max.

Units

Test Conditions

Input Specifications

LED Forward Voltage

VF

-

1.2

1.4

V

IF = 20mA

LED Reverse Voltage

BVR

6

-

-

V

IR = 10μA

Terminal Capacitance

Ct

-

30

250

pF

V=0, f=1KHz

Input Reverse Current

IR

-

-

10

A

VR=4V

Output Specifications

Collector-Emitter Voltage

VCEO

80

-

-

V

IC=100A

Emitter-Collector Voltage

VECO

6

-

-

V

IE=10A

Collector Dark Current

ICEO

-

-

100

nA

VCE=20V

Collector Current

IC

2.5

-

30

mA

IF=5mA, VCE=5V

Floating Capacitance

Cf

-

0.6

1.0

pF

VCE=0, f=1MHz

Cut-Off Frequency

fC

-

80

-

kHz

VCE=5V, IC=2mA, RL=100-3dB

Saturation Voltage

VCE(sat)

-

0.1

0.2

V

IF=20mA, IC=1mA

Coupled Specifications

Rise Time

TR

-

4

-

S

IC=2mA, VCC=2V, RL=100

Fall Time

TF

-

3

-

S

IC=2mA, VCC=2V, RL=100

Current Transfer Ratio

CTR

50

-

600

%

IF=10mA, VCE=5V

CTR Classification (BINNING)

- C

100

-

400

%

IF=10mA, VCE=5V

- E

50

-

600

%

IF=10mA, VCE=5V

Isolation Specifications

Isolation Voltage

VISO

5000

-

-

VRMS

RH ≤ 50%, t=1min

Input-Output Resistance

RI-O

-

10

12

-



VI-O = 500VDC

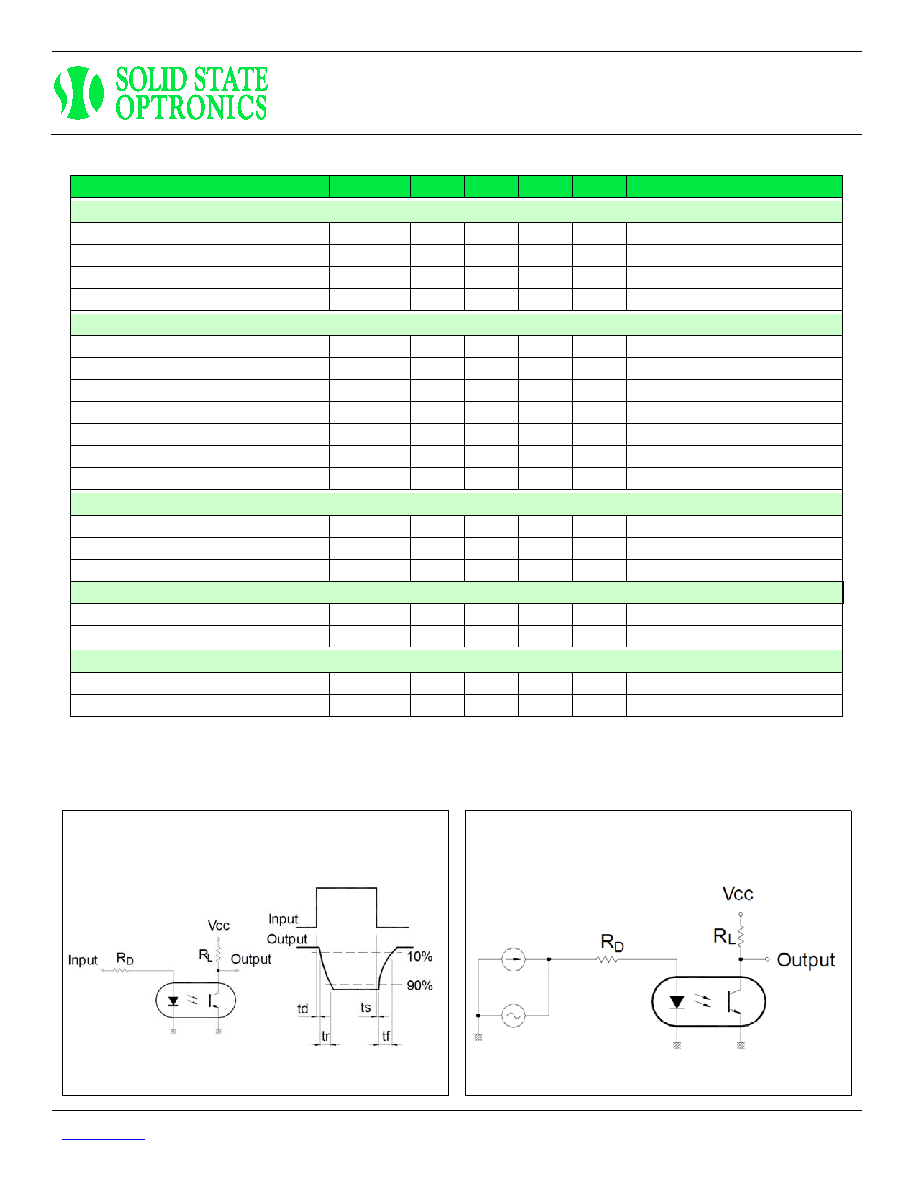

Electrical Characteristics, TA = 25°C (unless otherwise specified)

Test Circuit: Response Time

Test Circuit: Frequency Response
