D3633-S mITX

Industrial Series

The Motherboard D3633-S mITX offers the perfectly right-sized

solution for all industrial needs and supports the powerful Intel®

Core™ i9/i7/i5/i3 (8th/9th Gen) and the Intel® Pentium®/

Intel® Celeron® processor series. It is equipped with the highly

performant Intel® Q370 Express Chipset and guarantees highest

functionality on a small-sized surface with Intel® AMT 12.0 and

vPro support, 2x Intel® GbE LAN and BIOS configurable PCI Ex-

press® Lane. It is designed and approved for enhanced operating

temperature range up to 60 °C and for 24/7 continuous operation.

PRODUCT HIGHLIGHTS

 Intel® 8th/9th Gen Core™ Processor Series

 DDR4-2666 SDRAM, max. 64 GByte

 cTDP – Easy & flexible reduction of CPU TDP

 Supporting Intel® AMT 12.0/vPro

 PCI Express® x16 (Gen.3)

 2x Intel® GbE LAN (incl. Teaming)

 Intel® UHD Graphics (DX12)

 1x DVI-D, 2x DP V1.2, eDP V1.4 and Dual Channel LVDS

 Intel® High Definition 5.1 Audio; Infineon TPM V2.0

 8 Bit GPIO; 2x COM port (incl. RS-422/RS-485 support)

 6x USB 2.0, 4x USB 3.1 Gen1, 2x USB 3.1 Gen2,

1x USB 3.1 Gen2 stick socket

 4x SATA-III incl. RAID support & M.2

(PCIe-based SSD modules 2242, 2260, or 2280)

 Mini-PCIe socket (halfsize/fullsize support)

 Dual Power Supply (ATX compliant or single 12 V DC)

 BIOS-POST/-Boot & OS – HW Watchdog onboard

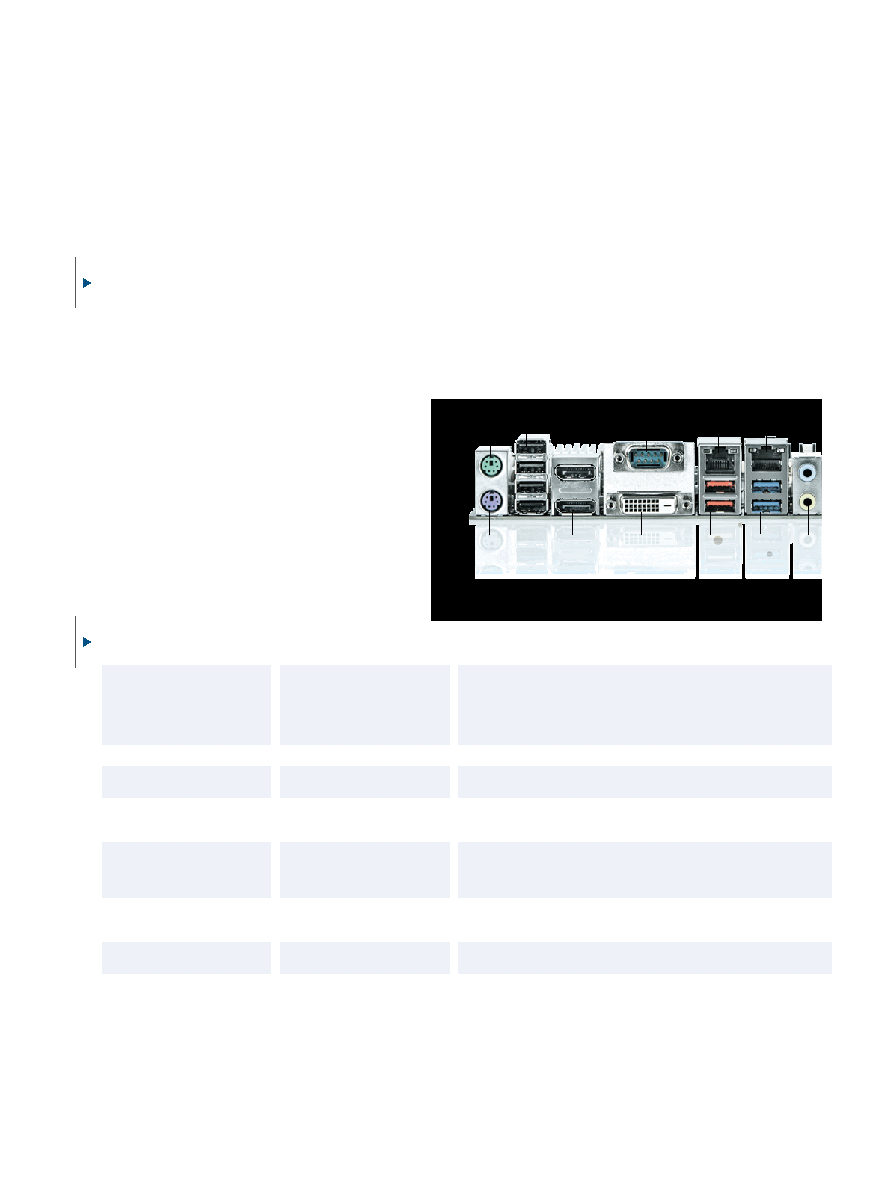

Kbd

DVI-D

2x DP V1.2

2x USB 3.1

Gen2

2x USB3.1

Gen1

Audio

COM1

LAN2

Mouse 4x USB 2.0

LAN1 (iAMT)

TECHNICAL INFORMATION

SYSTEM

PROCESSOR

CHIPSET

MEMORY

Intel® Core™ i9/i7/i5/i3 (8th/9th Gen) processor series

Intel® Pentium®/Intel® Celeron® processor series

Socket LGA1151 – up to 95 W TDP

Intel® Q370 Chipset

DDR4-2666, Dual Channel

2 SO DIMM sockets, up to 64 GByte memory

VIDEO

GRAPHICS

Intel® UHD Graphics, DX12

AUDIO

AUDIO CODEC

AUDIO INTERFACE

Realtek ALC671

5.1-channel, High Definition Audio Codec

NETWORK CONNECTION

ETHERNET

Intel i219LM & i210AT with 10/100/1000 MBit/s, AMT 12.0 / vPro Support

Wake-on-LAN (WoL) by interesting Packets, Link Status Change and

Magic Packet™, PXE Support, BIOS MAC Address Display, Teaming Support

PERIPHERAL CONNECTION

USB

SERIAL PORT

OTHER I/Os

4x USB 2.0, 2x USB 2.0 (by header), 2x USB 3.1 Gen1, 2x USB 3.1 Gen1 (by

header), 2x USB 3.1 Gen2, 1x USB 3.1 Gen2 stick socket

1x RS232, 1x RS232/422/485 (by header)

GPIO (by header)

STORAGE & EXPANSION

SATA

PCIE/PCI SLOTS

4x Serial ATA III 600 Interface (up to 6GBit/s), NCQ, AHCI, RAID 0/1/5/10,

1x M.2 PCIe (2242/2260/2280), 1x Mini PCIe (halfsize/fullsize)

PCIe x16: 1x Gen3, Support for lane split (8+8 or 8+4+4)

POWER

CONNECTOR

INPUT VOLTAGE

ATX Power Supply

ATX (Multirail) or Single 12 V

FIRMWARE

BIOS

WATCHDOG

REAL TIME CLOCK

TPM

AMI Aptio 5.x (UEFI) BIOS

modified and adapted by Fujitsu Technology Solutions; Recovery BIOS,

SM-BIOS (DMI), BIOS and CPU Microcode Update, Quick Boot, Logo Boot,

Quiet Boot, Plug & Play, Automatic DRAM and PCIe Configuration, BIOS

Support for S.M.A.R.T., Advanced Power Management, ACPI S3/S4, Wake on

time from S5. HW Watchdog support & BIOS integrated HW Diagnostic Tool.

No legacy OS support, no MBR installation (UEFI only due to Intel restrictions)

3-Level Watchdog (BIOS/BIOS Post/OW HW)

Integrated

TPM V2.0 (Infineon; TCG compliant)
