PS21661-RZ/-FR

Intellimod™ Module

Single-In-Line Intelligent Power Module

3 Amperes/600 Volts

2

Powerex, Inc., 200 E. Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272

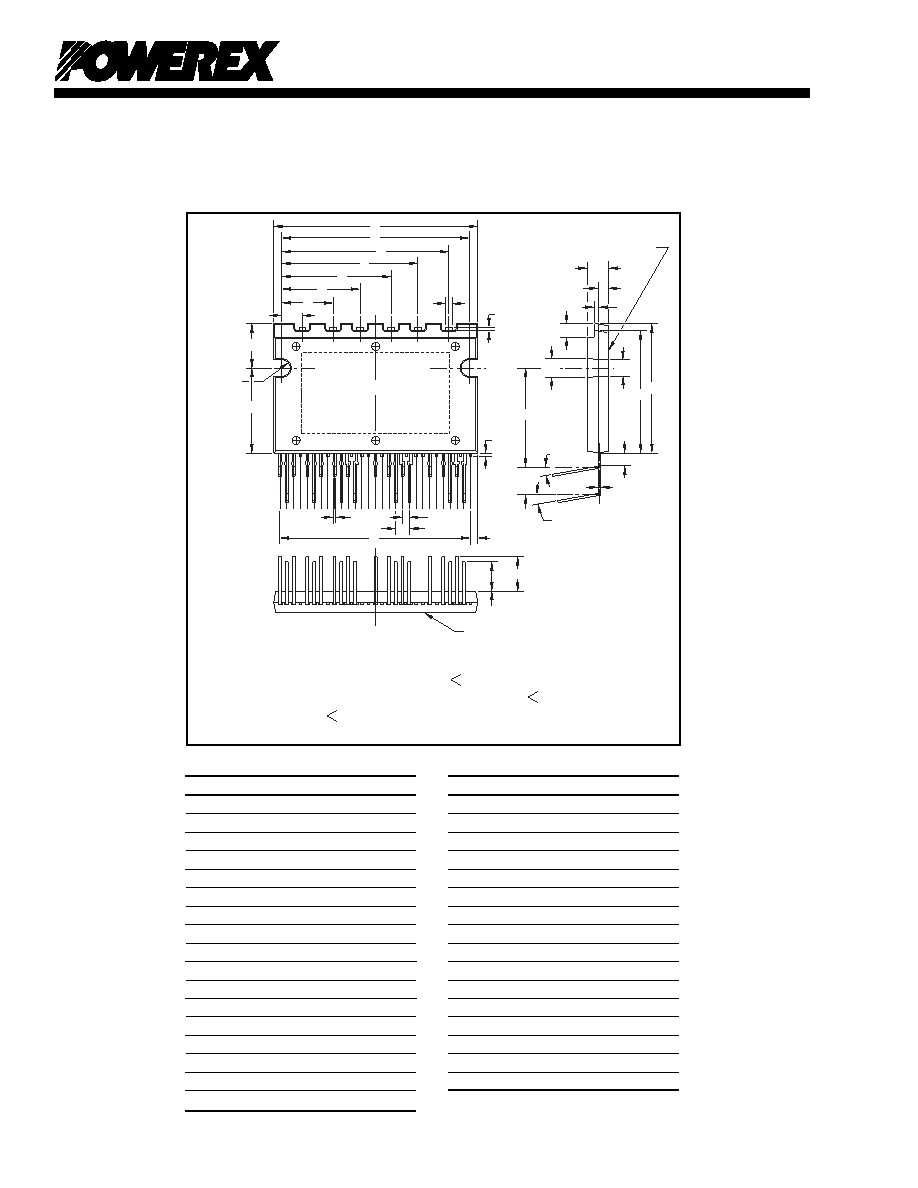

Outline Drawing and Circuit Diagram

Dimensions

Inches

Millimeters

A

1.50

38.0

B

0.94

24.0

C

0.16

4.0

D

1.38

35.0

E

0.33

8.5

F

0.61

15.5

G

0.15

3.8

H

0.38

9.6

J

0.57

14.6

K

0.80

20.4

L

1.00

25.4

M

1.23

31.2

N

0.047

1.2

P

0.028

0.7

Q

1.39

35.28

R

0.048

1.22

S

0.05

1.27

Dimensions

Inches

Millimeters

T

0.10

2.54

U

0.02

0.5

V

0.06

1.6

W

0.07

1.9

X

0.03

0.8

Y

0.11

2.7

Z

0.90

22.8

AA

0.71

18.1

AB

0.20

5.08

AC

0.016

0.4

AD

0.09

2.4

AE

0.22

5.5

AF

0.26

6.5

AG

0.14

3.6

AH

0.13

3.3

AJ

0.028

0.7

A

D

M

L

K

J

H

G

N

P

Y

C

X

HEATSINK SIDE

W

E

F

US

T

QR

AE

AF

HEATSINK SIDE

AB

AA

AD

AC

Z

B

AH

AG

AJ

V

(2 PLACES)

7 VN1

8 NC

9 WN

10 VWFB

11 WP

12 W(VWFS)

25 UN

26 VUFB

27 UP

28 U(VUFS)

29 NC

30 NC

WPG

TERMINAL CODE

1 N

2 P

3 FO

4 NC

5 VNC

6 CIN

13 NC

14 NC

15 VN1

16 NC

17 VN

18 VVFBV

19 VP

20 V(VVFS)

21 NC

22 NC

23 VN1

24 NC

VPG

UPG

31 NC

32 NC

33 NC

34 NC

35 NC

30

31

32

33

34

35

13

25

47

69

811

10

13

12

15

14

17

16

19

18

21

20

22 23 24

29

27 28

25 26

0°

+10°

-0°

0°

+10°

-0°

PS21661-FR
