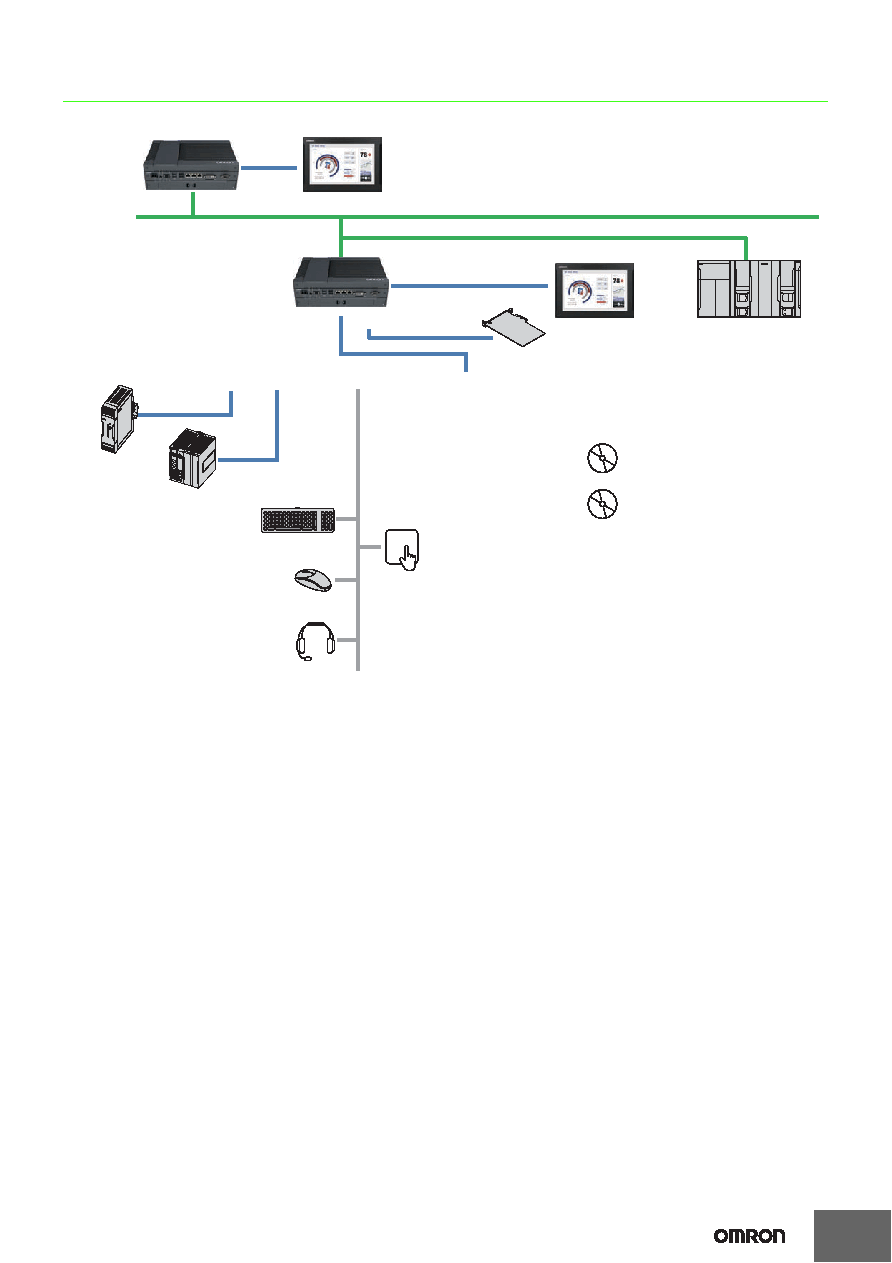

System Configuration

* NY Monitor Link option: Connect monitor up to 100 m via Ethernet cable.

Industrial Monitor Software

(eg. brightness control, control

setting, etc.)

Industrial PC software

DVI or DisplayPort++

DVI-D or DisplayPort++, COM,

GigE LAN, NY Monitor Link

*

PCIe Card

3xEthernet

4x USB(2.0/3.0/3.1 Gen1)

I/O

PWR

(eg. S8VK-S)

(eg. S8BA)

UPS

KEYBOARD

MOUSE / TRACKBALL

AUDIO

TOUCHSCREEN

Industrial Box PC

Industrial Monitor

SCADA

MES/ERP

Ethernet

Industrial Box PC

Industrial Monitor

PCIe

(eg. NY-series)

MACHINE

LEVEL

Controller

(eg. NJ, NX, CP, CJ, CS-series)

(eg. PC support utility, tray utility, etc.)
