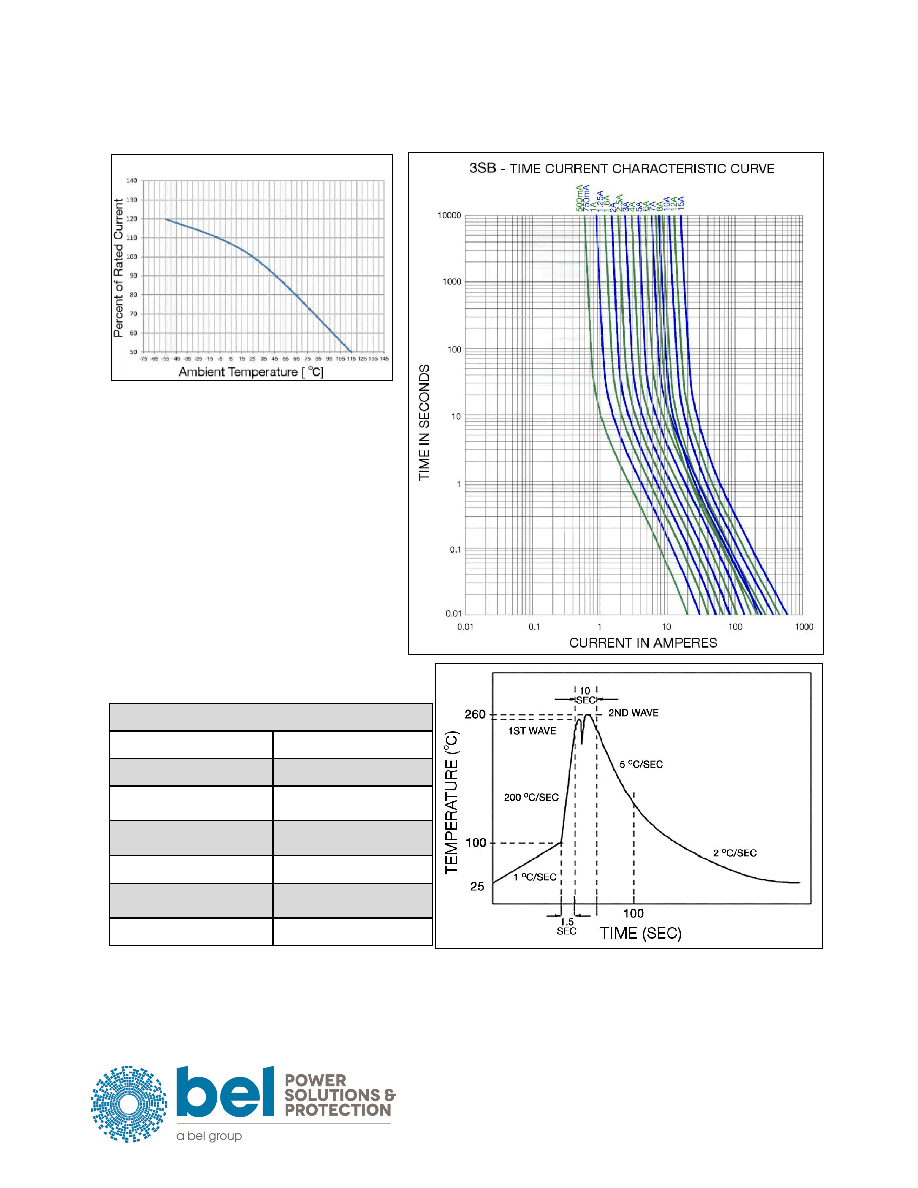

Temperature Derating Curve

Average Time Current Curve

Soldering Parameters

Lead-free Wave Soldering Profile

Wave Soldering Parameter

Average ramp-up rate

200℃ / second

Heating rate during preheat

typical 1 - 2℃ / second

Max 4℃ / second

Final preheat temperature

within 125℃ of soldering

temperature

Peak temperature Tp

260℃

Time within +0℃ / -5℃ of

actual peak temperature

10 seconds

Ramp-down rate

5℃ / second max.
