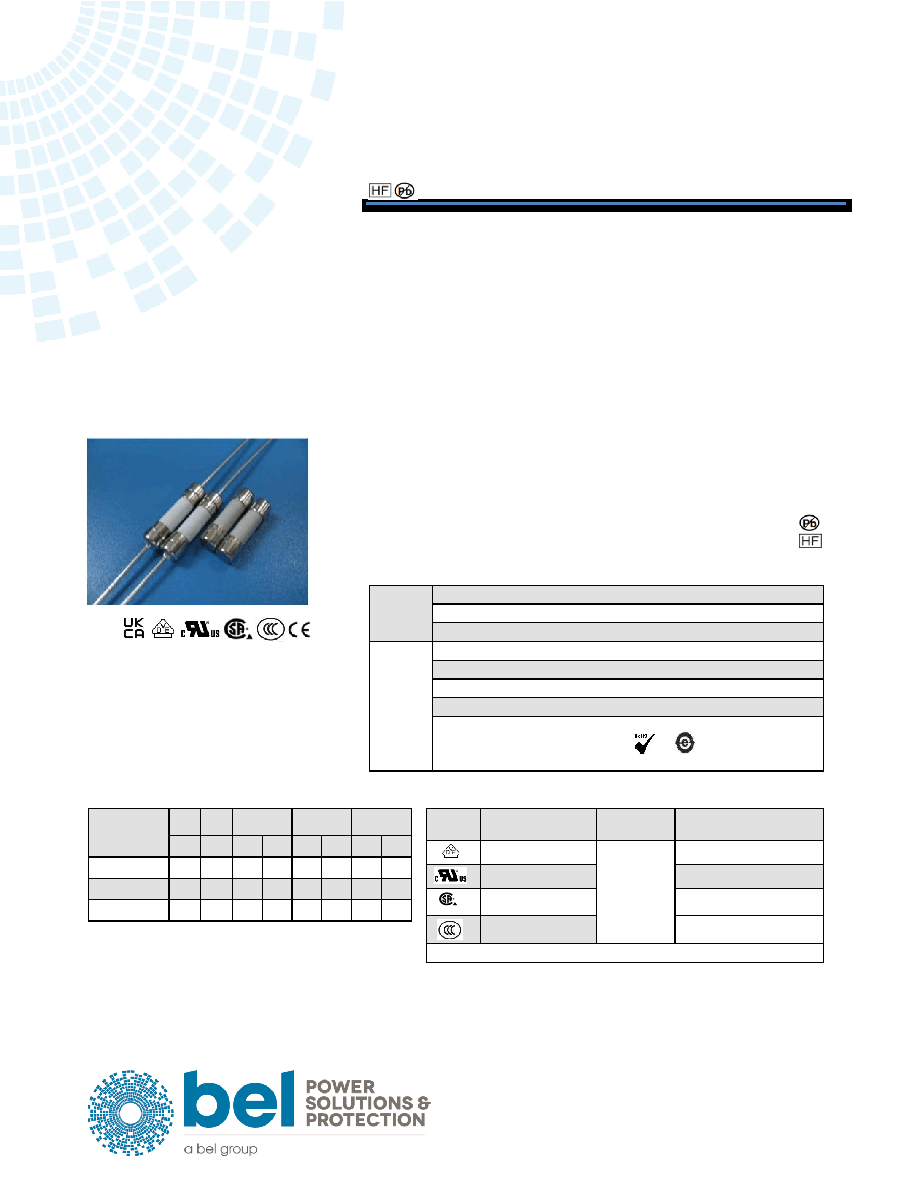

Type 5HT / 5HTP

Time-lag Fuse Series (High -Breaking Capacity)

belfuse.com/circuit-protection

5HT/5HTP Series, 5x20mm Ceramic Tube Time-Lag Fuse

RoHS Compliant

Description

5x20mm Time-Lag surge withstand, high breaking capacity, ceramic body cartridge

fuse designed, approved and complied with IEC 60127-2,standard sheet 5.

Features

- High breaking capacity (250V ac @1500A)

- Meet IEC standard 60127-2, sheet 5

- Wide operating temperature range

- Bulk and Tape & Reel packing available

- Full compliance with EU Directive 2011/65/EU and amending directive 2015/863

- Halogen Free

- Lead Free

Applications

Provide individual protection for components or internal circuits.

- Power supplies

- Battery charger

- Monitor

LEAD FREE =

- Adapter

HALOGEN FREE =

Physical Specifications

Electrical Characteristics (IEC-127-2 STANDARD SHEET 5) Safety Agency Approvals

Rated Current

1.5 In 2.1 In

2.75 In

4 In

10 In

MIN MAX MIN MAX MIN MAX MIN MAX

250mA to 3.15A

1

30

1

80

95

5

10

100

4A to above

1

30

1

80

150

5

20

100

hr.

min.

sec

sec

ms

sec

ms

ms

In clause 9.2, the test voltage for 5HTP ratings from 1A to 6.3A

is 63VDC.

Materials

Body : Ceramic

Cap : Nickel Plated Brass Caps

Leads : Matte Tin Plated Copper

Marking

On Fuse :

“bel”, ”T”, ”Current Rating”, “H”,”250V”,

”Appropriate Safety Logos”, ”

 ”（ RoHS compliant）

On Label :

"bel", "5HT

”or”5HTP",”T”, "Current Rating", ”H”, "Voltage Rating", "Interrupting

Rating","Appropriate Safety Logos" and "

", "

"(China RoHS

compliant).

Safety

Agency

Safety Agency

Certificate

Ampere Rating/

Voltage Rating

Ampere Range / Volt

@ I.R. ability*

40000505

250mA-10A

/250V AC

1A-10A/250V AC@1

ˌ500A

E506667

250mA-

10A/250V AC@1ˌ500A

LR39772

250mA-

10A/250V AC@1ˌ500A

Self-declaration No:

2020970207000127

250mA-10A/250V AC@1

ˌ500A

*I.R.= Interrupting Rating = Short Circuit Rating(Amps)
