1 / 3 page

1

Panel Meter for

Frequency, Rate, Total

or Period Counter

6-Digit, 1⁄8 DIN Panel Mount

DPF20 Series TM

U

Dual Channel

(A + B + Reset)

U

Option for Wall

Mounting

U

NEMA 4 (IP65)

Front Panel

U

Power Options of

85 to 260 Vac and

11 to 60 Vdc

U

Excitation Power

Supply of 5 to 18 Vdc

@ 70 mA

U

Optional Outputs:

Modbus®, Up to

6 Relays, Analog,

SSR Drive, RS485

and RS232

Applications

U

Industrial Flow Rate

or Total Indication and

Alarm or Control

U

Angular Position or

RPM Indication (with

Quadrature Sensor)

U

Product/Piece Counting

or Production Rate

Indication

Omega’s new DPF20 Series of

indicators offer real flexibility for

measurement of a wide range of

frequency or pulse inputs. The

display is easily configured to

indicate frequency, rate, period

or count. This makes the meter

ideal for flow applications where

they can display flow rate or total

from a variety of different flow

sensors. Or for quadrature signals,

to indicate angular position or

rotational speed and direction.

The DPF20 series offers

exceptional performance at an

economical price, with some

unique and powerful features,

summarized in the table on

page 3.

Specifications

Main Functions: Counter,

ratemeter, period meter

Display Digits: 6

Display Range: 999999/-199999

Decimal Point: Configurable

LED Color: Red standard;

green optional

Digit Height: 14 mm (0.55")

Signals Accepted: NPN, PNP,

Namur, pick-up, TTL, inductive,

mechanical, quadrature

Excitation Voltage: 5 Vdc, 9 Vdc,

15 Vdc, 18 Vdc (max. 70 mA)

Maximum Vdc at Input Terminals:

±30 Vdc

Input Impedance: 2.4 kΩ with

pull-up or pull-down resistor; 470 k

without resistor

Quartz Accuracy: ±0.01%

Thermal Stability: 20 ppm/ºC

Display Refresh: 15/second

Maximum Frequencies:

Counter: Up to 250 KHz

Ratemeter and Period Meter: Up

to 500 KHz

Minimum Frequencies: Down to

1 mHz (0.001 Hz) (ratemeter and

period meter)

Standard Power: 85 to 265 Vac/DC

(isolated 2,500 Vac)

Low Power: 11 to 60 Vdc and 24/48

Vac (isolated 1500 Vac)

Power Consumption: <1.5 W (meter

only); < 4.0 W (meter with options)

Connections: Plug-in screw terminal

Slow Function: For low frequency

rate meter applications

Fast Function: For high frequency

counter applications

Scaling Factor: Multiplier and divider

from 1 to 999999

Configurable Reset: Front panel and

rear remote reset, and reset linked to

alarm activation

Preset: Configurable

Retention Memory: Recovers count

value in case of power loss

Dimensions and

Environment

Weight: <150 grams (<5.3 oz)

Front Panel Size: 96 x 48 mm

(3.78 x 1.89")

Panel Cut-Out: 92 x 44 mm

(3.62 x 1.73")

Depth Behind Panel: 91 mm (3.58")

including terminals

Operating Temperature: 0 to 50ºC

(32 to 122ºF)

Storage Temperature: -20 to 70ºC

(-4 to 158ºF)

Warm Up: 15 minutes

Front Panel Protection: NEMA 4

(IP65)

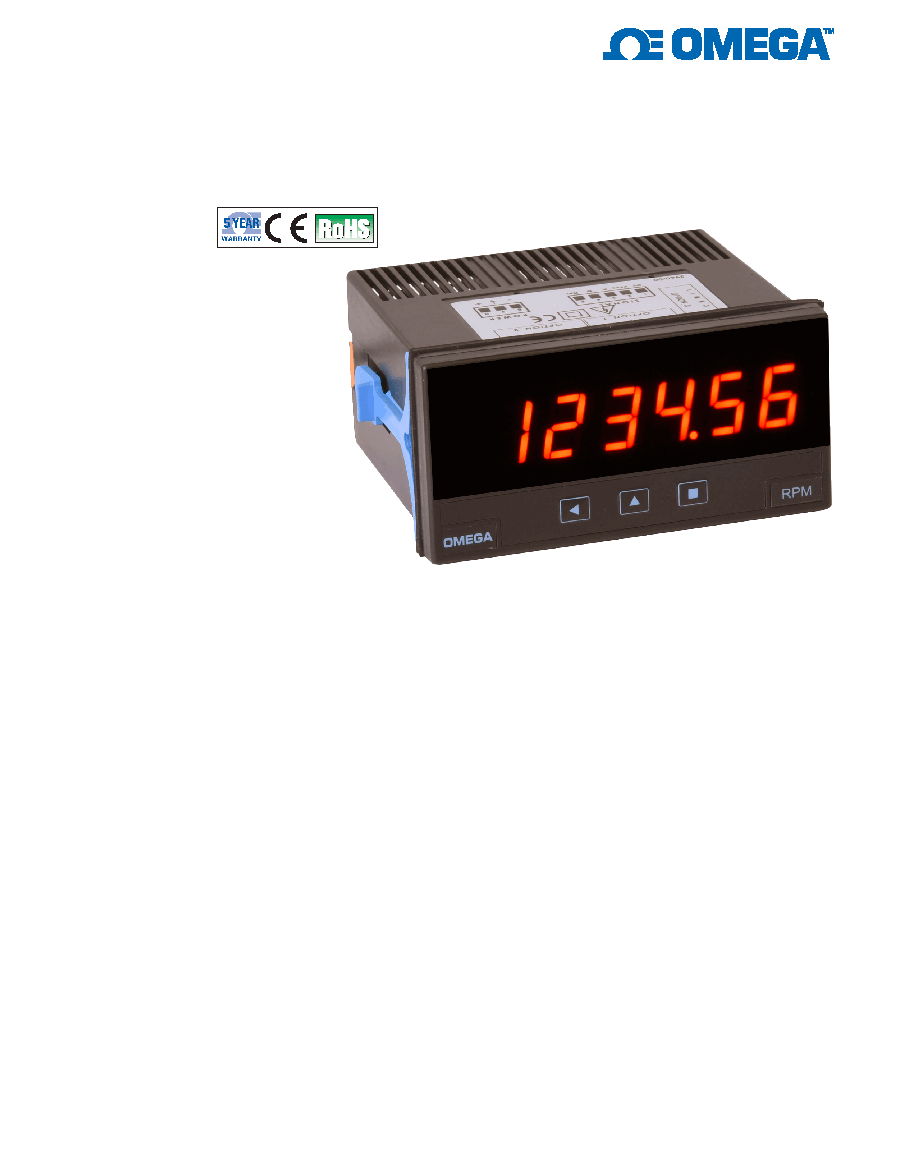

DPF20-LV shown actual size.
