General Accessories

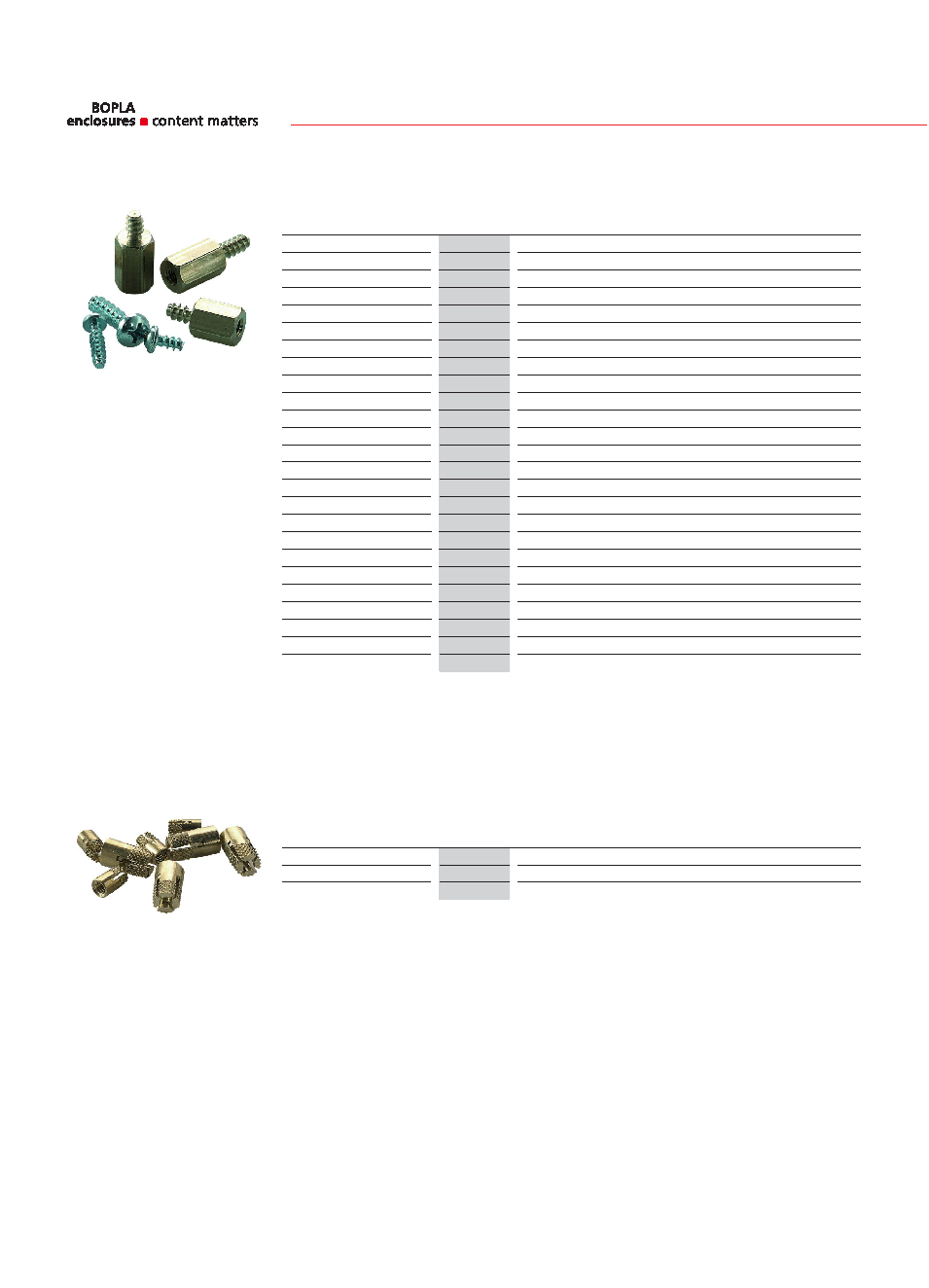

Screws (SHR) and distance bolts (DIBLZ) for mounting bosses in plastic enclosures

Model

Order no.

Note

DIBLZ AK 30x5/IM3/10

59006986

ND = 2,4-2,6, length 10mm, SW 5,5

SHR Z KA22x6

59006195

SD = 2.2 / ND = 1.7-1.8 / KD = 3.9

SHR Z KA25x6

59006190

SD = 2.5 / ND = 2.0 / KD = 4.4

SHR Z KA30x6

59006219

SD = 3.0 / ND = 2.4-2.6 / KD = 5.3

SHR Z KA30x8

59006217

SD = 3,0 / ND = 2,4-2,6 / KD = 6,0

SHR Z KA35x6

59006209

SD = 3.5 / ND = 2.8 / KD = 7.0

SHR Z KA35x8

59006210

SD = 3.5 / ND = 2.8 / KD = 6.1

SHR Z KA35x10

59006220

SD = 3.5 / ND = 2.8 / KD = 6.1

SHR Z B4,5x7,8

59006101

SD = 4.5 / ND = 4.0 / KD = 7.5

SHR Z KA50x10

59006240

SD = 5.0 / ND = 4.3 / KD = 8.2

SHR Z B6,3x9,5

59006110

SD = 7.0 / ND = 5.5 / KD = 12.5

SHR Z M4x8

59005049

KD = 8

DIBLZ AK 30x5/IM3/8

59006985

ND = 2,4-2,6, length 8mm, SW 5,5

DIBLZ AK 30x7/IM3/8

59006987

ND = 2,4-2,6, length 8mm, SW 5,5

DIBLZ AK 30x7/IM3/10

59006988

ND = 2,4-2,6, length 10mm, SW 5,5

DIBLZ AK30x7/IM3/26

59006922

ND = 2,4-2,6, length 26mm, SW 5,5

DIBLZ AK30x5/IM3/28

59006921

ND = 2,4-2,6, length 28mm, SW 5,5

DIBLZ AK30x7/IM3/36

59006998

ND = 2,4-2,6, length 36mm, SW 6

DIBLZ AK30x7/IM3/56

59006924

ND = 2,4-2,6, length 56mm, SW 5,5

DIBLZ AK30x5/IM3/58

59006923

ND = 2,4-2,6, length 58mm, SW 5,5

DIBLZ AK30x7/IM3/74

59006926

ND = 2,4-2,6, length 74mm, SW 5,5

DIBLZ AK30x5/IM3/76

59006925

ND = 2,4-2,6, length 76mm, SW 5,5

DIBLZ AK30x7/IM3/86

59006927

ND = 2,4-2,6, length 86mm, SW 5,5

DIBLZ AK30x5/IM3/88

59006928

ND = 2,4-2,6, length 88mm, SW 5,5

Scope Of Delivery: 1 piece

Notes: Explanation of the table: SD = screw diameter; ND = boss internal diameter; KD = screw head diameter. All

dimensions in mm. In most BOPLA plastic enclosures, mounting bosses without threaded bushings are provided as

mounting points. Screws with a self-tapping thread must be selected accordingly. When selecting screws, note the

details of the boss internal diameters (see drawings on internet) and the drilling depth. The tightening torques for

plastic depend on screw-in depth, screw-in speed, accuracy of torque switch-off of the power screwdriver, etc., so

it is not possible to provide general data about the tightening torques.

Threaded inserts, brass, for mounting bosses in plastic enclosures

Model

Order no.

Note

DODGE M3x6,5

59002810

ND = 4.0 x 6.5

DODGE M4x9,5

59002820

ND = 5.4 x 9.5

Scope Of Delivery: 1 threaded insert

Notes: Explanation of the table: ND = boss internal diameter Mounting instructions: Insert the connector into the

boss until it reaches the bottom. Then flatten the plate using a pin. It is very difficult to remove fitted threaded

connectors. With reference to the directive relating to electronic scrap, recycling of the enclosure is very expensive.

For this reason, it is not possible for us to take back enclosures which have subsequently been processed in this

way.
