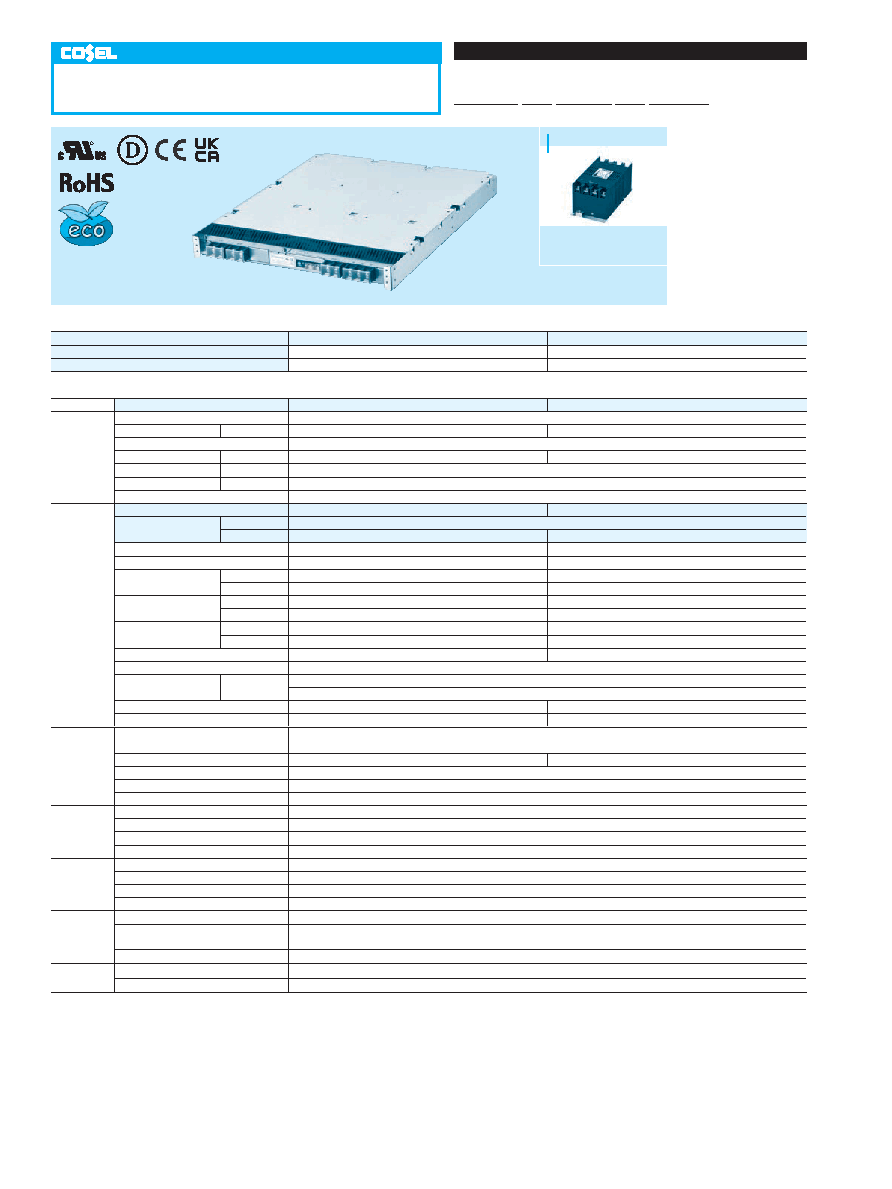

FETA-12

FET A 7000 ST -OO

1

2

3

4

5

FETA7000ST

AC-DC Power Supplies Enclosed Type

Ordering information

1Series name

2Single output

3Output wattage

43f 4-Wire

5Output voltage

R

MODEL

FETA7000ST-48

FETA7000ST-144

MAX OUTPUT WATTAGE[W]

*1

7113

7488

DC OUTPUT

48V 148.2A

144V 52A

SPECIFICATIONS

MODEL

FETA7000ST-48

FETA7000ST-144

INPUT

VOLTAGE[V]

AC300 - 480 3f4-Wire (Output derating is required at AC300V - 320V. Refer to “Derating”)

CURRENT[A]

ACIN 400V

*2

11.4typ

12.0typ

FREQUENCY[Hz]

50 / 60 (47 - 63)

EFFICIENCY[%]

ACIN 400V

90.5% (Io=100%)

90.5% (Io=100%)

POWER FACTOR

ACIN 400V

0.98typ (Io=100%)

INRUSH CURRENT[A]

ACIN 400V

*3

40max / 80max (Primary inrush current /Secondary inrush current) (More than 10 sec. to re-start)

LEAKAGE CURRENT[mA]

5.0max (ACIN 480V 60Hz, Io=100%, According to IEC62368-1)

OUTPUT

VOLTAGE[V]

48

144

CURRENT[A]

ACIN 300V-320V Output derating is required at ACIN 320V or less (refer to “Derating”)

ACIN 320V-480V 148.2

52

LINE REGULATION[mV]

192max

360max

LOAD REGULATION[mV]

960max

1800max

RIPPLE[mVp-p]

0 to +40C *4 360max

720max

-10 to 0C

*4

480max

960max

RIPPLE NOISE[mVp-p]

0 to +40C *4 480max

960max

-10 to 0C

*4

600max

1200max

TEMPERATURE REGULATION[mV]

0 to +40C

480max

2200max

-10 to +40C

600max

2800max

DRIFT[mV]

*5

192max

384max

START-UP TIME[s]

1.7max (ACIN 400V, Io=100%)

HOLD-UP TIME[ms] ACIN 400V

10typ (Io=100%)

20typ (Io=50%)

OUTPUT VOLTAGE ADJUSTMENT RANGE[V] *6 28.8 - 52.8 *7

86.4 - 158.4 *8

OUTPUT VOLTAGE SETTING[V]

47 - 49

141 - 147

PROTECTION

CIRCUIT AND

OTHERS

OVERCURRENT PROTECTION

Works over 105% of rating (Recovers automatically, Hiccup overcurrent)

(Output voltage shuts down when the output voltage continuously drops due to overcurrent protection.) *9

OVERVOLTAGE PROTECTION[V]

*9

56 - 60

168 - 180

DC_OK LAMP

LED (Green)

ALARM LAMP

LED (Amber)

REMOTE ON/OFF

Provided

ISOLATION

INPUT-OUTPUT-AUX-RC-WRN-PG

AC3,000V 1minute, Cutoff current = 100mA, DC500V 50MW min (At room temperature)

INPUT-FG

AC2,000V 1minute, Cutoff current = 100mA, DC500V 50MW min (At room temperature)

OUTPUT-AUX-RC-WRN-PG-FG

AC500V 1minute, Cutoff current = 100mA, DC500V 50MW min (At room temperature)

OUTPUT-AUX-RC-WRN-PG

AC100V 1minute, Cutoff current = 100mA, DC100V 50MW min (At room temperature)

ENVIRONMENT

OPERATING TEMP.,HUMID.AND ALTITUDE -10 to +60C (Refer to “Derating”), 20 - 90%RH (Non condensing), 3,000m (10,000 feet) max

STORAGE TEMP.,HUMID.AND ALTITUDE -20 to +75C, 20 - 90%RH (Non condensing), 9,000m (30,000 feet) max

VIBRATION

10 - 55Hz, 19.6m/s2 (2G), 3minutes period, 60minutes each along X, Y and Z axis

IMPACT

196.1m/s2 (20G), 11ms, once each along X, Y and Z axis

SAFETY AND

NOISE REGULATIONS

AGENCY APPROVALS

UL62368-1, C-UL (CSA62368-1), EN62368-1

CONDUCTED NOISE

Complies with FCC Part15-A, CISPR32-A, EN55032-A, VCCI-A with an external EMI/EMC filter. (refer to

Instruction manual)

HARMONIC ATTENUATOR

Complies with IEC61000-3-2 Class A *10

OTHERS

CASE SIZE/WEIGHT

*11

388X43X475mm [15.28X1.69X18.70 inches] (WXHXD) / 11kg max

COOLING METHOD

Forced cooling (internal fan)

*1

AUX output power is not included.

*2

The current flowing through the neutral line increases when AC input voltage is over

AC456V 3f 4-Wire. The flowing current will vary according to the input voltage and the

load current. The maximum flowing current will be 18A.

*3

The current of input surge to a built-in noise filter (0.2ms or less) is excluded.

*4

Measured by 500MHz oscilloscope.

Ripple and ripple noise is measured on measuring board with capacitor of 22mF within

150mm from the output terminal.

*5

Drift is the change in DC output for an eight hour period after a half-hour warm-up at 25C,

with the input voltage held constant at the rated input/output.

*6

Can't be used above the rated output current and the rated output power.

*7

When the output voltage is adjusted to higher than 49.92V and the load factor is over 70%

of the rated current, if the load current changes quickly (< 200msec), the output voltage

drops approximately 5V below the setting voltage.

*8

When the output voltage is adjusted to higher than 149.82V and the load factor is over 70%

of the rated current, if the load current changes quickly (<200msec), the output voltage

drops approximately 15V below the setting voltage.

*9

Output voltage recovers from protection by shutting down the input voltage and waiting

more than 10 seconds then turning on AC input again, or turning off the output voltage by

remote control.

*10 Please contact us about another class.

*11 Case size contains neither the terminal blocks, connector and screw.

*

To meet the specifications, do not operate over-loaded condition.

*

A sound may occur from power supply at peak loading.

*Make sure necessary tests will be carried out on your end equipment with the power supply installed in accordance with any required EMC/EMI regulations.

Example recommended EMI/EMC filter

YAC-25-685

*A higher current rating EMI/EMC filter

may be recommended in view of the

other devices that could be connected

in parallel with the power supply.

July 13, 2023
