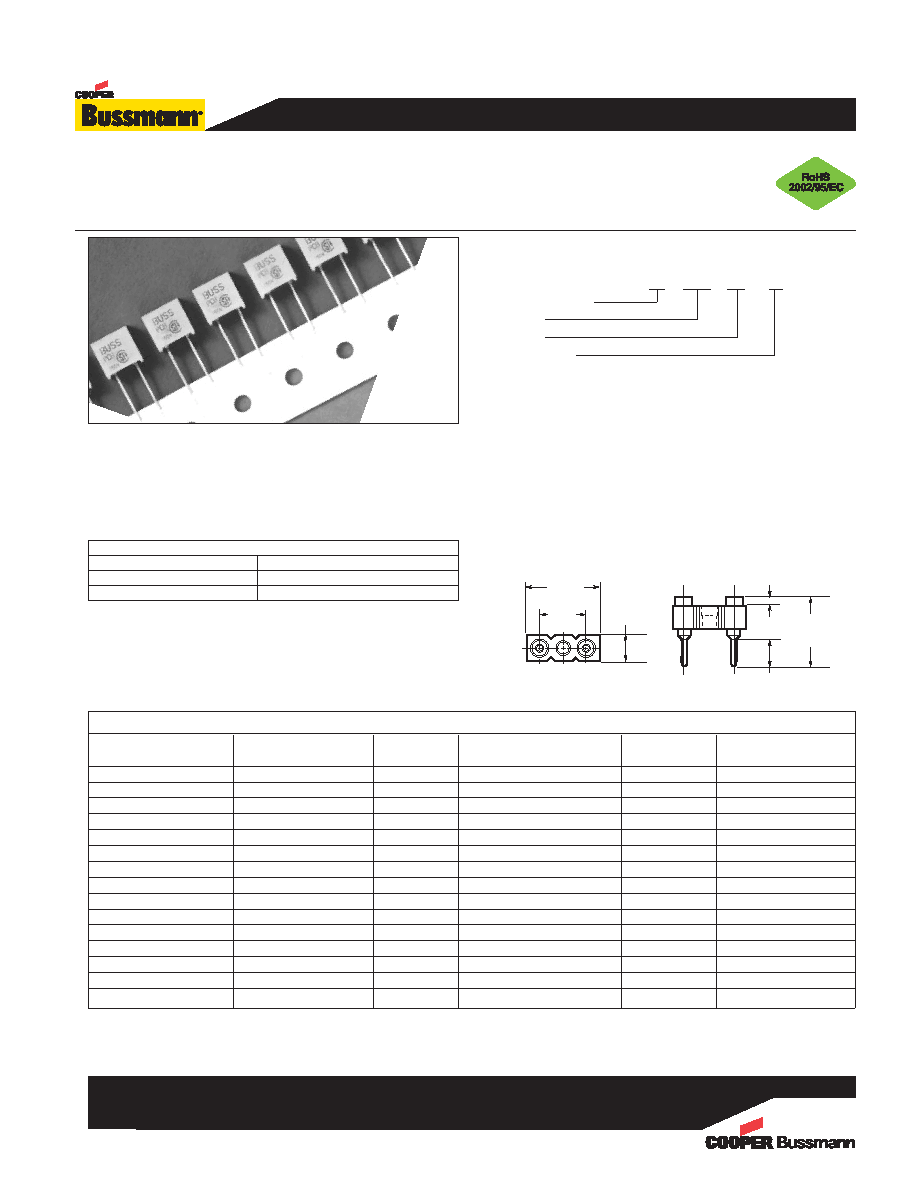

Subminiature, Radial Leaded, Fast-Acting Fuses

PC-Tron Series

0211 BU-SB11083

Page 1 of 2

Data Sheet 2034

Radial Leaded Device

Description

• Radial leaded, fast-acting thru-hole fuse

• Ideal for high voltage DC applications

• Board washable

• Optional mounting socket available (PCS)

• Available in different lead configurations

Specifications

Lead

AC Voltage

AC

DC Voltage

DC Interrupting

Catalog Number

Length

Rating

Interrupting

Rating

Min.

Max.

PCB-1/2, 3/4,1,1-1/2,2,2-1/2

Full - 0.750" (straight)

250V

50A@250V - 10kA@125V

450V

300

5900A

PCB-3

Full - 0.750" (straight)

250V

50A@250V

450V

300

4400A

PCB-4

Full - 0.750” (straight)

-

-

450V

300

2500A

PCC-1/2, 3/4,1,1-1/2,2,2-1/2

Short 0.100" (straight)

250V

50A@250V - 10kA@125V

450V

300

5900A

PCC-3

Short 0.100" (straight)

250V

50A@250V - 10kA@125V

450V

300

4400A

PCC-4

Short 0.100" (straight)

-

-

450V

300

2500A

PCD-5

Full - 0.750" (straight)

125V

10kA@125V

400V

300

1000A

PCE-5

Short 0.100" (straight)

125V

10kA@125V

400V

300

1000A

PCF-1/2, 3/4,1,1-1/2,2,2-1/2

0.475"

250V

50A@250V - 10kA@125V

450V

300

5900A

PCF-3

0.475"

250V

50A@250V - 10kA@125V

450V

300

4400A

PCG-5

0.475"

125V

10kA@125V

400V

300

1000A

PCH-1/2, 3/4,1,1-1/2,2,2-1/2

0.125"

250V

50A@250V - 10kA@125V

450V

300

5900A

PCH-3

0.125"

250V

50A@250V - 10kA@125V

450V

300

4400A

PCH-4

0.125"

-

-

450V

300

2500A

PCI-5

0.125"

125V

10kA@125V

400V

300

1000A

Agency Information

• UL Recognized: E19180

• CSA: 42731

AC Time-Current Characteristics

% of Amp Rating

Opening Time

100%

4 hours minimum

200%

10 second maximum

Device designed to carry rated current for four hours minimum. An operating current of 80% or less of rated current is recommended, with further derating required at elevated

ambient temperatures.

0.200"

(5.08mm)

0.300"

(7.62mm)

0.095"

(2.41mm)

0.030"

(2.41mm)

0.12"

0.010"

(3.05mm

0.25mm)

0.290"

(7.37mm)

Part Number System/Ordering - An Option Code Must Be Selected

• Specify packaging code prefix, product and option code suffix

BK

PCB-

1/2

-R

Packaging Code Prefix

Fuse Series

Amp Rating

Option Code Suffix

DC Application

The PC-Tron subminiature fuse is UL Recognized for DC supplementary

overcurrent protection to provide individual protection for components or

internal circuits in equipment. Suitability for a specific application is dependent

on time constants and capacitance values. It is the responsibility of the

customer to evaluate the information provided for applicability to their

particular application.

PCS Mounting Socket (RoHS compliant)

• Available as option. Specify catalog number BK/PCS (100 in a polybag)

and short fuse lead length — PCC or PCE
