Features

Common features

•

STM32 microcontroller in an LQFP64 or LQFP48 package

•

1 user LED shared with ARDUINO®

•

1 user and 1 reset push-buttons

•

32.768 kHz crystal oscillator

•

Board connectors:

–

ARDUINO® Uno V3 expansion connector

–

ST morpho extension pin headers for full access to all STM32 I/Os

•

Flexible power-supply options: ST-LINK USB VBUS or external sources

•

On-board ST-LINK debugger/programmer with USB re-enumeration capability:

mass storage, Virtual COM port, and debug port

•

Comprehensive free software libraries and examples available with the

STM32Cube MCU Package

•

Support of a wide choice of Integrated Development Environments (IDEs)

including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE

Board-specific features

•

External SMPS to generate Vcore logic supply

•

24 MHz or 48 MHz HSE

•

User USB Device full speed, or USB SNK/UFP full speed

•

Cryptography

•

Board connectors:

–

External SMPS experimentation dedicated connector

–

USB Type-C®, Micro-B, or Mini-B connector for the ST-LINK

–

USB Type-C® user connector

–

MIPI® debug connector

Description

The STM32 Nucleo-64 board provides an affordable and flexible way for users

to try out new concepts and build prototypes by choosing from the various

combinations of performance and power consumption features, provided by the

STM32 microcontroller. For the compatible boards, the external SMPS significantly

reduces power consumption in Run mode.

The ARDUINO® Uno V3 connectivity support and the ST morpho headers allow the

easy expansion of the functionality of the STM32 Nucleo open development platform

with a wide choice of specialized shields.

The STM32 Nucleo-64 board does not require any separate probe as it integrates the

ST-LINK debugger/programmer.

The STM32 Nucleo-64 board comes with the STM32 comprehensive free software

libraries and examples available with the STM32Cube MCU Package.

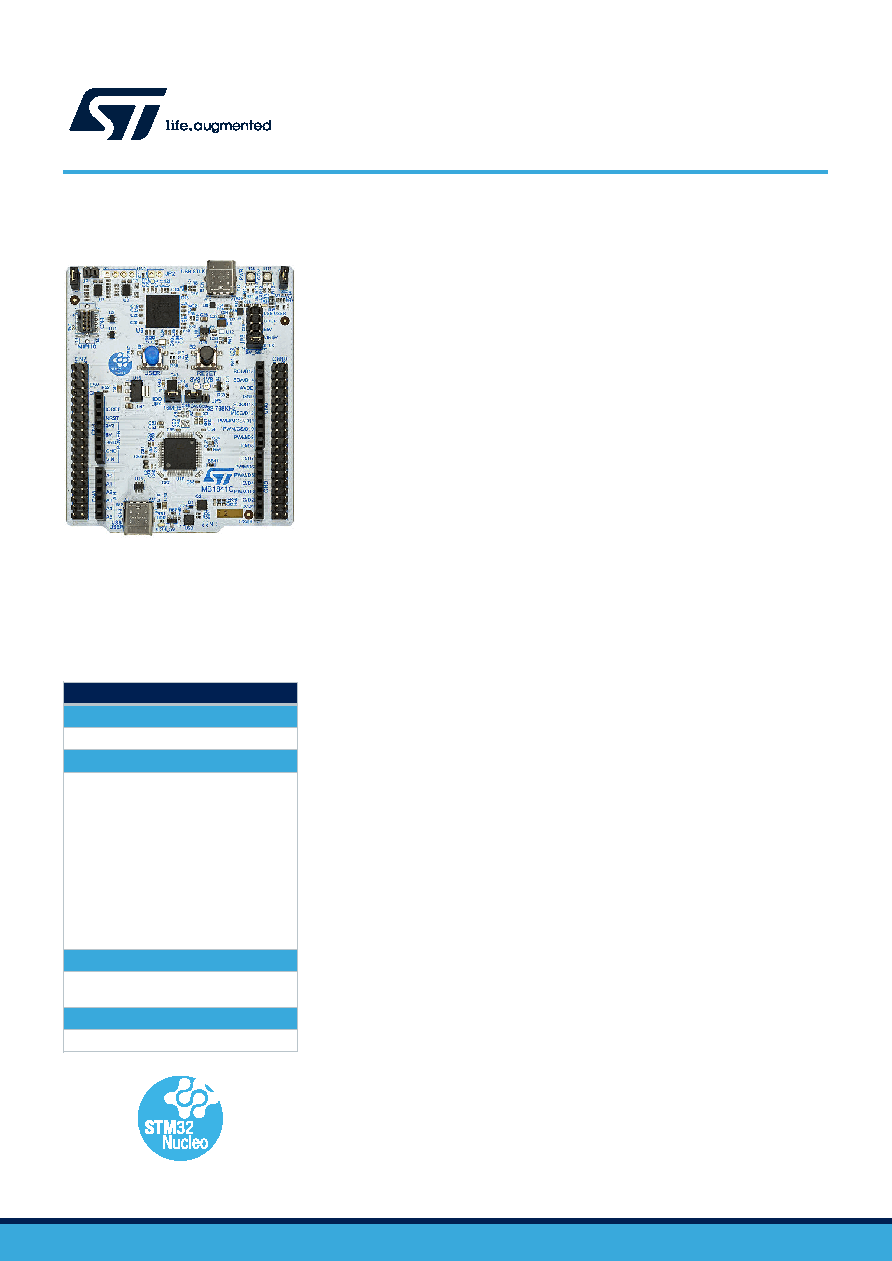

NUCLEO-U545RE-Q example. Boards

with different references show different

layouts. Picture is not contractual.

Product status link

NUCLEO-XXXXCX

NUCLEO-C031C6

NUCLEO-XXXXRX

NUCLEO-F030R8, NUCLEO-F070RB,

NUCLEO-F072RB, NUCLEO-F091RC,

NUCLEO-F103RB, NUCLEO-F302R8,

NUCLEO-F303RE, NUCLEO-F334R8,

NUCLEO-F401RE, NUCLEO-F410RB,

NUCLEO-F411RE, NUCLEO-F446RE,

NUCLEO-G070RB, NUCLEO-G071RB,

NUCLEO-G0B1RE, NUCLEO-G431RB,

NUCLEO-G474RE, NUCLEO-G491RE,

NUCLEO-H503RB, NUCLEO-L010RB,

NUCLEO-L053R8, NUCLEO-L073RZ,

NUCLEO-L152RE, NUCLEO-L452RE,

NUCLEO-L476RG

NUCLEO-XXXXRX-P

NUCLEO-L412RB-P, NUCLEO-L433RC-P,

NUCLEO-L452RE-P

NUCLEO-XXXXRX-Q

NUCLEO-U545RE-Q

STM32 Nucleo-64 boards

NUCLEO

‑XXXXCX NUCLEO‑XXXXRX

NUCLEO

‑XXXXRX‑P NUCLEO-XXXXRX-Q

Data brief

DB2196 - Rev 17 - February 2023

For further information contact your local STMicroelectronics sales office.

www.st.com
