R276, R277, R278, R279

Datasheet

0360EN  07/2021

2- or 3-way

ball zone valves

The zone valves are devices for intercepting the heating fluid which, driven by an actuator controlled by a thermostat, allow

for the subdivision of climate control systems in sectors which are similar from the point of view of room temperature control.

Zone valves may be of the 3-way type, with an adjustable by-pass, which must produce a loss of pressure comparable to

that of the system in order to avoid hydraulic failure in the distribution when the flow is deviated on the return to the boiler

room - or the 2-way type, which generally requires the installation of a pressure differential valve on the primary circuit, for

the protection of the boiler circulator.

The R276, R277, R278 and R279 zone valves integrated a ball which is specially shaped for the purpose, along with K270 or

K272 actuators for the control.

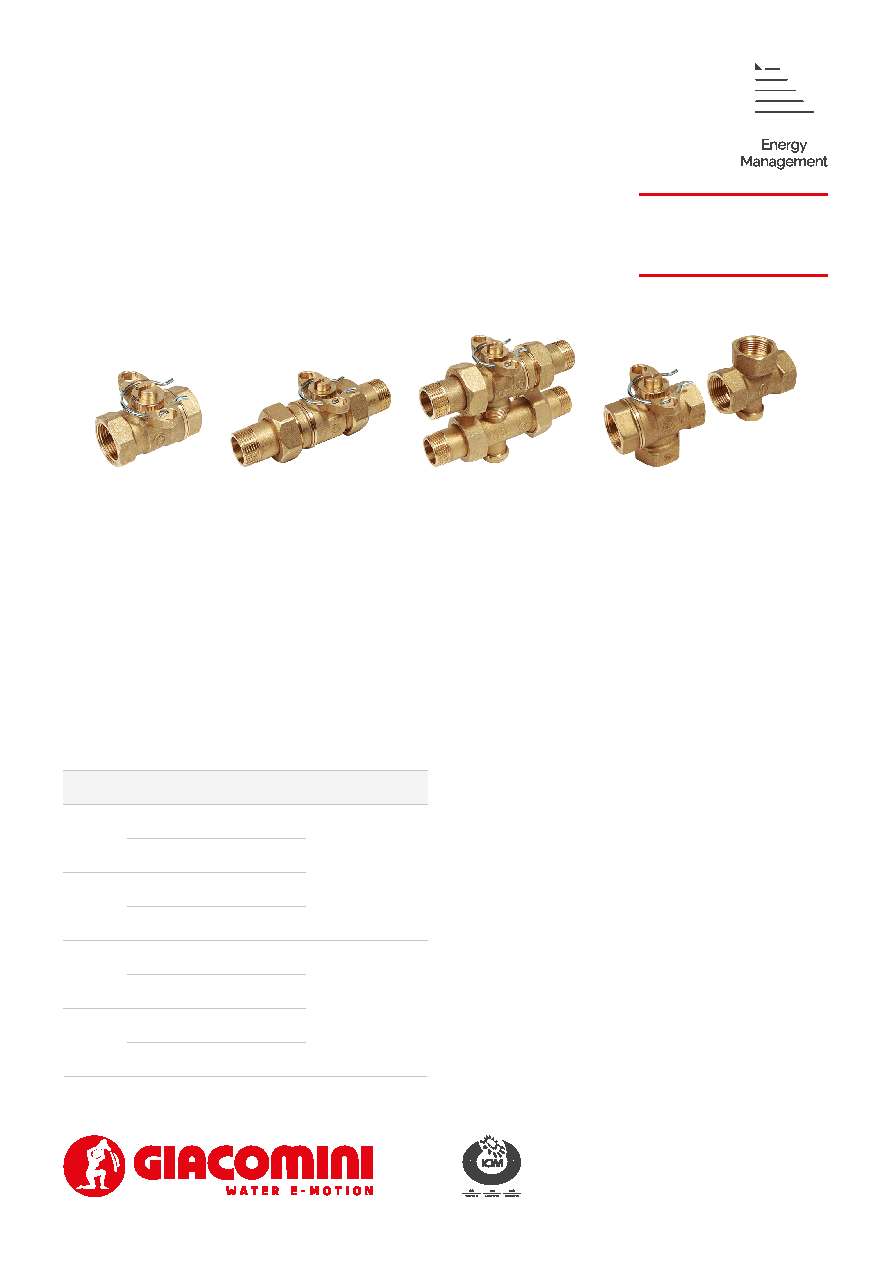

R276

R277

R278

R279

SERIES

PRODUCT CODE CONNECTIONS

TYPE

R276

R276Y004

G 3/4”F

2-way zone

ball valve

R276Y005

G 1”F

R277

R277Y004

G 3/4”M

R277Y025

G 1”M

R278

R278Y004

G 3/4”M

3-way zone

ball valve

R278Y005

G 1”M

R279

R279Y004

G 3/4”F

R279Y005

G 1”F



Versions and product codes

Accessories

• K270: 24 V or 230 V actuator, with stroke-end microswitch

• K272: 24 V or 230 V actuator, with stroke-end microswitch

and handwheel for manual operation

• R193K: eccentric pipe kit for the installation of R278 3-way

zone valve in combination with distribution manifold
