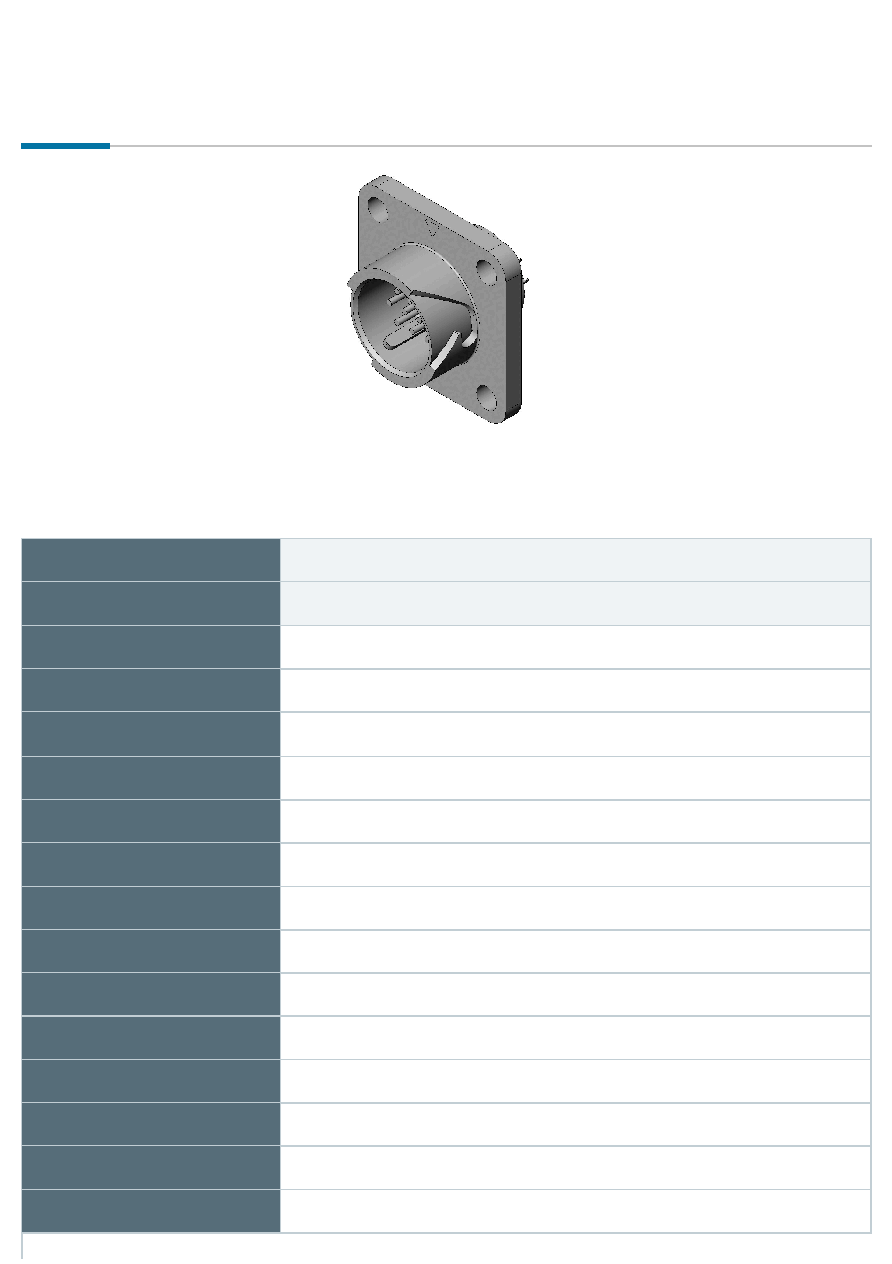

JN2AS10ML3-R

Features

Small circular connector, With construction having earth function, 10 pos., Panel mount receptacle

Part Number

JN2AS10ML3-R

Status

Active

Number of Positions

10 pos.

Rated Current

3A

Rated Voltage

Waterproof/ Non-waterproof

Waterproof (when mated)

Applications

Industrial equipment interface　　

Connector Type

Panel mount receptacle

Connector Style

Contact Type

Wire Termination Method

Soldering

Applicable Wire Size (AWG)

22 max.

Coupling Style

One-touch locking

Contact Size

#22

Shell Size

S

Contact Arrangement Code

Product Details
