cPCI-R6002 Series

6U CompactPCI Rear Transition Module with Rich I/O Interfaces

Features

●

Rear Transition Module for ADLINK cPCI-6940, cPCI-6930,

cPCI-6530, cPCI-6520, cPCI-6510, cPCI-6510, cPCI-6210

processor blades

●

Two onboard 7-pin SATA 3Gb/s connectors and one optional

onboard 2.5” SATA drive space

●

DVI-I output dependent on processor blade, convertible to

VGA by adapter

●

GbE, USB, COM interfaces on faceplate

●

Dual slot 8HP version available with additional I/O interfaces

New

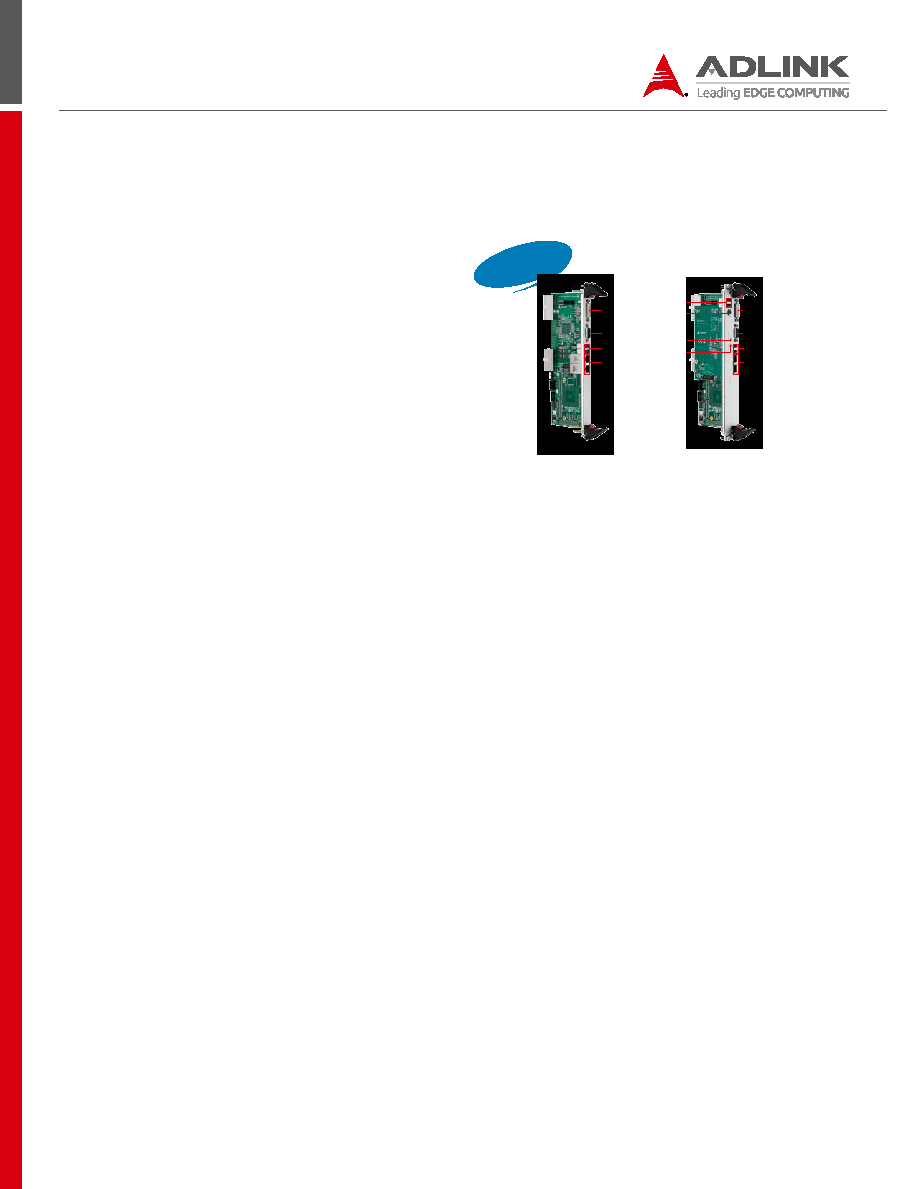

cPCI-R6002

cPCI-R6002D

Specifications

● Mechanical & Environmental

Form Factor

6U 4HP/8HP CompactPCI Rear Transition Module

233.35mm x 80mm

Equipped with CompatcPCI HM connectors J3, J4, J5

Operating Temperature

Standard Temperature: 0°C to 60°C

Storage Temperature

-40°C to 85°C

● Connectivity

Graphics

One DVI-I connector convertible to VGA by adapter

Ethernet

Two LAN ports on faceplate routed from processor board J3 switched from

PICMG 2.16

USB

1-slot: Two USB 2.0 ports on faceplate one onboard USB 2.0 by pin header for

expansion

2-slot: Two additional USB 2.0 ports on faceplate by layer 2 daughter board

Serial Port

One RS-232/422/485 by DB-9 on faceplate

One onboard COM box header supports TX/RX only

Audio

Mic-in/Line-out audio jack on faceplate supported by Realtek ALC262 HD

Audio codec (2-slot 8HP version only)

PS/2

One PS/2 keyboard/mouse on faceplate (2-slot 8HP version only)

PIM

Optional PIM support (contact your ADLINK representative for details)

● Storage

SATA

Two 7-pin SATA 3Gb/s signal connectors

One optional onboard 2.5” SATA 3Gb/s drive space by daughter board (2-slot

8HP version only)

● Compatibility

Processor Blades

cPCI-6940/cPCI-6930/cPCI-6530/cPCI-6520/cPCI-6510/cPCI-6210

Ordering Information

●

cPCI-R6002

1-slot (4HP) cPCI-R6002 with DVI, USB x2, GbE x2, COM x1,

2x SATA ports

●

cPCI-R6002D

2-slot (8HP) cPCI-R6002D with DVI, USB x4, GbE x2, COM x1,

audio, PS/2 KB/MS and 3x SATA ports

DVI

COM

USB x2

GbE x2

DVI

USB x2

KB/MS

LINE-OUT

MIC-IN

COM

USB x2

GbE x2
