cPCI-R6100 Series

6U CompactPCI® Rear Transition Module with Intel® Ethernet Controller I350-AM2

Features

●

Intel® Ethernet Controller I350-AM2

●

Up to four Ethernet GbE ports

●

Dual display, DVI and VGA

●

CompactFlash and SD card slots for onboard storage

●

Up to two 2.5" SATA drive on cPCI-R6120

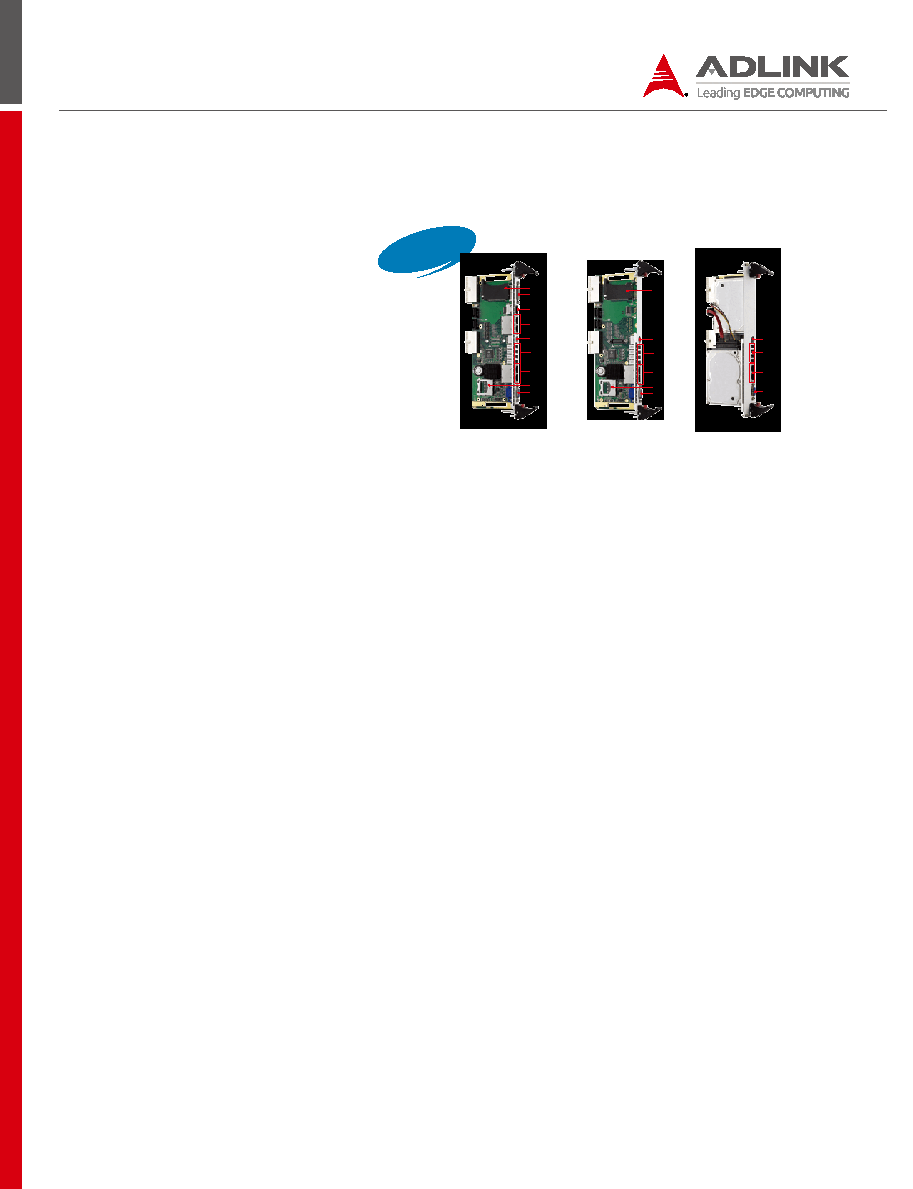

New

cPCI-R6120

KB/MS

USB x4

GbE x2

VGA

cPCI-R6100

cPCI-R6110

CF

DVI-D

COM

GbE x2

GbE x2

SD

VGA

USB x4

PS/2 KB/MS

GbE x2

USB x4

VGA

PS/2 KB/MS

CF

SD

Specifications

● Processor & System

Standards

PICMG 2.0 CompactPCI R3.0

PICMG 2.16 Packet Switch Backplane R1.0

Display

One DVI-D and one VGA on rear panel

Ethernet

Two routed from processor blade via J3 provided by PICMG 2.16

Two supported by Intel® Ethernet Controller I350-AM2

Up to four Ethernet GbE ports on rear panel

USB

Up to four USB 2.0 ports on rear panel

Serial Port

One RS-232/422/485 RJ-45 port on rear panel

PS/2

One 10-pin keyboard mouse box header

● Storage

SATA

Two 7-pin SATA signal connectors, one for onboard 2.5” SATA drive

connectivity

One CompactFlash converted from USB

One SD card slot

One onboard 2.5” SATA port cPCI-R6110

Space for up to 2x 2.5” SATA drives on cPCI-R6120

● Mechanical & Environmental

Form Factor

6U 4HP/8HP CompactPCI Rear Transition Module

233.35mm x 80mm

Operating Temperature

0°C to 60°C

Storage Temperature: -40°C to 85°C

Certification

CE/FCC

Ordering Information

●

cPCI-R6100

4HP Rear I/O module with GbEx4, COM, 4x USB, 2x SATA, DVI,

VGA, PS/2, CF, SD

●

cPCI-R6110

4HP Rear I/O module with GbEx2, 4x USB, 3x SATA, VGA, PS/2,

SD, CF

●

cPCI-R6120

8HP Rear I/O module with GbEx2, 4x USB, 2x SATA, VGA, PS/2,

CF, SD with space for two SATA drives
