Product Information • SCL-RHYTHM • M.2 NVMe & Quad M12 Gigabit Ethernet

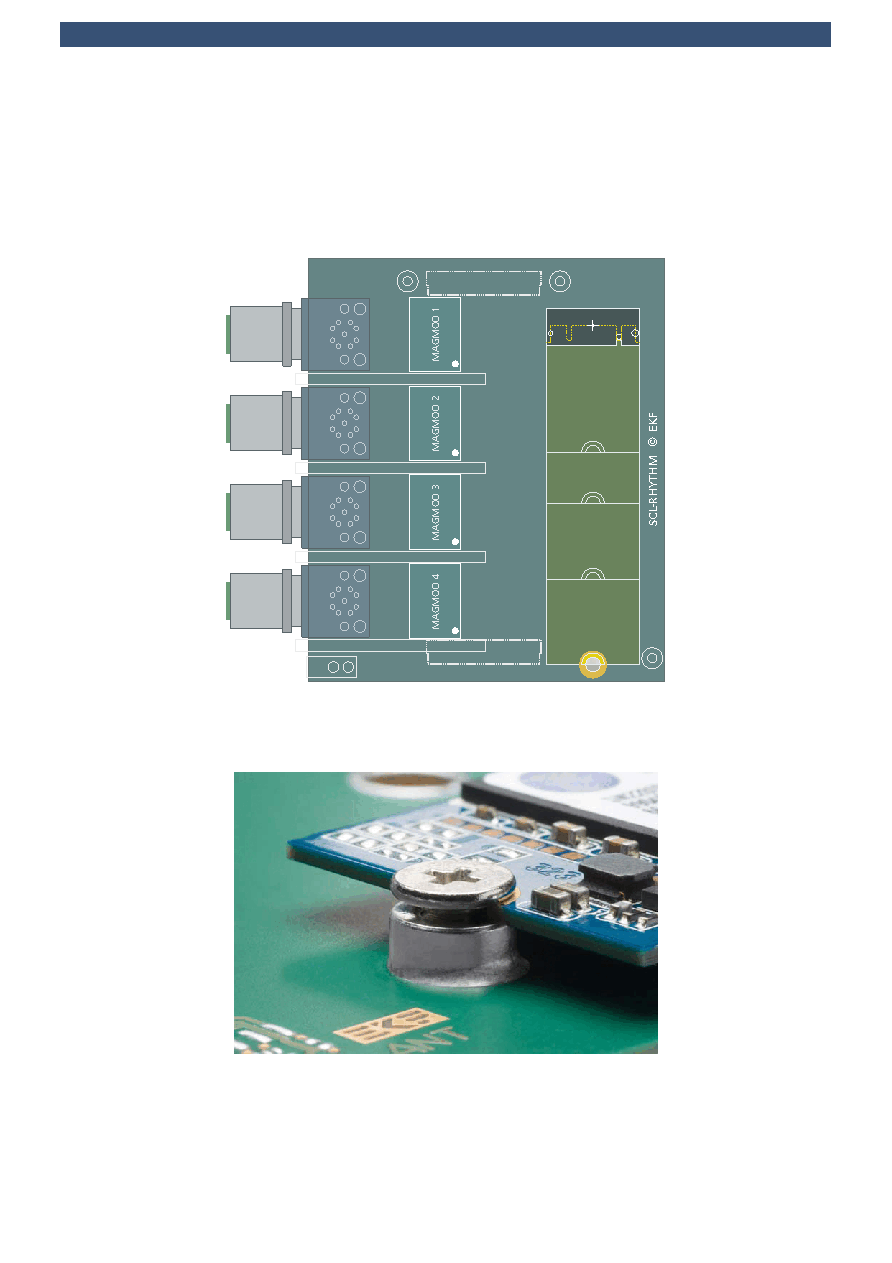

M.2 Module Fixation (Picture Similar)

PCIe x4 M.2

2230

2260

2280

2242

M

M.2

PCIe x4

NVMe

HSE1

HSE2

M.2 Connector

The SCL-RHYTHM is provided with an M.2 NVMe module host connector (M-key). After inserted, the

M.2 module must be locked manually by a screw, in order to withstand shock and vibration.
