Controller-Less Network Virtualization

As networks grow more flexible and agile, enterprises are turning to

network virtualization in the data center to increase cost

effectiveness and gain a competitive edge. Network Director

completely automates the creation and management of overlay

fabrics on top of Layer 3 IP fabrics (underlay networks) utilizing an

Ethernet VPN (EVPN) control plane and VXLAN-based overlay

topology. The process follows a simple workflow that includes:

• Defining and mapping tenants to VRFs and VXLANs

• Defining tenant segments and mapping those segments to

VLANs and VXLAN associations

• Multihoming server settings

• Associating gateways for tenants

• Providing full visibility into each tenant and overlay network, as

well as correlated views of overlay and underlay networks

Multipoint Navigation and Views

Network Director improves operational efficiency by allowing users

to manage the network from different views, groupings, and

perspectives. It includes a customizable dashboard that provides a

visual indication of overall network usage and network consumers,

including VMs, hosts, top virtual networks, flow analysis, utilization,

latency, top talkers, and alarms—all presented as part of a color-

coded heat map representing devices and ports. Each device is

color coded to convey the level of port utilization and latency;

“cooler” colors indicate lower port utilization and latency while

“hotter” colors indicate higher port utilization and latency (see

Figure 6).

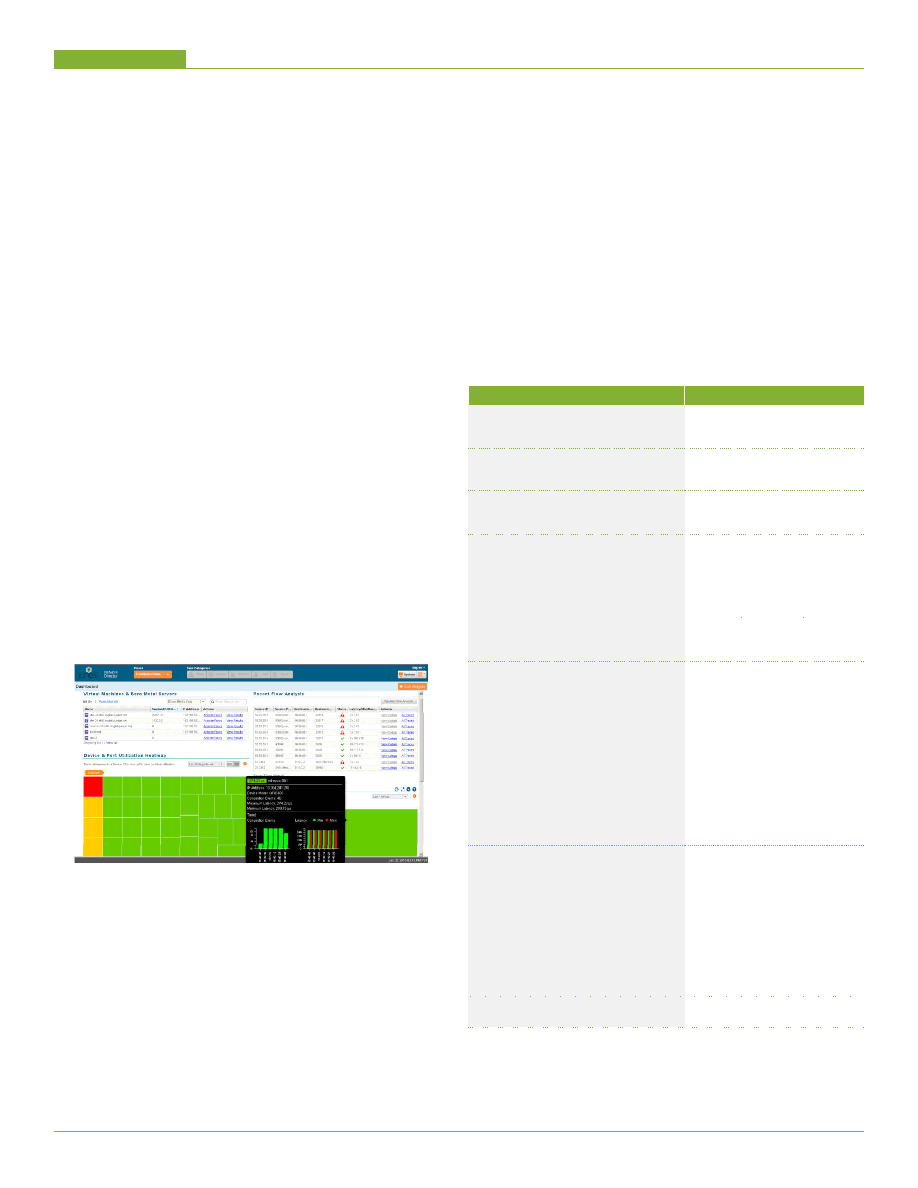

Figure 6: Dashboard view

In addition, Network Director Topology view shows all discovered

devices in the network on a map where the devices are located

across sites, buildings, floors, closets, and racks, along with their

physical connections to other devices in the network. Topology

view also shows the physical and logical connectivity between

various discovered interconnected devices. Topology view allows

users to zoom in or out of a site, see how a device is connected to

its immediate neighbors, including VMware hosts connected to the

switch, or view alarm details, bandwidth of links, and real-time link

data and state of the devices. Network Director also enables

devices to be rearranged across buildings on the map.

Specifications

Network View and Device Selection

• View devices grouped by logical relationships, locations, device

type, custom group view, data center view, or topology view

• Select logical, location, device-type, custom group, virtual, or

topology view groupings to perform tasks on multiple devices

simultaneously

• Search for devices in the network

• Define filters to selectively view specific logical, location,

device-type, custom group, virtual, or topology groupings

Table 1. Supported Platforms

Supported Platforms

Operating System

QFX Series Ethernet Switches

QFX5100 Virtual Chassis Fabric

Junos OS releases 13.2X51-D20,

14.1X53-D15, 14.1X53-D27, 14.1X53-

D40

QFX10008

Junos OS releases 15.1X53-D30,

15.1X53-D33, 15.1X53-D60, 15.1X53-

D61, 15.1X53-D64

QFX10002-36Q-DC

QFX10002-72Q-DC

Junos OS releases 15.1X53-D61,

15.1X53-D64, 17.2R1

QFX5200-32C-AFI

QFX5200-32C-AFO

QFX5200-32C-DC-AFI

QFX5200-32C-DC-AFO

Junos OS releases 15.1X53-D30,

15.1X53-D230

QFX5110-32Q

QFX5110-48S

Junos OS releases 17.2R2.8, 17.3R1.10,

17.4R1.16, 18.1R3.3

QFX5100-48S-3AFI

QFX5100-24Q-3AFI

QFX5100-24Q-3AFO

QFX5100-24Q-D-3AFI

QFX5100-24Q-D-3AFO

QFX5100-48T-AFI

QFX5100-48T-AFO

QFX5100-48T-DC-AFI

QFX5100-48T-DC-AFO

Junos OS releases 14.1X53-D35,

14.1X53-D40, and 14.1X53-D42

QFX10002 as IP Fabric Spine device

QFX5100 as IP Fabric Spine or Leaf device

EX4300 as IP Fabric Leaf device

Junos OS releases 15.1X53-D60,

15.1X53-D61, 15.1X53-D64, and

17.2R1 for QFX10002

Junos OS releases 14.1X53-D35,

14.1X53-D40, and 14.1X53-D42 for

QFX5100

Junos OS releases 14.1X53-D27,

14.1X53-D40, and 14.1X53-D42 for

EX4300

QFX3500/QFX3600 with non ELS

Junos OS releases 12.3X50-D35 and

12.3X50-D40

Junos Space Network Director

4
