ES-279 Ethernet 8 Port RS232

Box Information

LED Information

Status LED

Green

Device Ready

Flashing Yellow

Changing Settings

Flashing between Red & Green

Querying IP

Flashing Green/Red

User performing Hard Reset

Flashing between Green & Red/Yellow

IP address diagnostic

Flashing between Green & Yellow

Initialization diagnostic

Serial Port LEDs

Green light on

Port Open

Flashing Green

Data RX / TX

Network LED

Green light on

Link Established

Flashing Green

Data RX / TX

Port

Ports

8 port RS232

Connector

DB9 Connector - 9 Pin Male

Power Input

5 - 30V DC input, reverse polarity protected

Power Consumption

1.93W Typical

ETHERNET TO SERIAL

ES-279 8xRS232

NETWORK

STATUS

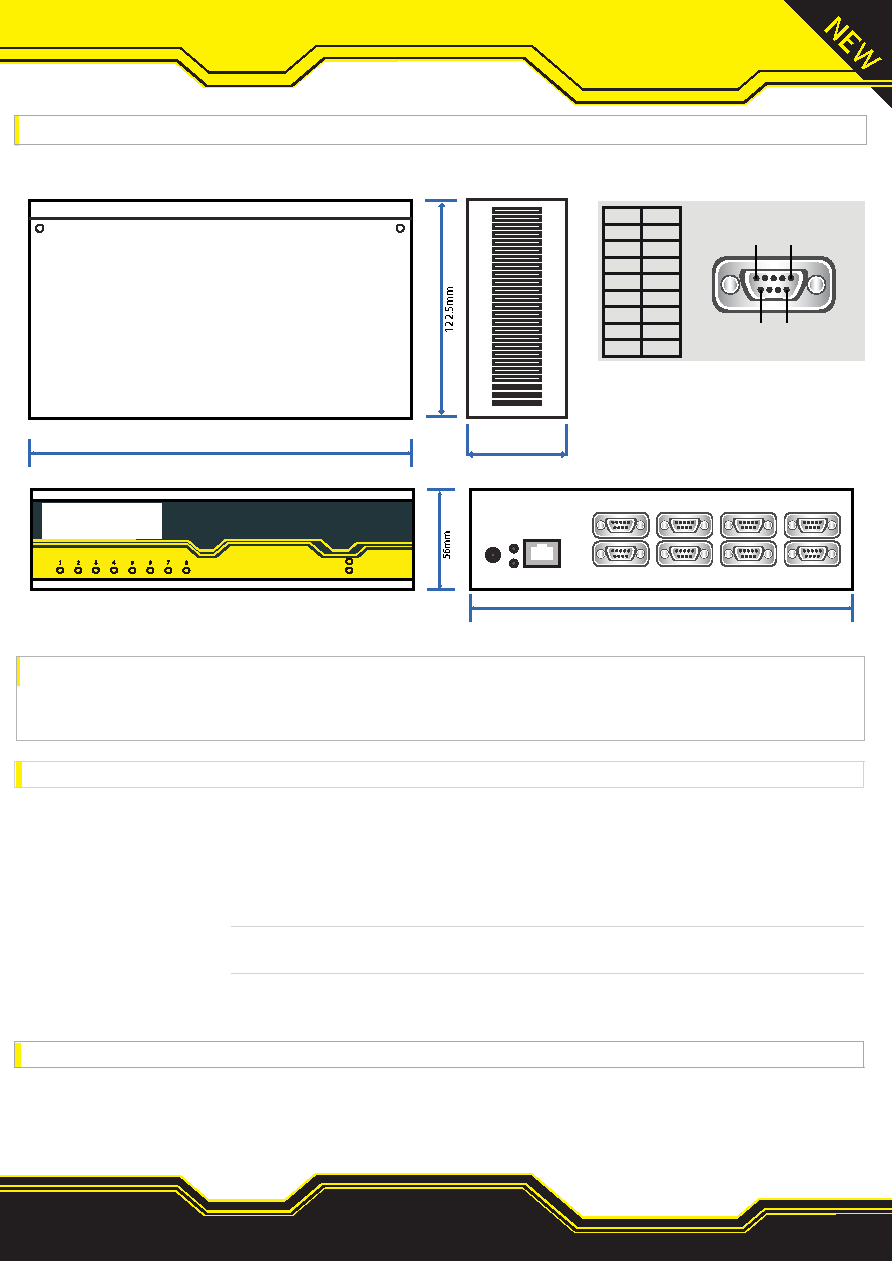

Box

Size - 122.5 x 215.0 x 56.0 mm

Weight - 0.870 kg

IP-30 rated case

215mm

56mm

Side

Top

Front

Back

Pinout

Pin 1

Pin 5

Pin 6

Pin 9

Pin 1 DCD

Pin 2 RXD

Pin 3 TXD

Pin 4 DTR

Pin 5 GND

Pin 6 DSR

Pin 7 RTS

Pin 8 CTS

Pin 9 RI

RS232 Pinout (9 Pin Male)

215mm
