Performance Data

Welwyn Components

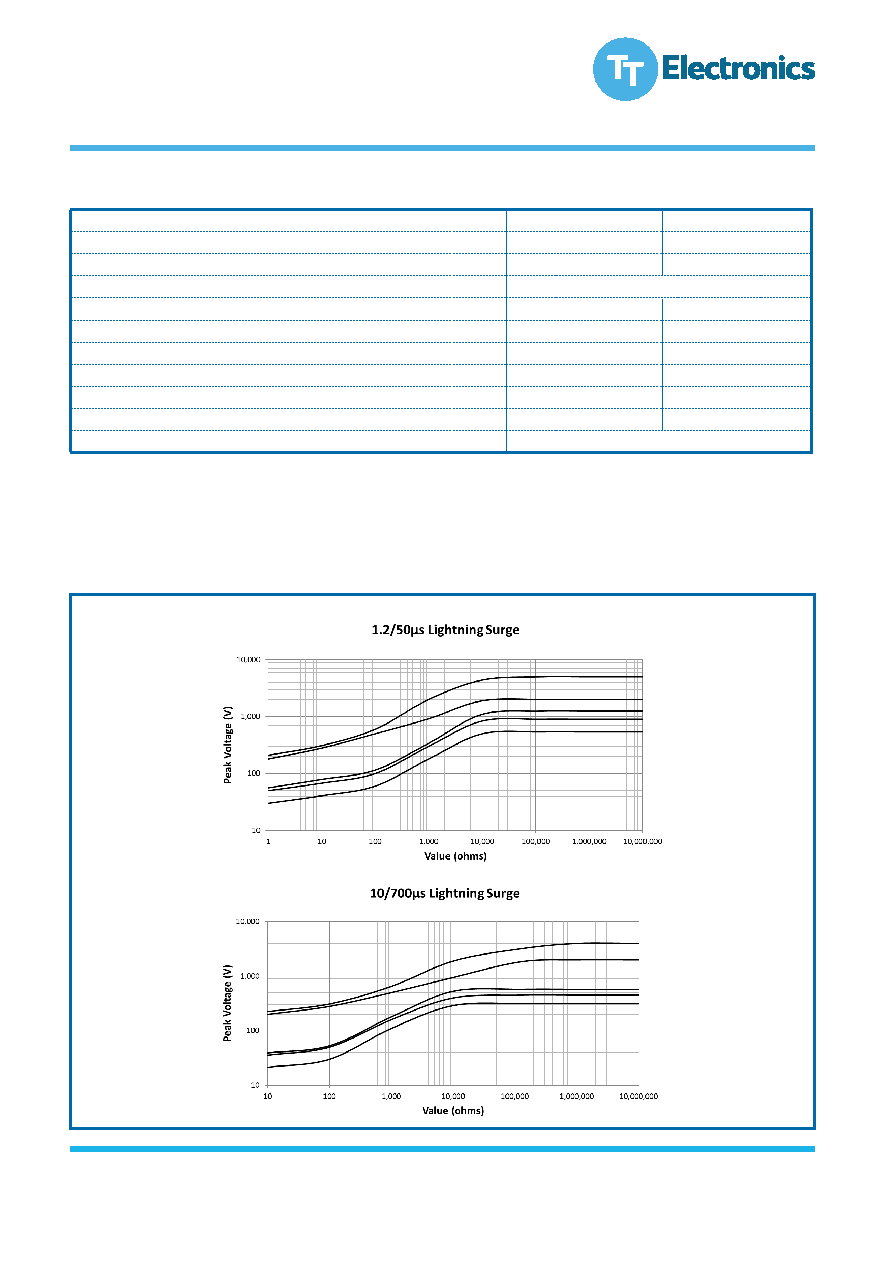

Pulse Performance Data

Lightning Surge

Lightning surge resistors are tested in

accordance with IEC 60 115-1 using

both 1.2/50µs and 10/700µs pulse shapes.

10 pulses are applied. The limit of

acceptance is a shift in resistance of less

than 1% from the initial value.

Size

Maximum

Typical

Load at rated power: 1000 hours at 70°C

ΔR%

1

0.25

Shelf life test: 12 months at room temperature

ΔR%

0.1

0.02

Derating from rated power at 70°C

Zero at 155°C

Overload: 6.25 x rated power for 2 seconds

ΔR%

1

0.1

Dry heat: 1000 hours at 155°C

ΔR%

1

0.2

Long term damp heat

ΔR%

1

0.25

Temperature rapid change

ΔR%

0.25

0.05

Resistance to solder heat

ΔR%

0.25

0.05

Resistance to sulphur-bearing gas (AS version only): ASTM-B-809

0.25

0.05

Voltage proof

Volts

500

Note: A 0.01 Ohm addition to be added to the performance of all resistors <10 Ohms.

Pulse Performance Data

Lightning Surge

Lightning surge resistors are tested in accordance with IEC 60 115-1 using both 1.2/50µs and 10/700µs pulse shapes. 10 pulses are applied. The limit of

acceptance is a shift in resistance of less than 1% from the initial value.

2512

2010

1206

0805

0603

2512

2010

1206

0805

0603
