5 Parameter Measurement Information

A.

CL includes probe and test-fixture capacitance.

B.

Phase relationships between waveforms were chosen arbitrarily. All input pulses are supplied by generators having the following

characteristics: PRR ≤ 1 MHz, ZO = 50 Ω, tr = 6 ns, tf = 6 ns.

C.

For clock inputs, fmax is measured when the input duty cycle is 50%.

D.

The outputs are measured one at a time with one input transition per measurement.

E.

tPLH and tPHL are the same as tpd.

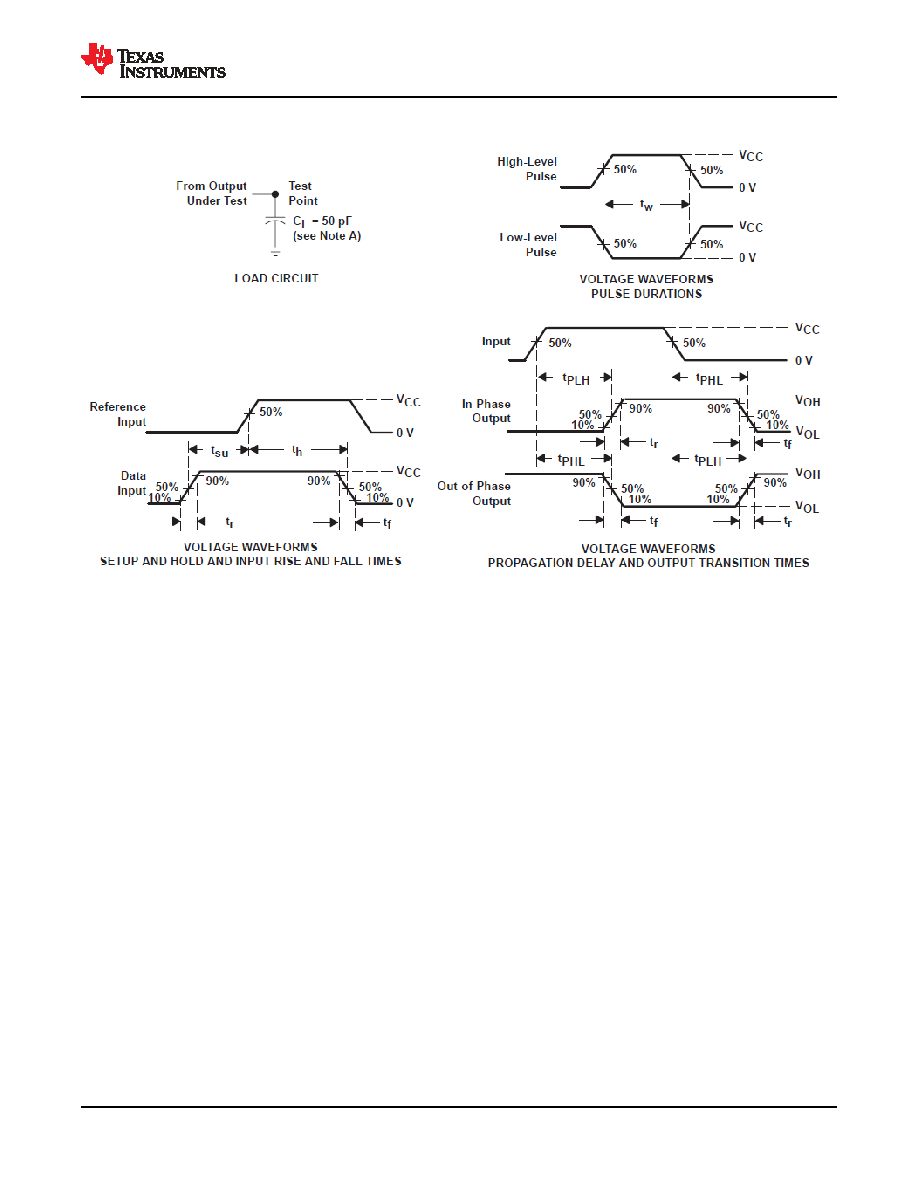

Figure 5-1. Load Circuit and Voltage Waveforms
