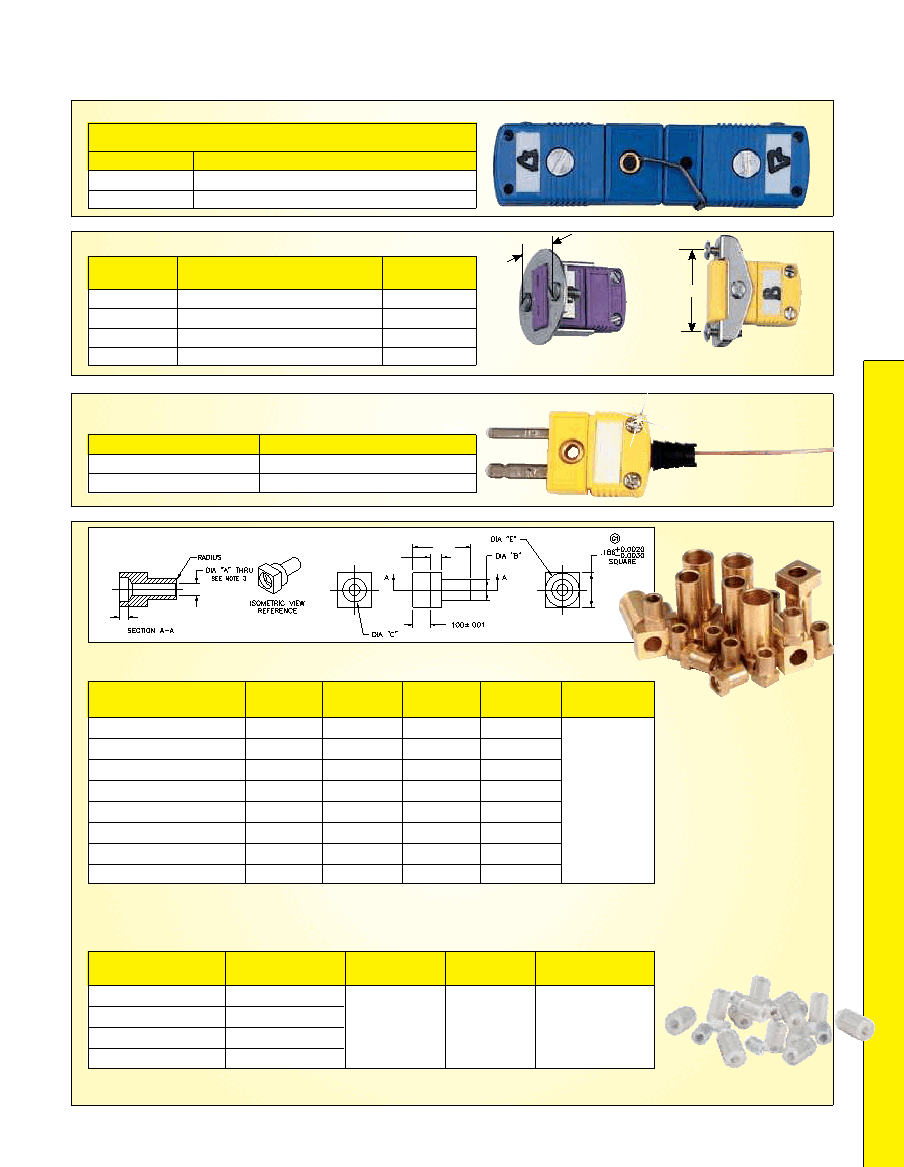

G-34

G

Connector Accessories

For Miniature Size Connectors

Panel Mounting Bracket (Standard and Round Hole)

Wire Hole Reducer–For Smaller Gauge Wires

SMPW Connectors

SMACL panel

mounting bracket.

SRMACL round hole

panel mounting bracket.

“A”

Model No.

Compatible Connectors

Dimension

SMACL

SMPW, GMP, HMPW, HGMP

0.88"

MACL

NMP

0.88"

SRMACL

SMPW, GMP, HMPW, HGMP

0.67"

RMACL

NMP

0.67"

Safety Clip

To Order

Visit

newportUS.com/CTRAMIN for Pricing and

Details

Model No.

Compatible Connectors

SMCL

SMPW, GMP, HMPW, HGMP

FMCL

FMP, FMPW, HFMP, HFMPW

Model No. Pkg of 20

Reduced Hole Opening

RB-SMP-100

2.54 (0.100") Dia.

RB-SMP-140

3.55 (0.140") Dia.

(*) Insert “B” for brass or

“S” for stainless steel

(**) Insert quantity: “10”

or “100.” “CR” number

indicates compatible

probe diameter.

To order crimping tool for

use with these bushings,

specify model number

BB-SMT-CT.

Crimp Style Bushing

Safety clip SMCL

RB-SMP-100 wire

hole reducers shown

with SMPW-K-M

Covered by U.S. and

International patents and

pending applications.

PATENTED

Clamp Grommets Silicone 0.25" long

Shown with GMP-T-MF

A

A

Dia A-ID

Dia B-OD

Dia C

Dia E

Compatible

Model Number

mm (in)

mm (in)

mm (in)

mm (in)

Connectors

(*)B-SMP-CR020-(**)

0.56(0.022) 2.95 (0.116) 3.25 (0.128) 4.72 (0.186)

(*)B-SMP-CR032-(**)

0.89 (0.035) 2.95 (0.116) 3.25 (0.128) 4.72 (0.186)

(*)B-SMP-CR040-(**)

1.09 (0.043) 2.95 (0.116) 3.25 (0.128) 4.72 (0.186)

(*)B-SMP-CR1.5MM-(**) 1.57 (0.062) 2.95 (0.116) 3.25 (0.128) 4.72 (0.186)

(*)B-SMP-CR062-(**)

1.65 (0.065) 2.95 (0.116) 3.25 (0.128) 4.72 (0.186)

(*)B-SMP-CR093-(**)

2.44 (0.096) 4.72 (0.186) 3.96 (0.156)

N/A

(*)B-SMP-CR3.0mm-(**) 3.10 (0.122) 4.72 (0.186) 3.96 (0.156)

N/A

(*)B-SMP-CR125-(**)

3.25 (0.128) 4.72 (0.186) 3.96 (0.156)

N/A

SHX, NMP,

MTP, GMP,

SMP, SMPW,

FMPW

* Insert pkg quantity: select from packages of 5, 10, 50, 100.

Center number denotes grommet inside diameter for 0.75" long strain relief tubing, visit

newportUS.com

Inside

Outside

Compatible

Model No.

Diameter

Diameter

Length

Connectors

SSRT-CC-018-(*)

3.18 (0.125)

SSRT-CC-332-(*)

2.38 (0.094)

4.77

6.35

OSTW

SSRT-CC-116-(*)

1.59 (0.063)

(0.188)

(0.250)

male or

SSRT-CC-132-(*)

0.79 (0.032)

female

Ordering Example: SB-SMP-CR040-100, pkg of 100 crimp style stainless steel bushing for

0.043 Dia. probe.

1.575

(0.062)

7.92

(0.312)

1.27

(0.050)

Dimensions: mm (inch)
