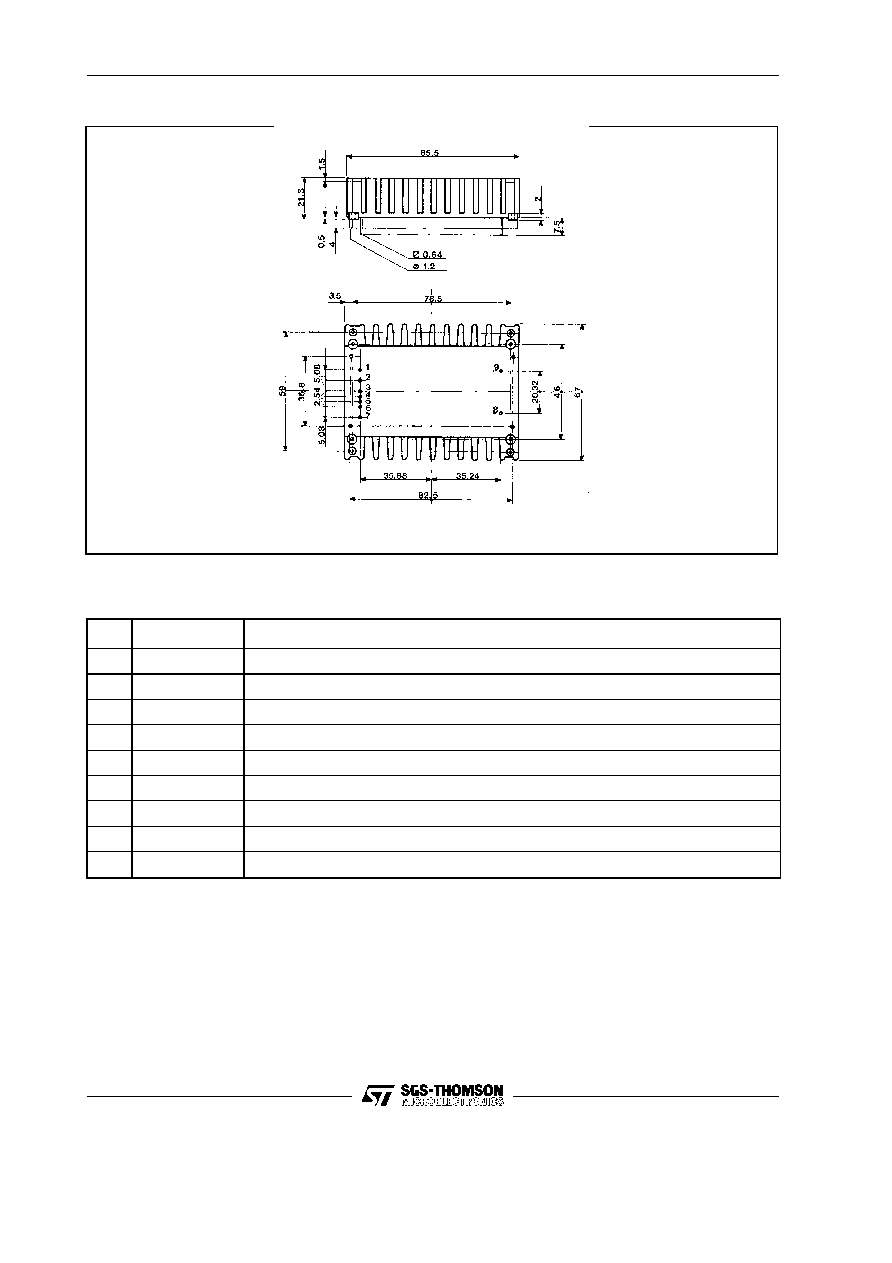

CONNECTION DIAGRAM AND MECHANICAL DATA

Dimensions in mm

Bottom view

PIN DESCRIPTION

Pin

Function

Description

1

Output 1

Regulated 5.1V output.

2

Output GND

Return for output1 current path. Internally connected to pin 8.

3

Output 2

Regulated 12V output.

4

Ground 2

Return of output 3 current path.

5

Output 3

Regulated 12V output.

6

Ground 3

Return of output 3 current path.

7

Reset

Open collector Reset output.

8

Input GND

Return of input voltage source. Internally connected to pin 2.

9

+ Input

DC input voltage. Recommended maximum voltage is 40V.
