Carlo Gavazzi Ltd.

RGC2, RGC3

RGC2, RGC3 DS ENG

05/10/20

RGC2..10, RGC2..25, RGC2..40

RGC3..10, RGC3..20,

RGC3..25, RGC3..30

RGC2..25..DM, RGC2..40..DM

RGC3..20..DM, RGC3..25..DM,

RGC3..30..DM

RGC2..25..AM, RGC2..40..AM

RGC3..20..AM, RGC3..25..AM,

RGC3..30..AM

RGC2..75..DF

RGC3..40..DF, RGC3..65..DF

RGC2..75..AF

RGC3..40..AF, RGC3..65..AF

RGC2..75..DFM

RGC3..65..DFM

RGC2..75..AFM

RGC3..65..AFM

Terminals labelling:

1/L1, 2/L2, 3/L3: Mains connections

2/T1, 4/T2, 6/T3: Load connections

A1 (+):

Positive control signal

A2 (-):

Control ground

Us (+):

External supply positive signal

Us (-):

External supply ground

Us (~):

AC external supply

Uf (+):

Fan supply positive signal

(no connection required by

end user)

Uf (-):

Fan supply ground

(no connection required by

end user)

12:

Alarm EMR, normally closed

14:

Alarm EMR, normally open

11:

Alarm EMR, common terminal

22:

Auxiliary output, normally

closed

24:

Auxiliary output, normally

open

21:

Auxiliary output, common

terminal

Connections to Uf+, Uf- are provided readily termi-

nated by manufacturer. However, in case of need-

ed user intervention on terminals Uf+, Uf- for the

RGC..A..AF and RGC..A..AFM models, the mains

supply has to be turned off first to avoid risk of elec-

trical shock.

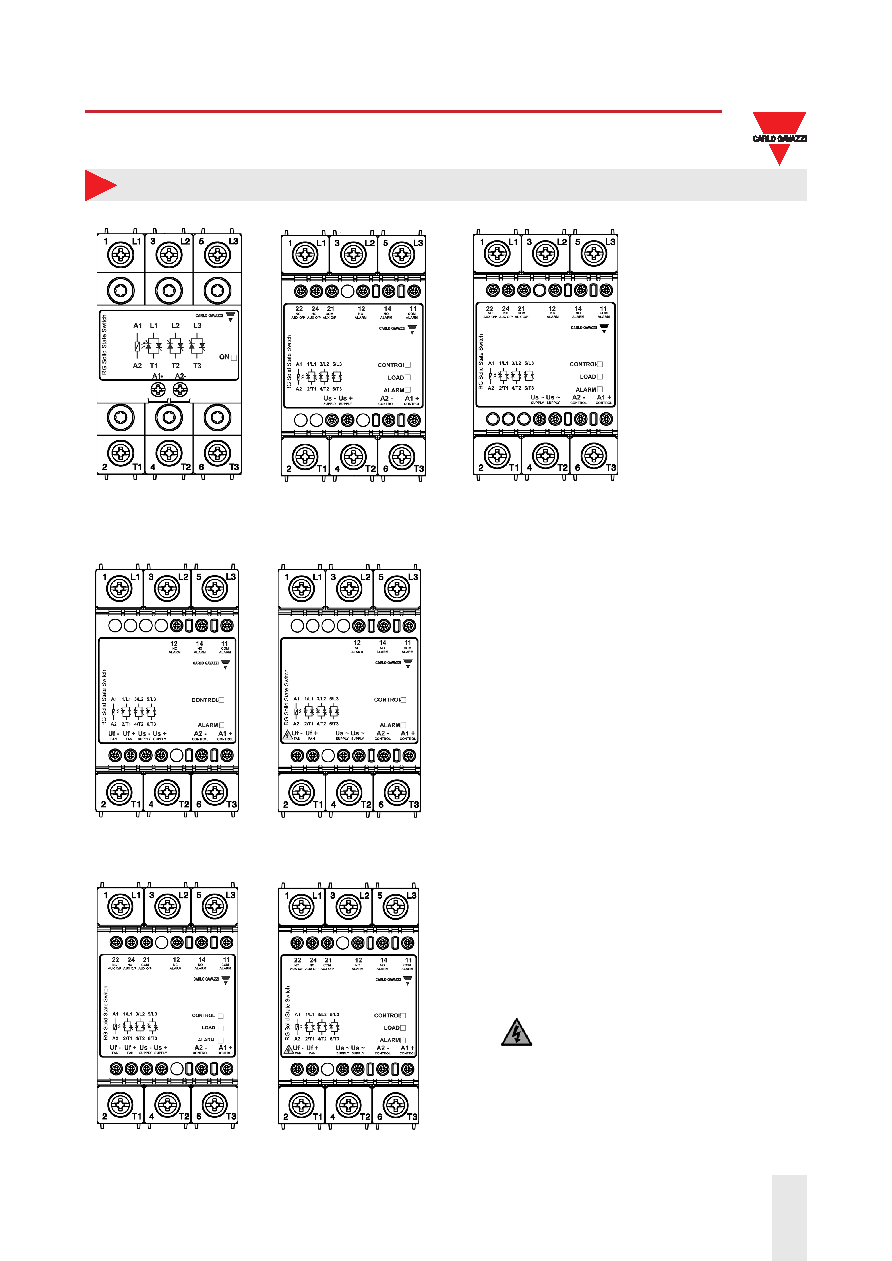

Terminal layout
